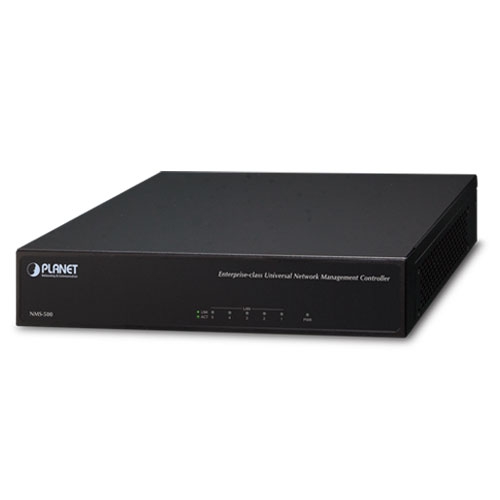

Enterprise-class Universal Network Management Controller NMS-500 Controller

Genuine Product Fast Delivery Easy Returns

Key Features

Centralized Network Management: Manage multiple devices from a single interface, including PLANET devices, with the NMS-500.

Real-time Monitoring: Get real-time updates on device status, online/offline devices, and system events with the NMS-500.

Wireless Network Management: Configure and manage multiple wireless profiles, including SSID-to-VLAN mapping, with the NMS-500.

Bulk Provisioning and Firmware Upgrade: Efficiently provision and upgrade multiple APs with user-defined profiles using the NMS-500.

Secure Management Interfaces: Ensure secure management with TLS 1.2, SSLv3, and SNMPv3 support on the NMS-500.

Comprehensive Network Services: Enjoy comprehensive network services, including DDNS, DHCP, and web-based management, with the NMS-500.

Advanced Diagnostic Tools: Perform IPv4/IPv6 ping and trace route diagnostics with the NMS-500.

Scalable and Reliable: Support up to 512 managed devices, 512 RADIUS client devices, and 10,000 RADIUS user accounts with the NMS-500.

Easy Configuration and Management: Configure and manage devices with ease using the NMS-500's user-friendly interface.

Compliance and Standards: Meet regulatory compliance and standards, including CE, FCC, and IEEE 802.3, with the NMS-500.

Rugged and Reliable Enclosure: Enjoy a rugged and reliable metal enclosure that withstands various environmental conditions with the NMS-500.

Power Efficiency: Enjoy power efficiency with a 60W adapter and 12V 5A DC jack on the NMS-500.

Specification

Platform	Desktop
Form Factor	Desktop
Processor	Intel Celeron N3350 up to 2.6 GHz
Memory	2GB SDRAM, DDR3L-1866, 256M*16bit
Physical Specifications	I/O Interface: Five10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X, 2 USB 3.0 ports, 1 RS232-to-RJ45 console port, 1 DC jack power input, 1 power switch, 1 reset button, Storage: 8GB EMMC5.1, 15nm/2 eMLC
Dimensions (W x D x H)	232 x 152 x 44 mm
Weight	1.15 kg
Enclosure	Metal
Power Requirements	60W adapter 12V 5A with DC jack, AC 100~240V, 3~1.5A, 60~50Hz.
Temperature	Operating: 0 ~ 40 degrees C, Storage: -20 ~ 75 degrees C
Humidity	10 ~ 85% relative humidity (non-condensing)
MTBF (Hours)	120,000
Number of Managed Devices	512
Number of RADIUS Client Devices	512
Number of RADIUS User Accounts	10,000
Auto Discovery	Supports PLANET devices
Dashboard	Summarized system overview includes online device numbers, activated client numbers
Device List	Allows creation and maintenance of device profiles
Autp-Topology View	Provides visual topology view of connected PLANET devices
Status Monitoring	Real-time online/offline devices
Event and Syslog Report	Real-time system event and syslog server supported
Event Alarm Define	Allows event alarm item option
SMTP Alarm	E-mail alert to the administrator via the SMTP server
SSID/RF Profile	Allows creation and maintenance of multiple wireless profiles
Cluster Management	Allows AP grouping for bulk provisioning and batch upgrading
Bulk AP Provisioning	Supports bulk AP provisioning with user-defined profiles
Bulk AP Firmware Upgrade	Supports bulk AP firmware upgrade
Coverage Heat Map	Enables real signal coverage of managed AP reflecting on the uploaded zone maps
Graphical Statistics	Real-time and historical visibility of wireless traffic flow
Backup/Restoration	Provides system and profile backup/restoration
SSIDs-to-VLANs Mapping	Allows to configure SSIDs-to-VLANs mapping in supported APs
RADIUS Authentication	RADIUS server is integrated for client authentication in a large-scale enterprise network
User Account Management	Supports on-demand account creation per user-defined access policy
Secure Management Interfaces	TLS 1.2 w/ UNC-NMS, SSLv3, SNMPv3
Network Services	Network: DDNS, DHCP, Management: Console, Telnet, SSL, Web browser, SNMP v1, v2c, v3, Discovery: SNMP, ONVIF and PLANET Smart Discovery
Maintenance	Backup: System backup and restore to local or USB HDD, Reboot: Provides system reboot manually or automatically per power schedule, Diagnostic: Provides IPv4/IPv6 ping and trace route
Regulatory Compliance	CE, FCC
Standards Compliance	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3x Flow control and back pressure, IEEE 802.3z Flow control with Rx thresholds and Tx pause frames, IEEE 802.3az (EEE)

Description

Enterprise-class Universal Network Management Controller NMS-500 Controller

Key Features & Benefits:

Centralized Network Management: Manage multiple devices from a single interface, including PLANET devices, with the NMS-500.
Real-time Monitoring: Get real-time updates on device status, online/offline devices, and system events with the NMS-500.
Wireless Network Management: Configure and manage multiple wireless profiles, including SSID-to-VLAN mapping, with the NMS-500.
Bulk Provisioning and Firmware Upgrade: Efficiently provision and upgrade multiple APs with user-defined profiles using the NMS-500.
Secure Management Interfaces: Ensure secure management with TLS 1.2, SSLv3, and SNMPv3 support on the NMS-500.
Comprehensive Network Services: Enjoy comprehensive network services, including DDNS, DHCP, and web-based management, with the NMS-500.
Advanced Diagnostic Tools: Perform IPv4/IPv6 ping and trace route diagnostics with the NMS-500.
Scalable and Reliable: Support up to 512 managed devices, 512 RADIUS client devices, and 10,000 RADIUS user accounts with the NMS-500.
Easy Configuration and Management: Configure and manage devices with ease using the NMS-500's user-friendly interface.
Compliance and Standards: Meet regulatory compliance and standards, including CE, FCC, and IEEE 802.3, with the NMS-500.
Rugged and Reliable Enclosure: Enjoy a rugged and reliable metal enclosure that withstands various environmental conditions with the NMS-500.
Power Efficiency: Enjoy power efficiency with a 60W adapter and 12V 5A DC jack on the NMS-500.

Ideal For:

Large-scale enterprises
Managed service providers
Network administrators
IT managers
System integrators
Network engineers
Data center administrators

Summary:

The NMS-500 is an enterprise-class universal network management controller designed for large-scale enterprises, managed service providers, and network administrators. With its centralized network management, real-time monitoring, and wireless network management features, the NMS-500 ensures efficient and secure network operations. Its comprehensive network services, advanced diagnostic tools, and scalable and reliable design make it an ideal solution for complex network environments. The NMS-500 is available at Revolution Technology BD.
