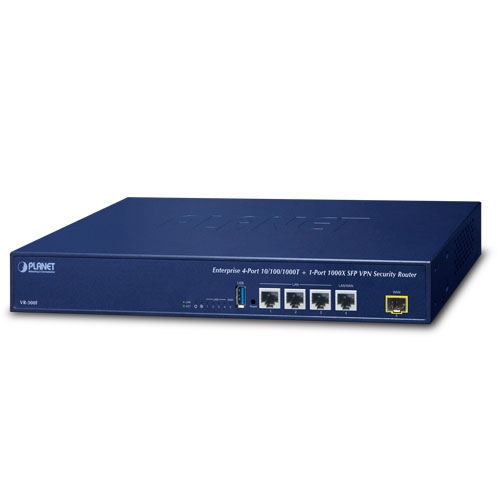

Enterprise 4-Port 10/100/1000T + 1-Port 1000X SFP VPN Security Router
Contact us for pricing
Product Details
Key Features
Secure Your Network: The Enterprise 4-Port 10/100/1000T + 1-Port 1000X SFP VPN Security Router features robust security measures including Firewall Security, Cybersecurity, and Stateful Packet Inspection (SPI) to block DoS/DDoS attacks.
High Availability: This router supports HA (High Availability) and Captive Portal, ensuring that your network remains up and running even in the event of a failure.
Advanced Routing Capabilities: With support for Static Route, Dynamic Route (RIP), and OSPF, this router provides advanced routing capabilities to ensure efficient network traffic management.
Scalable and Flexible: The router supports 802.1q Tag-based, Port-based, and Multi-VLAN, making it easy to scale and manage your network.
User-Friendly Management: The router features a user-friendly web-based interface and supports SNMP v1, v2c, and v3, making it easy to manage and monitor your network.
Robust VPN Capabilities: This router supports IPSec/Remote Server (Net-to-Net, Host-to-Net) and PPTP Server, providing robust VPN capabilities for secure data transfer.
Advanced Encryption Methods: The router supports DES, 3DES, AES, and AES-128/192/256 encrypting, ensuring that your data remains secure and confidential.
Compliance with International Standards: This router complies with CE and FCC standards, ensuring that it meets the highest standards of quality and safety.
Easy Setup and Management: The router features a setup wizard and dashboard, making it easy to set up and manage your network.
Real-Time Monitoring and Logging: The router provides real-time monitoring and logging capabilities, ensuring that you stay on top of your network's performance and security.
Advanced Diagnostics and Troubleshooting: The router features advanced diagnostics and troubleshooting tools, making it easy to identify and resolve issues quickly.
Supports IPv4 and IPv6: This router supports both IPv4 and IPv6, ensuring that your network remains compatible with the latest internet protocols.
Hardware Specifications | Ethernet 4 10/100/1000BASE-T RJ45 Ethernet ports including 1 1000BASE-X SFP slot |
Ethernet | 4 10/100/1000BASE-T RJ45 Ethernet ports including 1 1000BASE-X SFP slot |
3 LAN ports | Ports 1 to 3 |
1 WAN port | Port 5 |
USB Port | 1 USB 3.0 port for system configuration backup and restore |
Reset Button | Reset to factory default |
Thermal Fan | 1 |
LED Indicators | PWR (Green) Internet (Green) LAN/WAN (Green) |
Installation | Desktop installation or rack mounting |
Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
Power Consumption / Dissipation | VR-300F: Max.3.7 watts/ BTU VR-300FP: Max.132 watts/ BTU |
Weight | VR-300F: 1.3kg VR-300FP: 1.5kg |
Dimensions (W x D x H) | 330.2 x 153 x 44 mm, 1U height |
Enclosure | Metal |
Security Service | Firewall Security Cybersecurity |
Stateful Packet Inspection (SPI) | Blocks DoS/DDoS attack |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
NAT | Port forwarding |
DMZ Host | UPnP |
Content Filtering | MAC filtering IP filtering Web filtering |
Bandwidth Management | Outbound load balancing |
Failover for dual-WAN | QoS (Quality of Service) |
Networking | Operation Mode Routing mode |
Routing Protocol | Static Route, Dynamic Route (RIP), OSPF |
VLAN | 802.1q Tag-based, Port-based, Multi-VLAN |
Multicast | IGMP Proxy |
NAT Throughput | Max. 900Mbps |
Outbound Load Balancing | Supported algorithms: Weight |
Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3, |
Key Features | HA (High Availability) Captive Portal |
RADIUS Server/Client | AP Control |
VPN | VPN Function IPSec/Remote Server (Net-to-Net, Host-to-Net) |
GRE | PPTP Server |
L2TP Server | SSL Server/Client (Open VPN) |
VPN Tunnels | Max. 60 |
VPN Throughput | Max. 60Mbps |
Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
Management | Basic Management Interfaces Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported |
Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
System Log | System Event Log |
Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics Standards Conformance |
Regulatory Compliance | CE, FCC |
Environment Specifications | Operating Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Ordering Information | VR-300F Enterprise 4-Port 10/100/1000T + 1-Port 1000X SFP VPN Security Router |
Description
Enterprise 4-Port 10/100/1000T + 1-Port 1000X SFP VPN Security Router
Key Features & Benefits:
- Secure Your Network: The Enterprise 4-Port 10/100/1000T + 1-Port 1000X SFP VPN Security Router features robust security measures including Firewall Security, Cybersecurity, and Stateful Packet Inspection (SPI) to block DoS/DDoS attacks.
- High Availability: This router supports HA (High Availability) and Captive Portal, ensuring that your network remains up and running even in the event of a failure.
- Advanced Routing Capabilities: With support for Static Route, Dynamic Route (RIP), and OSPF, this router provides advanced routing capabilities to ensure efficient network traffic management.
- Scalable and Flexible: The router supports 802.1q Tag-based, Port-based, and Multi-VLAN, making it easy to scale and manage your network.
- User-Friendly Management: The router features a user-friendly web-based interface and supports SNMP v1, v2c, and v3, making it easy to manage and monitor your network.
- Robust VPN Capabilities: This router supports IPSec/Remote Server (Net-to-Net, Host-to-Net) and PPTP Server, providing robust VPN capabilities for secure data transfer.
- Advanced Encryption Methods: The router supports DES, 3DES, AES, and AES-128/192/256 encrypting, ensuring that your data remains secure and confidential.
- Compliance with International Standards: This router complies with CE and FCC standards, ensuring that it meets the highest standards of quality and safety.
- Easy Setup and Management: The router features a setup wizard and dashboard, making it easy to set up and manage your network.
- Real-Time Monitoring and Logging: The router provides real-time monitoring and logging capabilities, ensuring that you stay on top of your network's performance and security.
- Advanced Diagnostics and Troubleshooting: The router features advanced diagnostics and troubleshooting tools, making it easy to identify and resolve issues quickly.
- Supports IPv4 and IPv6: This router supports both IPv4 and IPv6, ensuring that your network remains compatible with the latest internet protocols.
Ideal For:
- Small and medium-sized businesses
- Enterprises
- Remote workers
- Branch offices
- Data centers
- Cloud service providers
- Managed service providers
- Telecom operators
- Internet service providers
Summary:
The Enterprise 4-Port 10/100/1000T + 1-Port 1000X SFP VPN Security Router is a robust and feature-rich networking solution designed for small and medium-sized businesses, enterprises, and remote workers. With its advanced security measures, high availability, and scalable design, this router provides a reliable and efficient network infrastructure. Available at Revolution Technology BD, this router is perfect for businesses looking to upgrade their network security and performance.
