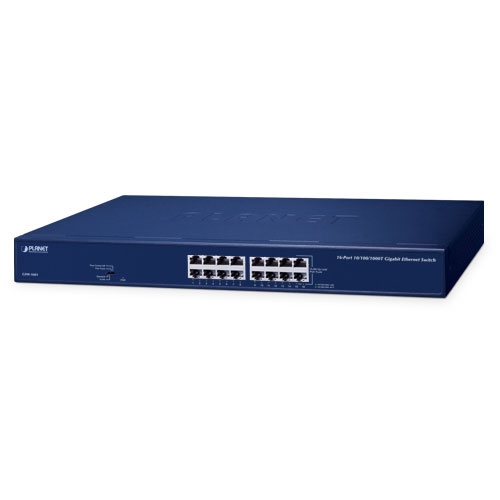

16-Port 10/100/1000BASE-T Gigabit Ethernet Switch GSW-1601
Contact us for pricing
Product Details
Key Features
Reliable Connectivity: The 16-Port 10/100/1000BASE-T Gigabit Ethernet Switch GSW-1601 provides reliable connectivity with 16 10/100/1000BASE-T ports, ensuring smooth data transfer and minimal downtime.
High-Speed Performance: With a switch fabric of 32Gbps, this switch delivers high-speed performance, making it ideal for demanding network environments.
Energy Efficiency: The switch supports IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption and heat generation, making it an eco-friendly option.
Easy Installation: The 1U height design and DIP switch make it easy to install and configure, saving time and effort.
Scalability: The switch supports VLAN, port trunk, and flow control, making it easy to scale and manage your network as it grows.
Robust Security: The switch supports IEEE 802.1Q VLAN, ensuring robust security and preventing unauthorized access to your network.
Long-Lasting: The switch is built to last with a weight of 1.6kg and a storage temperature range of -10~70 degrees C, ensuring it can withstand harsh environments.
Easy Monitoring: The switch provides easy monitoring with its 8K address table and jumbo packet size of 9K, making it easy to troubleshoot and optimize your network.
Flexibility: The switch supports multiple standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, making it compatible with a wide range of devices and networks.
Low Power Consumption: The switch has a power consumption of 7.6 watts, making it an energy-efficient option for your network.
Compact Design: The switch has a compact design with dimensions of 440 x 180 x 44mm, making it easy to fit into tight spaces.
Wide Power Requirements: The switch supports a wide range of power requirements, including 100~240V AC, 0.15A, 50-60Hz, making it compatible with different power sources.
Hardware Version | 10 |
10/100/1000BASE-T MDI/MDIX Ports | 16 |
Throughput (packet per second) | 23.8Mpps |
Switch Fabric | 32Gbps |
Weight | 1.6kg |
Power Consumption/Dissipation | 7.6 watts/25 BTU |
Power Requirements | 100~240V AC, 0.15A, 50-60Hz |
Dimensions (W x D x H) | 440 x 180 x 44mm, 1U height |
Switch Processing Scheme | Store-and-Forward |
Address Table | 8K entries |
Jumbo Packet Size | 9K |
Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
DIP Switch | Operation mode selection, Standard, VLAN, Port Trunk, Flow control off |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Full-Duplex Flow Control), IEEE 802.3az Energy Efficient Ethernet (EEE) |
Operating Temperature | 0~50 degrees C |
Relative Humidity | 5% to 95% (non-condensing) |
Storage Temperature | -10~70 degrees C |
Storage Relative Humidity | 5% to 95% (non-condensing) |
Description
16-Port 10/100/1000BASE-T Gigabit Ethernet Switch GSW-1601
Key Features & Benefits:
- Reliable Connectivity: The 16-Port 10/100/1000BASE-T Gigabit Ethernet Switch GSW-1601 provides reliable connectivity with 16 10/100/1000BASE-T ports, ensuring smooth data transfer and minimal downtime.
- High-Speed Performance: With a switch fabric of 32Gbps, this switch delivers high-speed performance, making it ideal for demanding network environments.
- Energy Efficiency: The switch supports IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption and heat generation, making it an eco-friendly option.
- Easy Installation: The 1U height design and DIP switch make it easy to install and configure, saving time and effort.
- Scalability: The switch supports VLAN, port trunk, and flow control, making it easy to scale and manage your network as it grows.
- Robust Security: The switch supports IEEE 802.1Q VLAN, ensuring robust security and preventing unauthorized access to your network.
- Long-Lasting: The switch is built to last with a weight of 1.6kg and a storage temperature range of -10~70 degrees C, ensuring it can withstand harsh environments.
- Easy Monitoring: The switch provides easy monitoring with its 8K address table and jumbo packet size of 9K, making it easy to troubleshoot and optimize your network.
- Flexibility: The switch supports multiple standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, making it compatible with a wide range of devices and networks.
- Low Power Consumption: The switch has a power consumption of 7.6 watts, making it an energy-efficient option for your network.
- Compact Design: The switch has a compact design with dimensions of 440 x 180 x 44mm, making it easy to fit into tight spaces.
- Wide Power Requirements: The switch supports a wide range of power requirements, including 100~240V AC, 0.15A, 50-60Hz, making it compatible with different power sources.
Ideal For:
- Small to medium-sized businesses
- Home offices
- Gaming enthusiasts
- Content creators
- Network administrators
- IT professionals
- Data centers
- Server rooms
Summary:
The 16-Port 10/100/1000BASE-T Gigabit Ethernet Switch GSW-1601 is a reliable and high-performance switch that is ideal for small to medium-sized businesses, home offices, and gaming enthusiasts. With its 16 10/100/1000BASE-T ports, high-speed performance, and energy efficiency, this switch is perfect for demanding network environments. Available at Revolution Technology BD, this switch is a great option for those looking for a reliable and efficient network solution.
