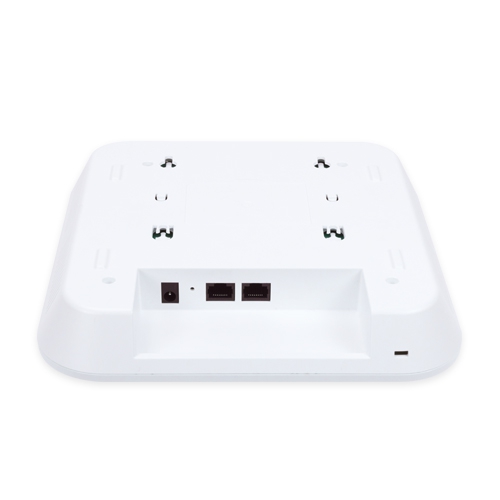

Dual Band 802.11be 5100Mbps Ceiling-mount Wireless Access Point with PoE+ 1 10/100/1000/2500T Port and 1 10/100/1000T LAN Port WDAP-C5100BE
Contact us for pricing
Product Details
Key Features
Dual Band 802.11be 5100Mbps Wireless Access Point: Experience blazing-fast wireless speeds of up to 5100Mbps with the WDAP-C5100BE, perfect for heavy-duty applications like video streaming and online gaming.
PoE+ Support: Enjoy the convenience of Power over Ethernet (PoE+) with the WDAP-C5100BE, allowing you to power your device and connect to the network with a single cable.
Easy Installation: The WDAP-C5100BE features a sleek and compact design, making it easy to install on any ceiling, and the included mounting kit ensures a secure and stable connection.
Advanced Security: Protect your network with the WDAP-C5100BE's advanced security features, including WPA3 Personal, WPA2/WPA3 Personal, and WPA2 Enterprise (802.1X), ensuring your data remains secure and private.
Seamless Roaming: Enjoy seamless roaming with the WDAP-C5100BE's support for Wi-Fi 6 (802.11ax), allowing you to move freely around your network without dropping connections or experiencing lag.
Beamforming Technology: The WDAP-C5100BE features beamforming technology, which focuses the wireless signal on your device, resulting in stronger connections and faster speeds.
VLAN Support: The WDAP-C5100BE supports IEEE 802.1Q VLAN (VID: 1~4094), allowing you to segment your network and prioritize traffic, ensuring optimal performance and security.
Central Management: Manage your network with ease using the WDAP-C5100BE's central management features, including PLANET CloudViewerPro, allowing you to monitor and control your network from a single interface.
Environmental Certifications: The WDAP-C5100BE meets the highest environmental standards, including CE and RoHS certifications, ensuring a safe and sustainable product for you and the environment.
Long-Lasting Performance: The WDAP-C5100BE is designed to provide long-lasting performance, with a power consumption of less than 15W and a reliable design that ensures years of trouble-free operation.
Easy Configuration: The WDAP-C5100BE features an intuitive web-based interface, making it easy to configure and manage your network, even for those with limited technical expertise.
Support for Multiple Operating Systems: The WDAP-C5100BE supports multiple operating systems, including Windows, macOS, and Linux, ensuring compatibility with your existing network infrastructure.
Support for Multiple Protocols: The WDAP-C5100BE supports multiple protocols, including PPPoE, PPTP, and L2TP, allowing you to connect to your network using your preferred method.
Hardware Specifications | Interfaces WAN/PoE: 1 x 10/100/1000/2500BASE-T RJ45 port, LAN: 1 x 10/100/1000BASE-T RJ45 port |
Auto-negotiation and auto MDI/MDI-X | Yes |
Antennas | 5 x internal 3dBi antenna (2.4G x 2, 5G x 3) |
Reset Button | Reset button on the rear side (Press over 5 seconds to reset the device to factory default.) |
LED Indicators | Composite LED (Red: Booting, Green: 2.4GHz+5GHz or 5GHz only, Blue: 2.4GHz only) |
Dimensions | 220 x 225 x 42.5 mm (W x D x H) |
Weight | 628 ± 5g |
Power Requirements | 48V DC IN, 0.5A, IEEE 802.3at PoE+ (WAN/PoE was changed port), 12V DC IN, 1.5A from DC Jack (5.5 x 2.1mm) |
Power Consumption | < 15W |
Mounting | Ceiling-mount |
Wireless Interface Specifications | Standard 5GHz: IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a, 2.4GHz: IEEE 802.11be, IEEE 802.11ax, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g |
Data Modulation | 802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM), 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM), 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM), 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM), 802.11b: DSSS (DBPSK / DQPSK / CCK) |
Frequency Range | 2.4GHz: FCC: 2.412~2.462GHz, ETSI: 2.412~2.472GHz, 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz, ETSI: 5.180~5.700GHz |
Operating Channels | ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels), 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 (19 channels), FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels), 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165 (24 channels) |
Temperature | Operating: -10~ 55 degrees C, Storage: -40 ~ 70 degrees C |
Humidity | Operating: 10 ~ 90% (non-condensing), Storage: 5 ~ 95% (non-condensing) |
Regulatory | CE, RoHS |
Description
Dual Band 802.11be 5100Mbps Ceiling-mount Wireless Access Point with PoE+ 1 10/100/1000/2500T Port and 1 10/100/1000T LAN Port WDAP-C5100BE
Key Features & Benefits:
- Dual Band 802.11be 5100Mbps Wireless Access Point: Experience blazing-fast wireless speeds of up to 5100Mbps with the WDAP-C5100BE, perfect for heavy-duty applications like video streaming and online gaming.
- PoE+ Support: Enjoy the convenience of Power over Ethernet (PoE+) with the WDAP-C5100BE, allowing you to power your device and connect to the network with a single cable.
- Easy Installation: The WDAP-C5100BE features a sleek and compact design, making it easy to install on any ceiling, and the included mounting kit ensures a secure and stable connection.
- Advanced Security: Protect your network with the WDAP-C5100BE's advanced security features, including WPA3 Personal, WPA2/WPA3 Personal, and WPA2 Enterprise (802.1X), ensuring your data remains secure and private.
- Seamless Roaming: Enjoy seamless roaming with the WDAP-C5100BE's support for Wi-Fi 6 (802.11ax), allowing you to move freely around your network without dropping connections or experiencing lag.
- Beamforming Technology: The WDAP-C5100BE features beamforming technology, which focuses the wireless signal on your device, resulting in stronger connections and faster speeds.
- VLAN Support: The WDAP-C5100BE supports IEEE 802.1Q VLAN (VID: 1~4094), allowing you to segment your network and prioritize traffic, ensuring optimal performance and security.
- Central Management: Manage your network with ease using the WDAP-C5100BE's central management features, including PLANET CloudViewerPro, allowing you to monitor and control your network from a single interface.
- Environmental Certifications: The WDAP-C5100BE meets the highest environmental standards, including CE and RoHS certifications, ensuring a safe and sustainable product for you and the environment.
- Long-Lasting Performance: The WDAP-C5100BE is designed to provide long-lasting performance, with a power consumption of less than 15W and a reliable design that ensures years of trouble-free operation.
- Easy Configuration: The WDAP-C5100BE features an intuitive web-based interface, making it easy to configure and manage your network, even for those with limited technical expertise.
- Support for Multiple Operating Systems: The WDAP-C5100BE supports multiple operating systems, including Windows, macOS, and Linux, ensuring compatibility with your existing network infrastructure.
- Support for Multiple Protocols: The WDAP-C5100BE supports multiple protocols, including PPPoE, PPTP, and L2TP, allowing you to connect to your network using your preferred method.
Ideal For:
- Home users with multiple devices
- Small to medium-sized businesses with multiple locations
- Large enterprises with complex network infrastructures
- Gaming enthusiasts who require high-speed wireless connections
- Streaming enthusiasts who require stable and reliable connections
- IT professionals who require advanced network management features
- Anyone looking for a reliable and secure wireless access point
Summary:
The WDAP-C5100BE is a high-performance dual-band wireless access point designed for heavy-duty applications. With speeds of up to 5100Mbps, it's perfect for video streaming, online gaming, and other data-intensive tasks. The device features advanced security features, including WPA3 Personal and WPA2 Enterprise, ensuring your data remains secure and private. With its sleek and compact design, easy installation, and long-lasting performance, the WDAP-C5100BE is an ideal solution for anyone looking for a reliable and secure wireless access point. Available now at Revolution Technology BD.
