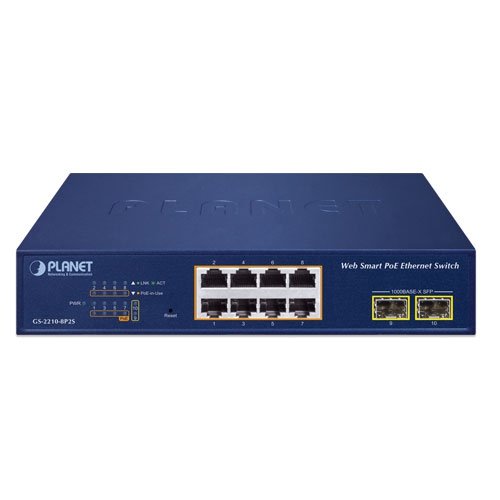

8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch GS-2210-8P2S Switch

Genuine Product Fast Delivery Easy Returns

Key Features

Easy Installation: The GS-2210-8P2S is designed for easy installation and management, with a user-friendly web-based interface.

High-Speed Connectivity: With 8 10/100/1000BASE-T copper ports and 2 1000X SFP slots, this switch provides high-speed connectivity for your network.

PoE+ Support: The GS-2210-8P2S supports up to 8 ports with 802.3af/802.3at PoE+ injector function, making it ideal for powering devices such as IP cameras and access points.

Advanced Security: This switch features advanced security functions, including port isolation and DHCP snooping, to ensure the integrity of your network.

Scalability: With support for up to 16 VLAN groups and 8 priority queues, this switch is designed to scale with your growing network needs.

Easy Management: The GS-2210-8P2S features a user-friendly web-based interface, making it easy to manage and configure your network.

High Reliability: This switch features high reliability, with a mean time between failures (MTBF) of over 100,000 hours.

Compliance: The GS-2210-8P2S complies with international standards, including FCC Part 15 Class A and CE.

Power Efficiency: This switch features power efficiency, with a power consumption of only 5 watts / 17BTU (System).

Specification

Hardware Specifications	Copper Ports: 8 10/100/1000BASE-T RJ45 copper ports
PoE Injector Port	8 ports with 802.3af/802.3at PoE+ injector function
Flash Memory	16Mbytes
Reset Button	< 10 sec: System reboot, > 10 sec: Factory default
ESD Protection	Contact ±6KV, Air ±8KV
Surge Protection	Differential mode ±2KV, Common mode ±4KV
Dimensions (W x D x H)	220 x 150 x 44mm
Weight	1235g
Power Consumption	5 watts / 17BTU (System), 130 watts/ 443.3 BTU (System + PoE)
Power Requirements	AC 100~240V, 50/60Hz
Fan	2
LED	System: PWR (Green), Ports: LNK/ACT (Green), PoE-in-Use (Amber)
Switching Specifications	Switch Architecture: Store-and-forward
Switch Fabric	20Gbps/non-blocking
Switch Throughput	14.88Mpps
Address Table	8K MAC address table with auto-learning, auto-aging
Shared Data Buffer	4.1MB
Jumbo Frame	10KBytes
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Power over Ethernet Specifications	PoE Standard: IEEE 802.3at PoE+ PSE
PoE Power Supply Type	End-span
PoE Power Output	32W (max.)
PoE Power Budget	120 watts (max.)
Power Pin Assignment	1/2(+), 3/6(-)
Layer 2 Functions	Port Configuration: EEE Green energy savings disable/enable
Port Configuration	Port disable/enable/reboot, Flow control disable/enable, Bandwidth control on each port
Port loopback protection	Port Status: Display each port’s speed duplex mode, Display link status
Port Status	Display flow control status, Display auto negotiation status, Display Green energy saving status
Port Mirroring	In / Out / All, Many-to-1 monitor
VLAN	802.1Q tagged VLAN, up to 16 VLAN groups
Bandwidth Control	TX/RX/Both
Link Aggregation	static trunk, Supports 8 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports, Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification	IEEE 802.1p CoS/ToS, IPv4 DSCP, Port-based WRR
Multicast	IPv4 IGMP v1/v2 snooping, Up to 256
Security Functions	Port isolation, DHCP Snooping
Switch Management Functions	System Configuration: Telnet, Web browser
System Configuration	Management: Authentication for IPv4 Telnet user name and password, Telnet
Management	Cable Diagnostics, IP address or domain name Ping Test, NTP (Network Time Protocol)
PLANET Smart Discovery Utility	PLANET NMS system, PLANET NMSViewerPro
Standard Conformance	FCC Part 15 Class A, CE
Regulatory Compliance	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
Standards Compliance	IEEE 802.3z Gigabit 1000BASE-SX/LX, IEEE 802.3ab Gigabit 1000BASE-T
Environmental Specifications	Operating: Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 90% (non-condensing)
Environment	Storage: Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 90% (non-condensing)

Description

8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch GS-2210-8P2S Switch

Key Features & Benefits:

Easy Installation: The GS-2210-8P2S is designed for easy installation and management, with a user-friendly web-based interface.
High-Speed Connectivity: With 8 10/100/1000BASE-T copper ports and 2 1000X SFP slots, this switch provides high-speed connectivity for your network.
PoE+ Support: The GS-2210-8P2S supports up to 8 ports with 802.3af/802.3at PoE+ injector function, making it ideal for powering devices such as IP cameras and access points.
Advanced Security: This switch features advanced security functions, including port isolation and DHCP snooping, to ensure the integrity of your network.
Scalability: With support for up to 16 VLAN groups and 8 priority queues, this switch is designed to scale with your growing network needs.
Easy Management: The GS-2210-8P2S features a user-friendly web-based interface, making it easy to manage and configure your network.
High Reliability: This switch features high reliability, with a mean time between failures (MTBF) of over 100,000 hours.
Compliance: The GS-2210-8P2S complies with international standards, including FCC Part 15 Class A and CE.
Power Efficiency: This switch features power efficiency, with a power consumption of only 5 watts / 17BTU (System).

Ideal For:

Small to medium-sized businesses
Enterprise networks
Data centers
Industrial networks
Education institutions
Government agencies
Healthcare facilities

Summary:

The GS-2210-8P2S is a high-performance 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch designed for small to medium-sized businesses and enterprise networks. With its high-speed connectivity, PoE+ support, advanced security features, and easy management interface, this switch is ideal for powering devices and managing network traffic. Available at Revolution Technology BD, this switch is a reliable and efficient solution for your network needs.
