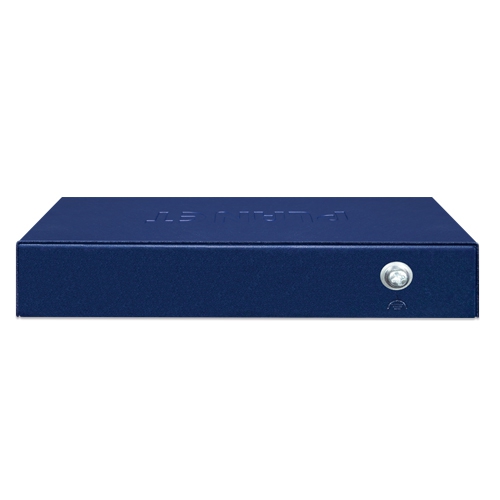

GSD-803 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch
Contact us for pricing
Product Details
Key Features
Reliable Gigabit Ethernet Connectivity: The GSD-803 offers 8 auto MDI/MDIX ports for reliable gigabit Ethernet connectivity, ensuring smooth data transfer and minimal downtime.
High-Speed Switching Fabric: With a switching fabric of 16Gbps, the GSD-803 can handle high-speed data transfer and multiple connections with ease.
Energy Efficiency: The GSD-803 supports IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption and heat generation.
Advanced Flow Control: The GSD-803 features back pressure half duplex and IEEE 802.3x pause frame full duplex flow control, ensuring reliable data transfer and minimizing packet loss.
Jumbo Packet Support: The GSD-803 supports jumbo packets of up to 15K, reducing the number of packets and improving network efficiency.
Compact and Durable Design: The GSD-803 has a compact metal case, making it ideal for small spaces and harsh environments.
Wide Operating Temperature Range: The GSD-803 can operate in temperatures ranging from 0 to 50 degrees C, making it suitable for use in various environments.
Compliance with International Standards: The GSD-803 complies with international standards such as IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, ensuring compatibility with various networks.
Easy Installation and Management: The GSD-803 has a simple and intuitive design, making it easy to install and manage.
Low Power Consumption: The GSD-803 has a low power consumption of 4.2 watts, reducing energy costs and heat generation.
Compact Size: The GSD-803 has a compact size of 140 x 67 x 26 mm, making it ideal for small spaces and harsh environments.
Durable Metal Case: The GSD-803 has a durable metal case, ensuring long-term reliability and durability.
Hardware Specifications | 10/100/1000BASE-T Ports 8 Auto MDI/MDIX ports |
Enclosure | Metal |
LED Display | One for power and one for Link / Act per port |
Dimensions (W x D x H) | 140 x 67 x 26 mm |
Weight | 221g |
Power Requirements (External power adapter) | 5V DC, 1A |
Power Consumption/Dissipation | 4.2 watts/14.3 BTU |
Switch Specifications | Switch Processing Scheme Store-and-Forward |
Address Table | 8K |
Flow Control | Back pressure half duplex, IEEE 802.3x pause frame full duplex |
Switching Fabric | 16Gbps |
Throughput (packet per second) | 11.9Mpps |
Jumbo Packet Size | 15K |
Standards Conformance | IEEE 802.3 (Ethernet) |
Standards Compliance | IEEE 802.3u (Fast Ethernet) |
Standards Compliance | IEEE 802.3ab(Gigabit Ethernet) |
Standards Compliance | IEEE 802.3x (Full-duplex Flow Control) |
Standards Compliance | IEEE 802.3az Energy Efficient Ethernet (EEE) |
Regulatory Compliance | FCC Part 15 Class B, CE |
Environments | Temperature Operating: 0~50 degrees C |
Environments | Storage: -10~70 degrees C |
Environments | Humidity Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) |
Ordering Information | GSD-803 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch (Metal case) |
Description
GSD-803 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch
Key Features & Benefits:
- Reliable Gigabit Ethernet Connectivity: The GSD-803 offers 8 auto MDI/MDIX ports for reliable gigabit Ethernet connectivity, ensuring smooth data transfer and minimal downtime.
- High-Speed Switching Fabric: With a switching fabric of 16Gbps, the GSD-803 can handle high-speed data transfer and multiple connections with ease.
- Energy Efficiency: The GSD-803 supports IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption and heat generation.
- Advanced Flow Control: The GSD-803 features back pressure half duplex and IEEE 802.3x pause frame full duplex flow control, ensuring reliable data transfer and minimizing packet loss.
- Jumbo Packet Support: The GSD-803 supports jumbo packets of up to 15K, reducing the number of packets and improving network efficiency.
- Compact and Durable Design: The GSD-803 has a compact metal case, making it ideal for small spaces and harsh environments.
- Wide Operating Temperature Range: The GSD-803 can operate in temperatures ranging from 0 to 50 degrees C, making it suitable for use in various environments.
- Compliance with International Standards: The GSD-803 complies with international standards such as IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, ensuring compatibility with various networks.
- Easy Installation and Management: The GSD-803 has a simple and intuitive design, making it easy to install and manage.
- Low Power Consumption: The GSD-803 has a low power consumption of 4.2 watts, reducing energy costs and heat generation.
- Compact Size: The GSD-803 has a compact size of 140 x 67 x 26 mm, making it ideal for small spaces and harsh environments.
- Durable Metal Case: The GSD-803 has a durable metal case, ensuring long-term reliability and durability.
Ideal For:
- Small and medium-sized businesses
- Home users with multiple devices
- Industrial environments with harsh conditions
- Data centers and server rooms
- Network administrators and IT professionals
- Users who require high-speed data transfer
- Users who need reliable and efficient network connectivity
Summary:
The GSD-803 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch is a reliable and efficient network solution for small and medium-sized businesses, home users, and industrial environments. With its high-speed switching fabric, advanced flow control, and energy efficiency features, it ensures smooth data transfer and minimal downtime. The GSD-803 is available at Revolution Technology BD and is ideal for users who require reliable and efficient network connectivity. Order now and experience the benefits of a high-performance network solution.
