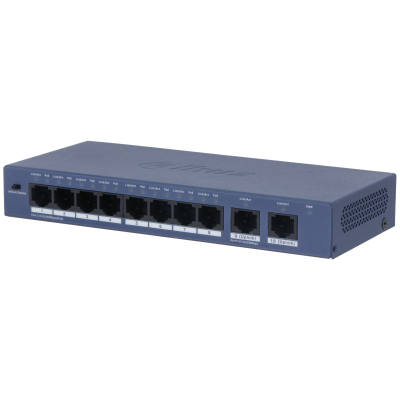

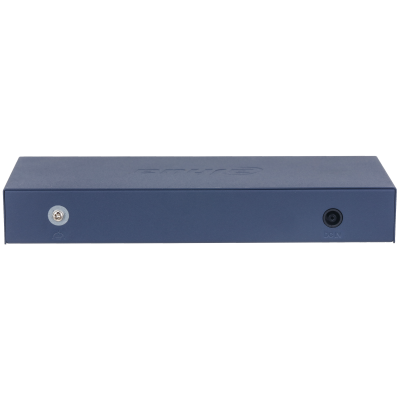

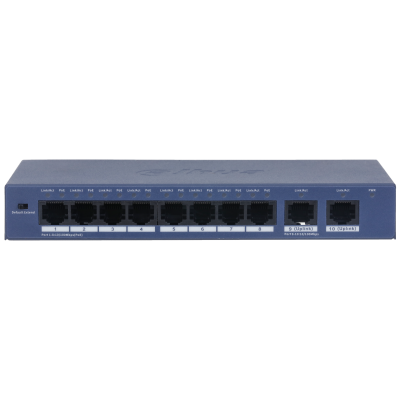

Dahua DH-S3010-8ET2ET-60 10-Port Fast Ethernet PoE Switch

৳ 3,900

Exclusive of all taxes

Genuine Product Fast Delivery Easy Returns

Key Features

Reliable Network Connectivity: The Dahua DH-S3010-8ET2ET-60 provides reliable network connectivity with its 10-port fast Ethernet PoE switch.

High-Speed Data Transfer: With a switching capacity of 2 Gbps, this switch ensures high-speed data transfer and efficient network performance.

Long Distance PoE Transmission: The switch supports long distance PoE transmission up to 250 meters, making it ideal for large-scale network deployments.

Power over Ethernet (PoE): The switch supports PoE, allowing you to power devices over the Ethernet cable, reducing installation costs and increasing flexibility.

Easy Installation: The switch has a desktop mount and wall mount design, making it easy to install and set up in various environments.

Compact Design: The switch has a compact design, making it ideal for small-scale network deployments and space-constrained environments.

High Power Budget: The switch has a high power budget of 60 W, allowing you to power multiple devices over the Ethernet cable.

Advanced Security Features: The switch has advanced security features, including statics protection and lightning protection, ensuring the integrity of your network.

Robust Construction: The switch has a robust construction, with a sheet metal casing and a compact design, making it durable and long-lasting.

Easy Maintenance: The switch has a user-friendly interface and a comprehensive packing list, making it easy to maintain and troubleshoot.

Compliance with Industry Standards: The switch complies with industry standards, including IEEE 802.3af and IEEE 802.3at, ensuring interoperability with other devices.

Warranty and Support: The switch comes with a comprehensive warranty and dedicated support, ensuring you have peace of mind and assistance when you need it.

Specification

Layer	Unmanaged
Switching Capacity	2 Gbps
Packet Forwarding Rate	1.488 Mpps
Function Slots	Port 1-8: 8 × RJ45 10/100 Mbps (PoE); Port 9-10: 2 × RJ45 10/100 Mbps (Uplink)
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Operating Humidity	10%–90% (RH), non-condensing
Storage Temperature	-40°C to +75°C (–40°F to +167°F)
Storage Humidity	5%–95% (RH), non-condensing
Power Supply	External power supply: 53 V, 50/60 Hz, max 1.22 A
Power Consumption	Idling: 1.9 W; Full load: 63.6 W
Statics Protection	Air discharge: 8 kV; Contact discharge: 6 kV
Lightning Protection	Common mode: 6 kV; Differential mode: 1 kV
Net Weight	0.28 kg (0.62 lb)
Gross Weight	0.861 kg (1.90 lb)
Product Dimensions (L × W × H)	184.6 mm × 77.4 mm × 27 mm (7.27" × 3.32" × 1.06")
Packaging Dimensions (L × W × H)	253 mm × 112 mm × 83 mm (9.96" × 4.41" × 3.27")
Casing Material	Sheet Metal
Installation	Desktop mount; wall mount
Certifications	CE
PoE	Yes
PoE Power	Port 1-8 ≤ 30 W, total ≤ 60 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at
PoE Pin Assignment	1,2,4,5 (V+), 3,6,7,8 (V-)
Long Distance PoE Transmission	Yes
DIP Switch	Long Distance PoE: transmission distance up to 250 meters (speed reduces to 10 Mbps)
Packet Buffer Size	768 Kbit
Jumbo Frame	2048 Byte
MAC Table Size	2K
Communication Standard	IEEE802.3; IEEE802.3u; IEEE802.3x
Packing List	1 × User Manual, 1 × Legal and Regulatory Information, 1 × Power Cord

Description

Dahua DH-S3010-8ET2ET-60 10-Port Fast Ethernet PoE Switch

Key Features & Benefits:

Reliable Network Connectivity: The Dahua DH-S3010-8ET2ET-60 provides reliable network connectivity with its 10-port fast Ethernet PoE switch.
High-Speed Data Transfer: With a switching capacity of 2 Gbps, this switch ensures high-speed data transfer and efficient network performance.
Long Distance PoE Transmission: The switch supports long distance PoE transmission up to 250 meters, making it ideal for large-scale network deployments.
Power over Ethernet (PoE): The switch supports PoE, allowing you to power devices over the Ethernet cable, reducing installation costs and increasing flexibility.
Easy Installation: The switch has a desktop mount and wall mount design, making it easy to install and set up in various environments.
Compact Design: The switch has a compact design, making it ideal for small-scale network deployments and space-constrained environments.
High Power Budget: The switch has a high power budget of 60 W, allowing you to power multiple devices over the Ethernet cable.
Advanced Security Features: The switch has advanced security features, including statics protection and lightning protection, ensuring the integrity of your network.
Robust Construction: The switch has a robust construction, with a sheet metal casing and a compact design, making it durable and long-lasting.
Easy Maintenance: The switch has a user-friendly interface and a comprehensive packing list, making it easy to maintain and troubleshoot.
Compliance with Industry Standards: The switch complies with industry standards, including IEEE 802.3af and IEEE 802.3at, ensuring interoperability with other devices.
Warranty and Support: The switch comes with a comprehensive warranty and dedicated support, ensuring you have peace of mind and assistance when you need it.

Ideal For:

Small to medium-sized businesses
Home offices and remote workers
Large-scale network deployments
Industrial environments
Retail and hospitality settings
Education institutions
Government agencies
Data centers and server rooms

Summary:

The Dahua DH-S3010-8ET2ET-60 is a reliable and efficient 10-port fast Ethernet PoE switch, ideal for small to large-scale network deployments. With its high-speed data transfer, long distance PoE transmission, and advanced security features, this switch is perfect for businesses and organizations looking to upgrade their network infrastructure. At Revolution Technology BD, we offer this switch with a comprehensive warranty and dedicated support, ensuring you have peace of mind and assistance when you need it.
