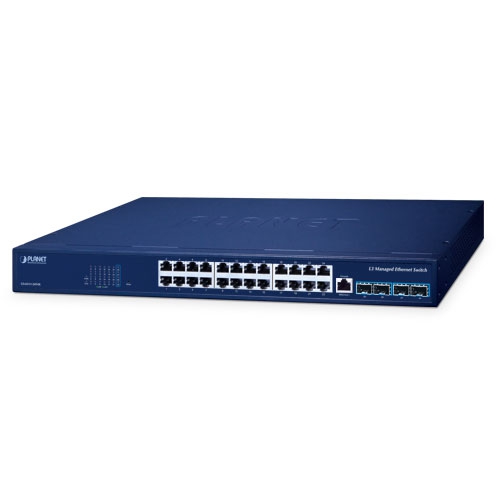

GS-6311-24T4X 24-Port 10/100/1000T 10G SFP+ Ethernet Switch

Genuine Product Fast Delivery Easy Returns

Key Features

High-performance Ethernet Switching: The GS-6311-24T4X supports high-performance Ethernet switching with a switching fabric of 128Gbps/non-blocking and a switching throughput of 95.23Mpps.

Advanced Layer 3 Functions: The switch supports advanced Layer 3 functions, including IP routing protocol, multicast routing protocol, and IPv6 Layer 3 functions.

Enhanced Security Features: The GS-6311-24T4X features enhanced security functions, including access control list, port isolation, and identification and filtering of L2/L3/L4 based ACL.

Scalable and Flexible VLAN Management: The switch supports scalable and flexible VLAN management, including 802.1Q tagged VLAN, VLAN stacking, and private VLAN edge.

Advanced Quality of Service (QoS) Features: The GS-6311-24T4X supports advanced QoS features, including 8 priority queues on all switch ports and strict priority and Weighted Round Robin (WRR) CoS policies.

Support for Multiple Network Protocols: The switch supports multiple network protocols, including IPv4, IPv6, and IGMP.

High-speed SFP+ Ports: The GS-6311-24T4X features high-speed SFP+ ports with a speed of up to 10Gbps.

Redundant Power Supply: The switch supports redundant power supply, ensuring high availability and reliability.

Durable and Reliable Design: The GS-6311-24T4X features a durable and reliable design, with a MTBF of over 100,000 hours.

Easy Management and Configuration: The switch supports easy management and configuration through various protocols, including SNMP, Telnet, and Web browser.

Compliance with International Standards: The GS-6311-24T4X complies with international standards, including FCC Part 15 Class A and CE.

Wide Operating Temperature Range: The switch operates within a wide temperature range of 0 ~ 50 degrees C, ensuring reliable operation in various environments.

High-speed Data Transfer: The GS-6311-24T4X supports high-speed data transfer with a switching throughput of 95.23Mpps and a switching fabric of 128Gbps/non-blocking.

Advanced Spanning Tree Protocol: The switch supports advanced Spanning Tree Protocol, including STP, RSTP, and MSTP, ensuring reliable and efficient network operation.

Specification

Hardware Specifications	Copper Ports: 24 10/100/1000BASE-T RJ45 copper ports (ports 1 to 24)
Hardware Specifications	10G SFP+ Ports: 4 10GBASE-SR/LR SFP+ interfaces (ports 25 to 28)
Hardware Specifications	Console Port: 1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
CPU	MIPS 800MHz
RAM	512Mbytes
Flash Memory	32Mbytes
ESD Protection	Contact ±6KV , Air ±8KV
Surge Protection	Differential mode ±2KV , Common mode ±4KV
Dimensions (W x D x H)	440 x 207 x 44mm
Weight	2742g
Power Consumption	23.2 watts/79.11 BTU
Power Requirements	AC 100~240V, 50/60Hz
Fan	－－
LED	System: PWR (Green), SYS (Green) Ports: LNK/ACT (Green)
Switch Architecture	Store-and-forward
Switch Fabric	128Gbps/non-blocking
Switch Throughput	95.23Mpps
Address Table	16K MAC address table with auto learning function
ARP Table	8K
Routing Table	6K
IP Interface	1024
ACL Table	2K
Shared Data Buffer	12MB
Jumbo Frame	12KBytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
IPv4 Layer 3 Functions	IP Routing Protocol: Static route RIPv1/v2 OSPFv2
Multicast Routing Protocol	IGMP v1/v2/v3
IPv6 Layer 3 Functions	Other: ICMPv6,ND,DNSv6
Layer 2 Functions	Port Configuration: EEE Green energy savings disable/enable Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect Port Status: Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
VLAN	802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN
Spanning Tree Protocol	STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Supports BPDU and root guard, BPDU Filtering and BPDU Forwarding
Bandwidth Control	TX/RX/Both
Link Aggregation	IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR
Security Functions	Access Control List: Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 2K entries
Access Control List	Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 2K entries
Security	Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels AAA TACACS+ and IPv4/IPv6 over RADIUS
AAA	TACACS+ and IPv4/IPv6 over RADIUS
Authentication	IEEE 802.1x port-based network access control
Switch Management Functions	System Configuration: Console, Telnet, Web browser, SNMP v1, v2c Secure Management Intefaces: SSHv2, TLSv1.2, SNMPv3 Management: IPv4 and IPv6 dual stack management User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups IPv4/IPv6 FTP/TFTP IPv4/IPv6 NTP RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 TACACS+ PLANET Smart Discovery Utility PLANET NMS controller supported SNMP MIBs RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3,9) RFC 1493 Bridge MIB Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1ag CFM IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Ordering Information	GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

Description

GS-6311-24T4X 24-Port 10/100/1000T 10G SFP+ Ethernet Switch

Key Features & Benefits:

High-performance Ethernet Switching: The GS-6311-24T4X supports high-performance Ethernet switching with a switching fabric of 128Gbps/non-blocking and a switching throughput of 95.23Mpps.
Advanced Layer 3 Functions: The switch supports advanced Layer 3 functions, including IP routing protocol, multicast routing protocol, and IPv6 Layer 3 functions.
Enhanced Security Features: The GS-6311-24T4X features enhanced security functions, including access control list, port isolation, and identification and filtering of L2/L3/L4 based ACL.
Scalable and Flexible VLAN Management: The switch supports scalable and flexible VLAN management, including 802.1Q tagged VLAN, VLAN stacking, and private VLAN edge.
Advanced Quality of Service (QoS) Features: The GS-6311-24T4X supports advanced QoS features, including 8 priority queues on all switch ports and strict priority and Weighted Round Robin (WRR) CoS policies.
Support for Multiple Network Protocols: The switch supports multiple network protocols, including IPv4, IPv6, and IGMP.
High-speed SFP+ Ports: The GS-6311-24T4X features high-speed SFP+ ports with a speed of up to 10Gbps.
Redundant Power Supply: The switch supports redundant power supply, ensuring high availability and reliability.
Durable and Reliable Design: The GS-6311-24T4X features a durable and reliable design, with a MTBF of over 100,000 hours.
Easy Management and Configuration: The switch supports easy management and configuration through various protocols, including SNMP, Telnet, and Web browser.
Compliance with International Standards: The GS-6311-24T4X complies with international standards, including FCC Part 15 Class A and CE.
Wide Operating Temperature Range: The switch operates within a wide temperature range of 0 ~ 50 degrees C, ensuring reliable operation in various environments.
High-speed Data Transfer: The GS-6311-24T4X supports high-speed data transfer with a switching throughput of 95.23Mpps and a switching fabric of 128Gbps/non-blocking.
Advanced Spanning Tree Protocol: The switch supports advanced Spanning Tree Protocol, including STP, RSTP, and MSTP, ensuring reliable and efficient network operation.

Ideal For:

Data centers and cloud computing environments
Enterprise networks and campus networks
Service providers and carriers
Industrial networks and automation systems
Education and research institutions
Government agencies and public sector organizations
Small and medium-sized businesses
Home networks and home offices

Summary:

The GS-6311-24T4X is a high-performance Ethernet switch designed for demanding network environments. With its advanced features, high-speed SFP+ ports, and redundant power supply, it provides reliable and efficient network operation. The switch is ideal for data centers, enterprise networks, service providers, and industrial networks. It is also suitable for small and medium-sized businesses, education and research institutions, government agencies, and home networks.
