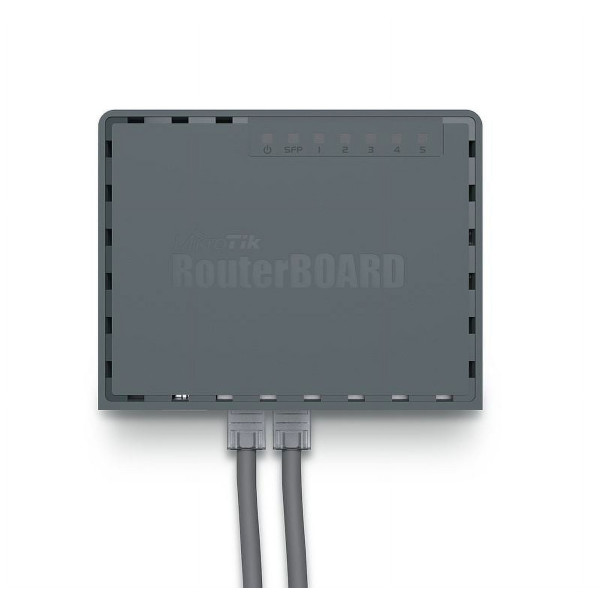

MikroTik RouterBOARD RB760iGS (hEX S) Ethernet Router

Genuine Product Fast Delivery Easy Returns

Key Features

High-performance networking: The RouterBOARD RB760iGS (hEX S) features a high-performance MT7621A CPU with a nominal frequency of 880 MHz, ensuring fast and reliable networking.

Advanced security features: The device comes with RouterOS, a powerful operating system that offers advanced security features, including firewall rules, VPN support, and more.

PoE support: The RouterBOARD RB760iGS (hEX S) supports PoE (Power over Ethernet) with a max power consumption of 24 W, making it ideal for powering devices over a single cable.

Compact design: The device has a compact design with dimensions of 113 x 89 x 28 mm, making it perfect for small spaces and home networks.

Easy management: The RouterBOARD RB760iGS (hEX S) comes with a user-friendly web interface and a mobile app, making it easy to manage and configure your network.

High-speed Ethernet ports: The device features 5 high-speed Ethernet ports with a speed of up to 1000 Mbps, ensuring fast data transfer rates.

SFP port for fiber connectivity: The RouterBOARD RB760iGS (hEX S) has an SFP port for fiber connectivity, making it ideal for connecting to fiber-optic networks.

MicroSD card slot for storage expansion: The device has a microSD card slot for expanding storage capacity, making it perfect for applications that require large amounts of storage.

USB port for device connectivity: The RouterBOARD RB760iGS (hEX S) has a USB port for connecting devices such as printers, scanners, and more.

Long-lasting reliability: The device has a long-lasting reliability with a MTBF of approximately 100,000 hours at 25C, making it perfect for mission-critical applications.

Wide operating temperature range: The RouterBOARD RB760iGS (hEX S) operates within a wide temperature range of -40°C to 70°C, making it suitable for use in harsh environments.

CE, EAC, and ROHS certifications: The device has obtained CE, EAC, and ROHS certifications, ensuring compliance with international safety and environmental standards.

Specification

Product code	RB760iGS
Architecture	MMIPS
CPU	MT7621A
CPU core count	2
CPU nominal frequency	880 MHz
CPU Threads count	4
Switch chip model	MT7621A
Dimensions	113 x 89 x 28 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	24 W
Max power consumption without attachments	6 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	12-57 V
PoE-out	PoE-out ports
PoE-out ports	Ether5
PoE out	Passive PoE up to 57V
Low voltage PoE-Out current limit	500 mA
High voltage PoE-Out current limit	500 mA
Max total out (A)	500 mA
Ethernet	10/100/1000 Ethernet ports
Ethernet ports	5
Fiber	SFP ports
SFP ports	1
Peripherals	Memory card type
Memory card type	microSD
Memory Cards	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Other	PCB temperature monitor
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes
Beeper	Yes
Certification & Approvals	Certification
Certification	CE, EAC, ROHS
IP	IP20

Description

RouterBOARD RB760iGS (hEX S) Ethernet Router

Key Features & Benefits:

High-performance networking: The RouterBOARD RB760iGS (hEX S) features a high-performance MT7621A CPU with a nominal frequency of 880 MHz, ensuring fast and reliable networking.
Advanced security features: The device comes with RouterOS, a powerful operating system that offers advanced security features, including firewall rules, VPN support, and more.
PoE support: The RouterBOARD RB760iGS (hEX S) supports PoE (Power over Ethernet) with a max power consumption of 24 W, making it ideal for powering devices over a single cable.
Compact design: The device has a compact design with dimensions of 113 x 89 x 28 mm, making it perfect for small spaces and home networks.
Easy management: The RouterBOARD RB760iGS (hEX S) comes with a user-friendly web interface and a mobile app, making it easy to manage and configure your network.
High-speed Ethernet ports: The device features 5 high-speed Ethernet ports with a speed of up to 1000 Mbps, ensuring fast data transfer rates.
SFP port for fiber connectivity: The RouterBOARD RB760iGS (hEX S) has an SFP port for fiber connectivity, making it ideal for connecting to fiber-optic networks.
MicroSD card slot for storage expansion: The device has a microSD card slot for expanding storage capacity, making it perfect for applications that require large amounts of storage.
USB port for device connectivity: The RouterBOARD RB760iGS (hEX S) has a USB port for connecting devices such as printers, scanners, and more.
Long-lasting reliability: The device has a long-lasting reliability with a MTBF of approximately 100,000 hours at 25C, making it perfect for mission-critical applications.
Wide operating temperature range: The RouterBOARD RB760iGS (hEX S) operates within a wide temperature range of -40°C to 70°C, making it suitable for use in harsh environments.
CE, EAC, and ROHS certifications: The device has obtained CE, EAC, and ROHS certifications, ensuring compliance with international safety and environmental standards.

Ideal For:

Home users who need a reliable and high-performance router for their home network.
Small businesses that require a secure and manageable network solution.
Internet Service Providers (ISPs) who need a device for their network infrastructure.
Network administrators who require a device with advanced security features and management capabilities.
Users who need a device with PoE support for powering devices over a single cable.
Users who require a compact and easy-to-manage device for small spaces and home networks.
Users who need a device with high-speed Ethernet ports and SFP port for fiber connectivity.

Summary:

The RouterBOARD RB760iGS (hEX S) is a high-performance Ethernet router designed for small to medium-sized networks. It features a powerful MT7621A CPU, advanced security features, and PoE support. The device has a compact design, easy management capabilities, and high-speed Ethernet ports. It is ideal for home users, small businesses, and network administrators who require a reliable and manageable network solution.
