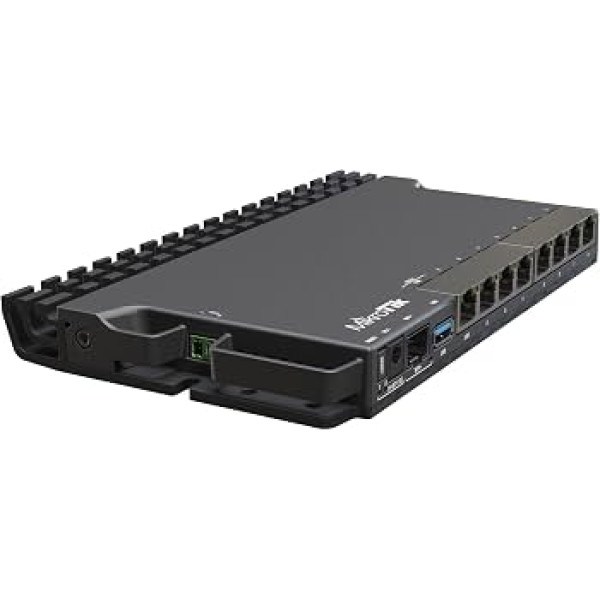

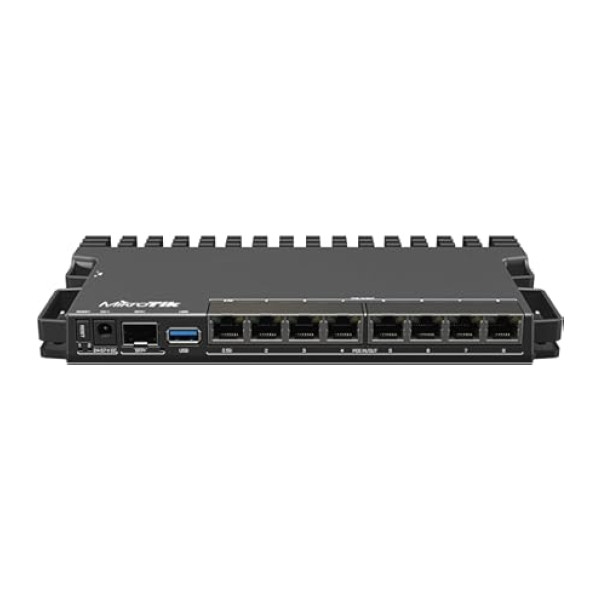

MikroTik RouterBOARD RB5009UG+S+IN Ethernet Router
Contact us for pricing
Product Details
Key Features
High-performance networking: The MikroTik RouterBOARD RB5009UG+S+IN features a powerful ARM 64bit CPU and 4 CPU cores, making it ideal for demanding network applications.
Flexible power options: This router supports 3 DC inputs, including a DC jack, PoE-IN, and 2-pin terminal, providing flexibility in power management.
Robust storage: With 1 GB of RAM and 1 GB of storage, this router is well-equipped to handle demanding network tasks.
Advanced cooling system: The passive cooling system ensures reliable operation even in high-temperature environments.
High-speed Ethernet ports: The MikroTik RouterBOARD RB5009UG+S+IN features 7 10/100/1000 Ethernet ports and 1 SFP+ port, providing high-speed connectivity options.
PoE support: This router supports 802.3af/at PoE, making it easy to power devices over Ethernet.
Compact design: The router's compact dimensions of 220 x 125 x 22 mm make it ideal for space-constrained environments.
Long MTBF: The router's MTBF of approximately 200,000 hours at 25°C ensures reliable operation over a long period.
Wide operating temperature range: The router can operate in temperatures ranging from -40°C to 60°C, making it suitable for harsh environments.
USB 3.0 support: The router features a single USB 3.0 port, providing fast data transfer speeds.
CPU temperature monitoring: The router's CPU temperature monitoring feature ensures that the CPU operates within a safe temperature range.
Compliance with international standards: The MikroTik RouterBOARD RB5009UG+S+IN complies with CE, EAC, and ROHS standards, ensuring safe and reliable operation.
Product code | RB5009UG+S+IN |
Architecture | ARM 64bit |
CPU | 88F7040 |
CPU core count | 4 |
CPU nominal frequency | 350-1400 (auto) MHz |
CPU Threads count | 4 |
Switch chip model | 88E6393 |
Dimensions | 220 x 125 x 22 mm |
RouterOS license | 5 |
Operating System | RouterOS v7 |
Size of RAM | 1 GB |
Storage size | 1 GB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 60°C |
Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
DC jack input Voltage | 24-57 V |
2-pin terminal input Voltage | 24-57 V |
Max power consumption | 25 W |
Max power consumption without attachments | 14 W |
PoE in | 802.3af/at |
Cooling type | Passive |
PoE in input Voltage | 24-57 V |
Ethernet | 10/100/1000 Ethernet ports |
Number of 2.5G Ethernet ports | 7 |
Fiber | SFP+ ports |
Number of SFP+ ports | 1 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB 3.0 type A |
Max USB current (A) | 1.5 |
CPU temperature monitor | Yes |
Certification | CE, EAC, ROHS |
Description
MikroTik RouterBOARD RB5009UG+S+IN Ethernet Router
Key Features & Benefits:
- High-performance networking: The MikroTik RouterBOARD RB5009UG+S+IN features a powerful ARM 64bit CPU and 4 CPU cores, making it ideal for demanding network applications.
- Flexible power options: This router supports 3 DC inputs, including a DC jack, PoE-IN, and 2-pin terminal, providing flexibility in power management.
- Robust storage: With 1 GB of RAM and 1 GB of storage, this router is well-equipped to handle demanding network tasks.
- Advanced cooling system: The passive cooling system ensures reliable operation even in high-temperature environments.
- High-speed Ethernet ports: The MikroTik RouterBOARD RB5009UG+S+IN features 7 10/100/1000 Ethernet ports and 1 SFP+ port, providing high-speed connectivity options.
- PoE support: This router supports 802.3af/at PoE, making it easy to power devices over Ethernet.
- Compact design: The router's compact dimensions of 220 x 125 x 22 mm make it ideal for space-constrained environments.
- Long MTBF: The router's MTBF of approximately 200,000 hours at 25°C ensures reliable operation over a long period.
- Wide operating temperature range: The router can operate in temperatures ranging from -40°C to 60°C, making it suitable for harsh environments.
- USB 3.0 support: The router features a single USB 3.0 port, providing fast data transfer speeds.
- CPU temperature monitoring: The router's CPU temperature monitoring feature ensures that the CPU operates within a safe temperature range.
- Compliance with international standards: The MikroTik RouterBOARD RB5009UG+S+IN complies with CE, EAC, and ROHS standards, ensuring safe and reliable operation.
Ideal For:
- Small and medium-sized businesses
- Home networks
- Gaming communities
- Video streaming services
- Cloud applications
- IoT deployments
- Remote work environments
Summary:
The MikroTik RouterBOARD RB5009UG+S+IN is a high-performance Ethernet router designed for demanding network applications. With its powerful CPU, flexible power options, and robust storage, this router is ideal for small and medium-sized businesses, home networks, and gaming communities. Available at Revolution Technology BD, this router is a reliable choice for high-speed connectivity and advanced networking features.
