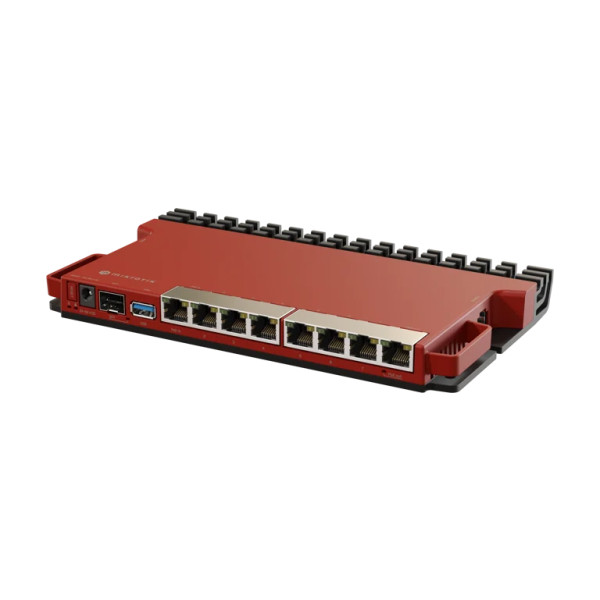

MikroTik L009UiGS-RM Ethernet Router
Contact us for pricing
Product Details
Key Features
High-speed Ethernet connectivity: The L009UiGS-RM Ethernet Router supports 10/100/1000 Ethernet ports for fast data transfer and connectivity.
Powerful CPU and RAM: With a 800 MHz CPU and 512 MB of RAM, the L009UiGS-RM delivers smooth performance and efficient processing.
Dual DC power input: The L009UiGS-RM accepts dual DC power inputs of 24-56 V, ensuring reliable operation in various environments.
PoE support: The L009UiGS-RM supports 802.3af/at PoE, allowing for easy power supply to connected devices.
Compact design: The L009UiGS-RM's compact design makes it ideal for small offices, homes, or other spaces where space is limited.
Easy management: The L009UiGS-RM features a user-friendly interface for easy configuration and management.
High MTBF: The L009UiGS-RM boasts an impressive MTBF of approximately 200,000 hours at 25C, ensuring reliable operation over time.
Wide temperature range: The L009UiGS-RM operates within a wide temperature range of -40°C to 70°C, making it suitable for various environments.
Passive cooling: The L009UiGS-RM features passive cooling, eliminating the need for fans and reducing noise pollution.
USB 3.0 port: The L009UiGS-RM includes a USB 3.0 port for fast data transfer and connectivity.
Serial console port: The L009UiGS-RM features a serial console port for easy configuration and management.
SFP port: The L009UiGS-RM includes an SFP port for fiber connectivity and high-speed data transfer.
Product code | L009UiGS-RM |
Architecture | ARM 32bit |
CPU | IPQ-5018 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
CPU Threads count | 2 |
Switch chip model | 88E6190 |
RouterOS license | 5 |
Operating System | RouterOS v7 |
Size of RAM | 512 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 24-56 V |
Max power consumption | 40 W |
Max power consumption without attachments | 8 W |
PoE in | 802.3af/at |
Cooling type | Passive |
PoE in input Voltage | 24-56 V |
PoE-out | PoE-out ports |
PoE-out ports | Ether8 |
PoE out | Passive PoE |
Low voltage PoE-Out current limit | 1 A |
High voltage PoE-Out current limit | 450 mA |
Max total out (A) | 1 A |
Number of 1G Ethernet ports with PoE-out | 1 |
Number of 10/100/1000 Ethernet ports | 8 |
Fiber | SFP ports |
Number of SFP ports | 1 (2.5G supported) |
Serial console port | RJ45 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB 3.0 type A |
Max USB current (A) | 1.5 |
Other | Mode button |
Certification & Approvals | Certification |
Certification | CE, EAC, ROHS |
IP | 20 |
Description
L009UiGS-RM Ethernet Router
Key Features & Benefits:
- High-speed Ethernet connectivity: The L009UiGS-RM Ethernet Router supports 10/100/1000 Ethernet ports for fast data transfer and connectivity.
- Powerful CPU and RAM: With a 800 MHz CPU and 512 MB of RAM, the L009UiGS-RM delivers smooth performance and efficient processing.
- Dual DC power input: The L009UiGS-RM accepts dual DC power inputs of 24-56 V, ensuring reliable operation in various environments.
- PoE support: The L009UiGS-RM supports 802.3af/at PoE, allowing for easy power supply to connected devices.
- Compact design: The L009UiGS-RM's compact design makes it ideal for small offices, homes, or other spaces where space is limited.
- Easy management: The L009UiGS-RM features a user-friendly interface for easy configuration and management.
- High MTBF: The L009UiGS-RM boasts an impressive MTBF of approximately 200,000 hours at 25C, ensuring reliable operation over time.
- Wide temperature range: The L009UiGS-RM operates within a wide temperature range of -40°C to 70°C, making it suitable for various environments.
- Passive cooling: The L009UiGS-RM features passive cooling, eliminating the need for fans and reducing noise pollution.
- USB 3.0 port: The L009UiGS-RM includes a USB 3.0 port for fast data transfer and connectivity.
- Serial console port: The L009UiGS-RM features a serial console port for easy configuration and management.
- SFP port: The L009UiGS-RM includes an SFP port for fiber connectivity and high-speed data transfer.
Ideal For:
- Small office or home users
- Businesses requiring reliable and secure connectivity
- Users who need high-speed Ethernet connectivity
- Individuals who require easy management and configuration
- Environments where space is limited
- Applications requiring high MTBF and reliability
- Users who need to connect multiple devices
Summary:
The L009UiGS-RM Ethernet Router is a powerful and reliable device suitable for small offices, homes, and businesses. With its high-speed Ethernet connectivity, powerful CPU and RAM, and dual DC power input, it delivers smooth performance and efficient processing. The L009UiGS-RM is also easy to manage and configure, making it an ideal choice for users who require a hassle-free experience. Available at Revolution Technology BD, this router is perfect for those who need reliable and secure connectivity.
