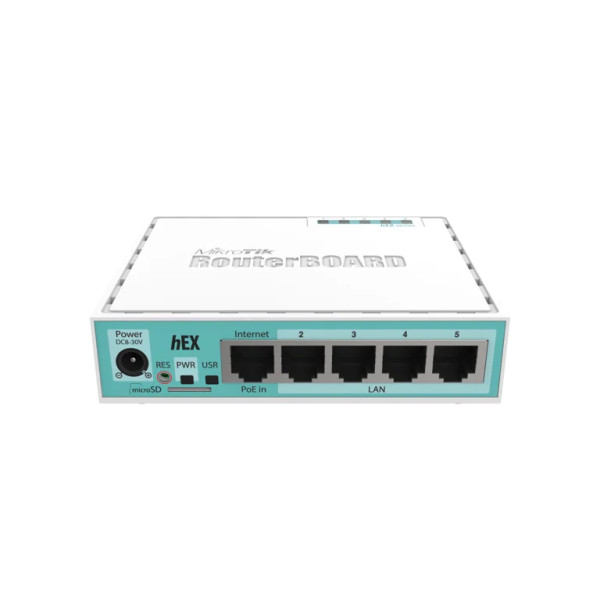

MikroTik RouterBOARD RB750Gr3 (hEX) Ethernet Router

Genuine Product Fast Delivery Easy Returns

Key Features

High-speed internet connectivity: The RouterBOARD RB750Gr3 (hEX) Ethernet Router supports 10/100/1000 Ethernet ports, ensuring fast and reliable internet connectivity.

Compact design: With dimensions of 113x89x28mm, the RB750Gr3 is perfect for small spaces and can be easily mounted on a wall.

Long-lasting performance: The router has an MTBF of approximately 100,000 hours at 25C, ensuring long-lasting performance and reducing the need for frequent replacements.

Easy management: The RouterBOARD RB750Gr3 (hEX) Ethernet Router comes with RouterOS, a user-friendly operating system that makes it easy to manage and configure the router.

Power efficiency: The router has a max power consumption of 10W, making it an energy-efficient option for homes and small businesses.

PoE support: The RB750Gr3 supports passive PoE, making it easy to power devices such as IP cameras and access points.

USB connectivity: The router has one USB port, allowing you to connect external devices such as USB drives and printers.

Memory card support: The RB750Gr3 supports microSD cards, providing additional storage for files and settings.

PCB temperature monitoring: The router has a built-in PCB temperature monitor, ensuring that the device operates within safe temperature ranges.

Voltage monitoring: The RB750Gr3 has a built-in voltage monitor, allowing you to keep track of the router's power supply.

Mode button: The router has a mode button, making it easy to switch between different modes and settings.

Beeper: The RB750Gr3 has a beeper, providing audible notifications for important events and alerts.

Specification

Product code	RB750Gr3
Architecture	MMIPS
CPU	MT7621A
CPU core count	2
CPU nominal frequency	880 MHz
CPU Threads count	4
Switch chip model	MT7621A
Dimensions	113x89x28mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	8-30 V
Max power consumption	10 W
Max power consumption without attachments	5 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	8-30 V
Ethernet	10/100/1000 Ethernet ports
Number of Ethernet ports	5
Peripherals	microSD
Memory card type	microSD
Number of Memory Cards	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Other	PCB temperature monitor
Other	Yes
Other	Voltage Monitor
Other	Yes
Other	Mode button
Other	Yes
Other	Beeper
Other	Yes
Certification & Approvals	CE, EAC, ROHS
IP	IP20

Description

RouterBOARD RB750Gr3 (hEX) Ethernet Router

Key Features & Benefits:

High-speed internet connectivity: The RouterBOARD RB750Gr3 (hEX) Ethernet Router supports 10/100/1000 Ethernet ports, ensuring fast and reliable internet connectivity.
Compact design: With dimensions of 113x89x28mm, the RB750Gr3 is perfect for small spaces and can be easily mounted on a wall.
Long-lasting performance: The router has an MTBF of approximately 100,000 hours at 25C, ensuring long-lasting performance and reducing the need for frequent replacements.
Easy management: The RouterBOARD RB750Gr3 (hEX) Ethernet Router comes with RouterOS, a user-friendly operating system that makes it easy to manage and configure the router.
Power efficiency: The router has a max power consumption of 10W, making it an energy-efficient option for homes and small businesses.
PoE support: The RB750Gr3 supports passive PoE, making it easy to power devices such as IP cameras and access points.
USB connectivity: The router has one USB port, allowing you to connect external devices such as USB drives and printers.
Memory card support: The RB750Gr3 supports microSD cards, providing additional storage for files and settings.
PCB temperature monitoring: The router has a built-in PCB temperature monitor, ensuring that the device operates within safe temperature ranges.
Voltage monitoring: The RB750Gr3 has a built-in voltage monitor, allowing you to keep track of the router's power supply.
Mode button: The router has a mode button, making it easy to switch between different modes and settings.
Beeper: The RB750Gr3 has a beeper, providing audible notifications for important events and alerts.

Ideal For:

Home users who need a reliable and easy-to-use router
Small businesses that require a high-speed and secure internet connection
Internet service providers that need a compact and energy-efficient router
Users who want to connect multiple devices to the internet
Businesses that require PoE support for devices such as IP cameras and access points
Users who need a router with a built-in USB port for connecting external devices
Home users who want to store files and settings on a microSD card

Summary:

The RouterBOARD RB750Gr3 (hEX) Ethernet Router is a compact and energy-efficient device that provides high-speed internet connectivity and easy management. With its 10/100/1000 Ethernet ports, the RB750Gr3 is perfect for homes and small businesses that require a reliable and secure internet connection. The router also supports PoE, USB, and microSD cards, making it a versatile option for a variety of use cases. Available at Revolution Technology BD.
