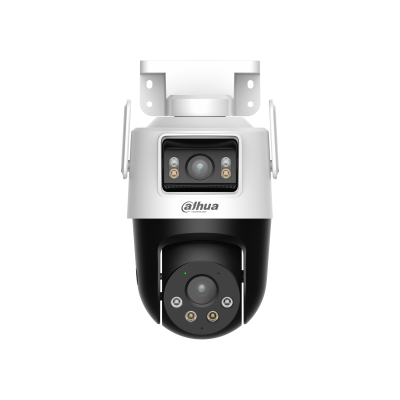

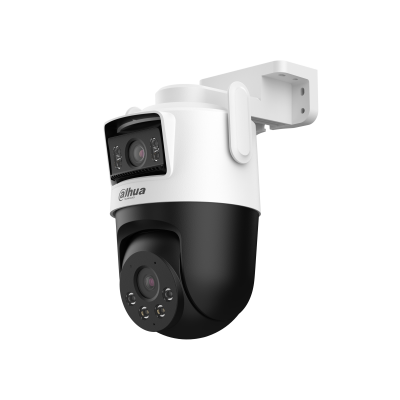

Dahua P3D-3F-PV 3+3MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Camera

Genuine Product Fast Delivery Easy Returns

Key Features

Enhanced Night Vision: The Dahua P3D-3F-PV camera features IR illumination up to 50 m (164.04 ft) for clear images in low-light conditions.

Wide Angle View: With a field of view of up to 110°, the camera provides a wide angle view of the surrounding area.

Weather Resistance: The camera is IP66 rated, making it suitable for outdoor use in harsh weather conditions.

Wide Temperature Range: The camera operates in temperatures ranging from -30 °C to +50 °C (–22 °F to +122 °F), making it suitable for use in various environments.

Long-Lasting Battery Life: The camera's power consumption is as low as 2.3 W, allowing for extended battery life.

Easy Installation: The camera's compact design and easy mounting system make installation a breeze.

Advanced Video Compression: The camera supports H.265 video compression, reducing bandwidth and storage requirements.

Multiple Streaming Options: The camera supports multiple streaming options, including H.265 and H.264, for flexibility and compatibility.

Wide Compatibility: The camera is compatible with a wide range of devices, including iOS and Android smartphones and tablets.

Secure Data Storage: The camera supports micro SD card storage up to 256 GB, ensuring secure and reliable data storage.

Convenient Management: The camera's DMSS management software and mobile client app make it easy to manage and monitor the camera remotely.

Certified for Safety: The camera meets CE certification standards, ensuring it meets safety and regulatory requirements.

Specification

Camera Type	2.8 mm + 6 mm Fixed Lens
Image Sensor	1/2.8" CMOS
Max. Resolution	2304 (H) × 1296 (V)
Illumination Distance (IR)	Up to 30 m (98.43 ft)
Illumination Distance (Warm light)	Up to 20 m (65.62 ft)
Illuminator Number	2 (IR LED); 2 (Warm light)
Angle Adjustment	-10° to 15°
Lens Type	Fixed-focal
Focal Length (2.8 mm Lens)	2.8 mm
Max. Aperture (2.8 mm Lens)	F1.6
Field of View (2.8 mm Lens)	H: 95°; V: 53°; D: 110°
Image Sensor (PT Lens)	1/2.8" CMOS
Max. Resolution (PT Lens)	2304 (H) × 1296 (V)
Illumination Distance (IR PT Lens)	Up to 50 m (164.04 ft)
Illumination Distance (Warm light PT Lens)	Up to 40 m (131.23 ft)
Illuminator Number (PT Lens)	2 (IR LED); 2 (Warm light)
Angle Adjustment (PT Lens)	Pan: 0° to 352°; Tilt: 0° to 90°
Lens Type (PT Lens)	Fixed-focal
Focal Length (PT Lens)	6 mm
Max. Aperture (PT Lens)	F1.6
Field of View (PT Lens)	H: 53°; V: 29°; D: 62°
Camera Type (3.6 mm Lens)	3.6 mm + 3.6 mm Fixed Lens
Image Sensor (3.6 mm Lens)	1/2.8" CMOS
Max. Resolution (3.6 mm Lens)	2304 (H) × 1296 (V)
Illumination Distance (IR 3.6 mm Lens)	Up to 30 m (98.43 ft)
Illumination Distance (Warm light 3.6 mm Lens)	Up to 30 m (98.43 ft)
Illuminator Number (3.6 mm Lens)	2 (IR LED); 2 (Warm light)
Angle Adjustment (3.6 mm Lens)	-10° to 15°
Lens Type (3.6 mm Lens)	Fixed-focal
Focal Length (3.6 mm Lens)	3.6mm
Max. Aperture (3.6 mm Lens)	F1.6
Field of View (3.6 mm Lens)	H: 86°; V: 46°; D: 103°
Image Sensor (PT 3.6 mm Lens)	1/2.8" CMOS
Max. Resolution (PT 3.6 mm Lens)	2304 (H) × 1296 (V)
Illumination Distance (IR PT 3.6 mm Lens)	Up to 30 m (98.43 ft)
Illumination Distance (Warm light PT 3.6 mm Lens)	Up to 30 m (98.43 ft)
Illuminator Number (PT 3.6 mm Lens)	2 (IR LED); 2 (Warm light)
Angle Adjustment (PT 3.6 mm Lens)	Pan: 0° to 352°; Tilt: 0° to 90°
Lens Type (PT 3.6 mm Lens)	Fixed-focal
Focal Length (PT 3.6 mm Lens)	3.6mm
Max. Aperture (PT 3.6 mm Lens)	F1.6
Field of View (PT 3.6 mm Lens)	H: 86°; V: 46°; D: 103°
Intelligence	Human Detection, Vehicle Detection
Audio and Video	Yes
Video Compression	H.265
Video Frame Rate	Main stream: 2304 × 1296@15 fps, sub stream: 640 × 360@15 fps
Video Bit Rate	H.265: 512 kbps–4096 kbps
Day/Night	Auto(ICR)/Color/B/W
WDR	DWDR
Motion Detection	Yes
Image Rotation	0°/180°
Built-in MIC	Yes, built-in Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a
Network Port	RJ-45 (10/100 Base-T)
Wi-Fi	IEEE 802.11b/g/n/ax 2.4000~2.4835 GHz, 2.4G,≤20dBm
Wi-Fi Pairing	Bluetooth pairing
Storage	Micro SD card (support max. 256 GB)
Management Software	DMSS
Mobile Client	iOS;Android
Certifications	CE
Power Supply	12 VDC
Power Consumption	Basic: 2.3 W, Max.: 10 W (pulling stream+ IR + siren and light active deterrence)
Operating Temperature	-30 °C to +50 °C (–22 °F to +122 °F)
Operating Humidity	≤95% (RH), non-condensing
Protection	IP66
Casing Material	Plastic
Product Dimensions	159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H)
Net Weight	585 g (1.29 lb)

Description

Dahua P3D-3F-PV 3+3MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Camera

Key Features & Benefits:

Enhanced Night Vision: The Dahua P3D-3F-PV camera features IR illumination up to 50 m (164.04 ft) for clear images in low-light conditions.
Wide Angle View: With a field of view of up to 110°, the camera provides a wide angle view of the surrounding area.
Weather Resistance: The camera is IP66 rated, making it suitable for outdoor use in harsh weather conditions.
Wide Temperature Range: The camera operates in temperatures ranging from -30 °C to +50 °C (–22 °F to +122 °F), making it suitable for use in various environments.
Long-Lasting Battery Life: The camera's power consumption is as low as 2.3 W, allowing for extended battery life.
Easy Installation: The camera's compact design and easy mounting system make installation a breeze.
Advanced Video Compression: The camera supports H.265 video compression, reducing bandwidth and storage requirements.
Multiple Streaming Options: The camera supports multiple streaming options, including H.265 and H.264, for flexibility and compatibility.
Wide Compatibility: The camera is compatible with a wide range of devices, including iOS and Android smartphones and tablets.
Secure Data Storage: The camera supports micro SD card storage up to 256 GB, ensuring secure and reliable data storage.
Convenient Management: The camera's DMSS management software and mobile client app make it easy to manage and monitor the camera remotely.
Certified for Safety: The camera meets CE certification standards, ensuring it meets safety and regulatory requirements.

Ideal For:

Homeowners who want to enhance home security
Business owners who want to monitor their premises
Individuals who want to keep an eye on their property
Security professionals who require high-quality video footage
Those who want to deter intruders and protect their assets
Users who need to monitor multiple locations remotely
Individuals who want to enhance their home's safety and security

Summary:

The Dahua P3D-3F-PV 3+3MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Camera is a high-quality security camera designed for outdoor use. With its advanced features, including enhanced night vision, wide angle view, and weather resistance, this camera provides reliable and clear footage in various environments. The camera is easy to install and manage, making it a great option for homeowners, business owners, and security professionals. Revolution Technology BD offers this camera for purchase, ensuring you can enhance your home's or business's security with confidence.
