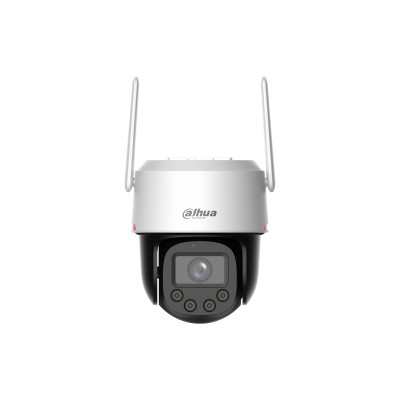

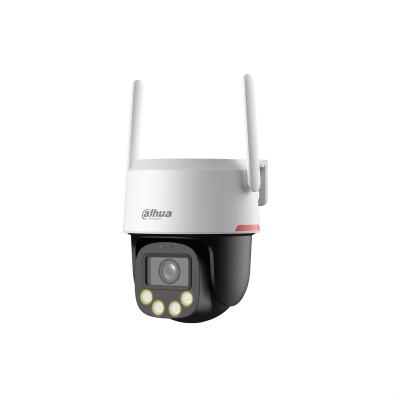

Dahua IPC-PT2549DC1-SW-PV 5MP WizColor Outdoor Wi-Fi Pan & Tilt Network Camera
Contact us for pricing
Product Details
Key Features
Enhanced Night Vision: With a minimum illumination of 0.0005 lux@F1.0 (Color, 30 IRE), this camera can capture clear images even in low-light environments.
Wide Field of View: The camera's 89.5° horizontal and 51° vertical field of view allows for comprehensive coverage of large areas.
Pan and Tilt Function: With a pan range of 0° to 345° and a tilt range of 0° to 90°, you can easily adjust the camera's view to focus on specific areas.
Smart Event Detection: The camera's human and vehicle detection features enable smart event alerts, allowing you to stay informed and take action when necessary.
High-Quality Video: The camera supports H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H, and MJPEG video compression, ensuring high-quality video streaming.
Weather Resistance: With an IP66 rating and TVS 2000 V lightning proof, surge protection, and voltage transient protection, this camera can withstand harsh weather conditions.
Easy Installation and Configuration: The camera's RJ-45 (10/100 Base-T) network port and Wi-Fi standard support make installation and configuration a breeze.
Abnormal Sound Alarm: The camera's abnormal sound alarm feature alerts you to potential security threats, ensuring your premises remain secure.
Wide Compatibility: The camera is compatible with various devices, including iOS and Android smartphones and tablets, as well as DMSS and NVR management software.
Secure Data Storage: The camera supports micro SD card storage up to 512 GB and FTP, ensuring secure and reliable data storage.
Power Efficiency: The camera's basic power consumption is 3 W, with a maximum power consumption of 9 W (basic power consumption + WDR + light on + PTZ operation), making it an energy-efficient solution.
Durable Design: The camera's durable design ensures a long lifespan, with a product weight of 0.60 kg (1.32 lb) and dimensions of 153.5 mm × Φ129.3 mm (6.04" × Φ5.09").
Image Sensor | 1/1.8" CMOS |
Max. Resolution | 2880 (H) × 1620 (V) |
Electronic Shutter Speed | 1–1/100,000 s |
Min. Illumination | 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on) |
Illumination Distance | 30 m (98.43 ft) (Warm light) |
Illuminator Number | 4 (Warm light) |
Lens | Focal Length: 3.6 mm, Max. Aperture: F1.0 |
Field of View | H: 89.5°; V: 51°; D: 96° |
PTZ | Pan: 0° to 345°; Tilt: 0° to 90° |
Smart Event | Human Detection: Yes, Vehicle Detection: Yes |
Video | Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG(Sub Stream 1) |
Video Frame Rate | Main stream: 5M/3M/720p@(1–25/30 fps), Sub stream 1: 640 × 360/QVGA@(1–25/30 fps) |
Day/Night | Color/B/W, WDR: 120 dB |
Motion Detection | Yes |
Image Rotation | 180° |
Audio | PCM, G.711A, G.711Mu, Built-in MIC: Yes, Built-in Speaker: Yes |
Network | RJ-45 (10/100 Base-T), Wi-Fi Standard: IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax |
Wi-Fi Frequency Range | 2.4 GHz |
Wi-Fi Transmission Rate | 229 Mbps |
Wi-Fi Pairing | Bluetooth pairing |
Max. Transmission Power | ≤20 dBm@2,400–2,483.5 MHz |
Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; SDK |
Storage | Micro SD card (Up to 512 GB); FTP |
Management Software | DMSS; NVR |
Mobile Client | iOS; Android |
Function | Abnormal Sound Alarm: Yes |
Certification | CE |
Power | 12 VDC, 1 A ± 10% |
Power Consumption | Basic: 3 W, Max.: 9 W (Basic power consumption + WDR + light on + PTZ operation) |
Environment | Operating Temperature: –30 °C to +55 °C (–22 °F to +131 °F) |
Operating Humidity | ≤95% |
Protection | IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection |
Structure | Product Dimensions: 153.5 mm × Φ129.3 mm (6.04" × Φ5.09"), Net Weight: 0.60 kg (1.32 lb) |
Description
Dahua IPC-PT2549DC1-SW-PV 5MP WizColor Outdoor Wi-Fi Pan & Tilt Network Camera
Key Features & Benefits:
- Enhanced Night Vision: With a minimum illumination of 0.0005 lux@F1.0 (Color, 30 IRE), this camera can capture clear images even in low-light environments.
- Wide Field of View: The camera's 89.5° horizontal and 51° vertical field of view allows for comprehensive coverage of large areas.
- Pan and Tilt Function: With a pan range of 0° to 345° and a tilt range of 0° to 90°, you can easily adjust the camera's view to focus on specific areas.
- Smart Event Detection: The camera's human and vehicle detection features enable smart event alerts, allowing you to stay informed and take action when necessary.
- High-Quality Video: The camera supports H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H, and MJPEG video compression, ensuring high-quality video streaming.
- Weather Resistance: With an IP66 rating and TVS 2000 V lightning proof, surge protection, and voltage transient protection, this camera can withstand harsh weather conditions.
- Easy Installation and Configuration: The camera's RJ-45 (10/100 Base-T) network port and Wi-Fi standard support make installation and configuration a breeze.
- Abnormal Sound Alarm: The camera's abnormal sound alarm feature alerts you to potential security threats, ensuring your premises remain secure.
- Wide Compatibility: The camera is compatible with various devices, including iOS and Android smartphones and tablets, as well as DMSS and NVR management software.
- Secure Data Storage: The camera supports micro SD card storage up to 512 GB and FTP, ensuring secure and reliable data storage.
- Power Efficiency: The camera's basic power consumption is 3 W, with a maximum power consumption of 9 W (basic power consumption + WDR + light on + PTZ operation), making it an energy-efficient solution.
- Durable Design: The camera's durable design ensures a long lifespan, with a product weight of 0.60 kg (1.32 lb) and dimensions of 153.5 mm × Φ129.3 mm (6.04" × Φ5.09").
Ideal For:
- Homeowners seeking enhanced security and peace of mind
- Business owners requiring comprehensive surveillance and monitoring
- Individuals seeking a reliable and easy-to-use security camera
- Those looking for a weather-resistant and durable camera
- Users requiring high-quality video streaming and smart event detection
- Individuals seeking a camera with wide compatibility and secure data storage
- Home and business owners requiring a power-efficient solution
Summary:
The Dahua IPC-PT2549DC1-SW-PV 5MP WizColor Outdoor Wi-Fi Pan & Tilt Network Camera is a comprehensive security solution for homes and businesses. With its enhanced night vision, wide field of view, and pan and tilt function, this camera provides unparalleled surveillance capabilities. Its smart event detection, high-quality video, and weather resistance make it an ideal choice for those seeking a reliable and durable camera. Revolution Technology BD offers this camera at an affordable price, making it an excellent investment for anyone seeking enhanced security and peace of mind.
