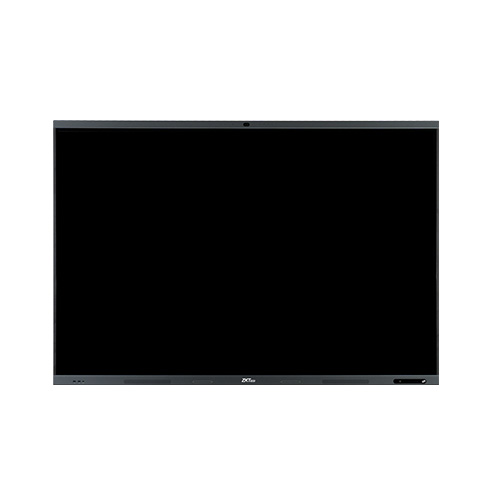

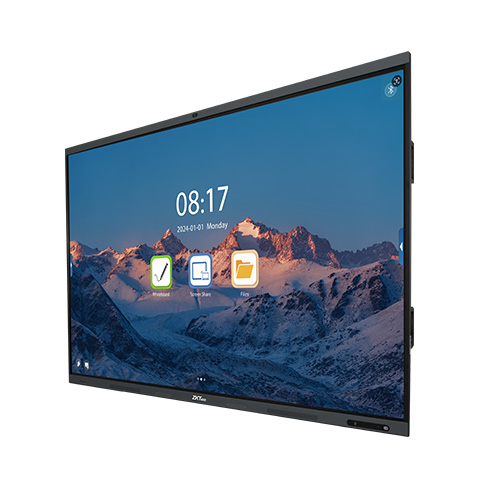

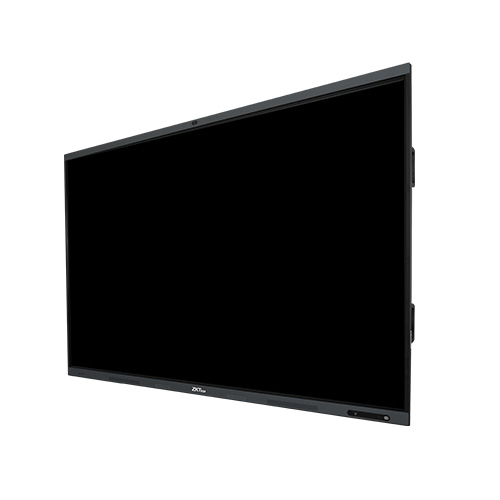

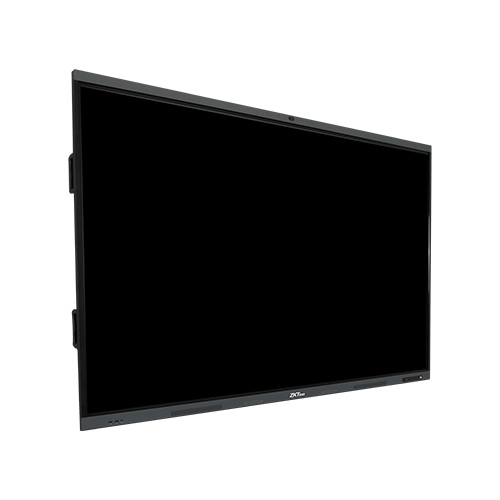

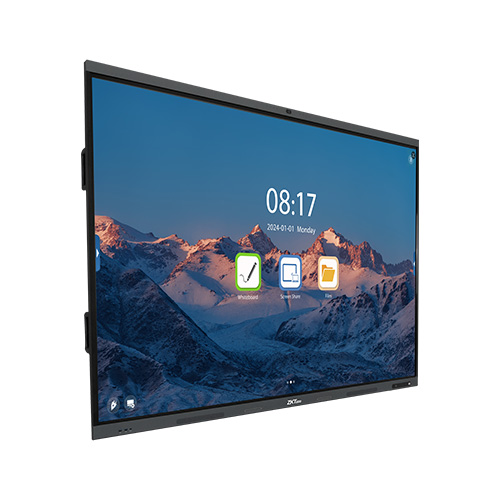

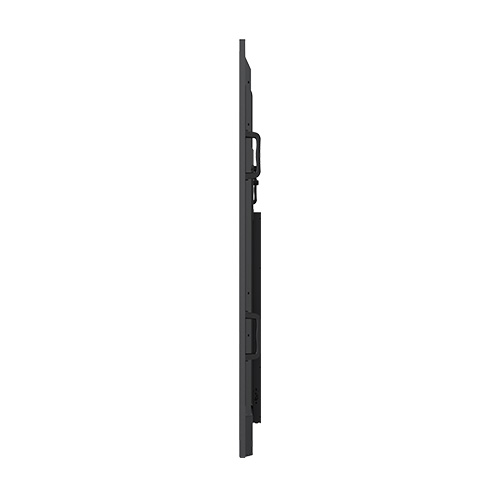

ZKTeco SC02-I386A 86 Inch 4K UHD Interactive Flat Panel Display
Contact us for pricing
Product Details
Key Features
Model: SC02-I386A
86" UHD 4K Display with
Resolution of 3840×2160
RAM: 8GB, Built-in Storage:
128GB
Speaker: Built-in 2x 20W+1x
20W Loudspeaker
Built-in 48 MP Camera,
Advanced Infrared Touch Technology
|
Specification |
Detail |
|
Model |
SC02-I386A |
|
Screen Size |
86″ |
|
Panel Type |
IPS |
|
Backlight |
D-LED |
|
Backlight Lifetime |
~50,000 hours |
|
Native Resolution |
3840 × 2160 (4K UHD) |
|
Brightness (Typical) |
450 cd/m² |
|
Contrast Ratio |
1200:1 |
|
Response Time |
8 ms (typical) |
|
Refresh Rate |
60 Hz |
|
Aspect Ratio |
16:9 |
|
Viewing Angle |
178° horizontal / 178° vertical |
|
Display Colors |
1.07 Billion (8-bit + FRC) |
|
Bonding Technology |
Zero-gap bonding between tempered
glass and screen |
|
Touch Technology |
Advanced infrared touch |
|
Touch Points |
Up to 50 multi-touch points |
|
Touch Response Time |
≤ 3 ms (single), ≤ 3 ms (multi) |
|
Touch Accuracy |
1 mm over 90% of central area |
|
Anti‑Glare Surface |
High transparency, smooth,
anti-glare tempered glass |
|
Glass Hardness |
9H (pencil hardness), 7 Mohs
(tempered glass) |
|
Writing Height |
≤ 1 mm |
|
CPU |
Quad-core A73 + Quad-core A53 |
|
GPU |
Mali G52 MP8 |
|
RAM |
8 GB |
|
Storage (ROM) |
128 GB |
|
Operating System |
Android 14 / Windows 11 (optional) |
|
HDMI / Video Ports |
HDMI OUT ×1, HDMI IN (ARC) ×1,
HDMI IN (CEC) ×2, VGA ×1 |
|
Audio Ports |
Audio In ×1, Audio Out ×1 |
|
Network / LAN |
LAN IN/OUT ×2 |
|
USB Ports |
USB 3.0 ×2, USB 2.0 ×1, Touch-USB
×2 |
|
RS-232 |
1 port |
|
Wireless |
Wi-Fi 6 (802.11 ax/ac/b/g/n),
Bluetooth 5.0, NFC (ISO/IEC 14443 A & B) |
|
Camera |
Built-in 48 MP with face tracking
& sound localization |
|
Microphones |
8-mic array, 3D noise reduction,
AEC & AGC support |
|
Speakers |
2 × 20W + 1 × 20W (subwoofer
optional) |
|
Dimensions (W × D × H) |
1950.4 × 86.9 × 1174 mm |
|
Weight |
66.85 kg |
|
Power Consumption |
278 W (typical); standby ≤ 0.5 W;
Power supply: 100–240 V AC, 50/60 Hz |
|
Operating Conditions |
Temperature: 0°C–40°C; Humidity:
20%–80% RH |
|
Storage Conditions |
Temperature: 10°C–60°C; Humidity:
10%–60% RH |
|
Build Material |
Aluminum alloy + sheet metal;
Blue-grey color |
|
Warranty |
1 year |
|
Included Accessories |
Power cable, USB cable, HDMI
cable, 2 stylus pens, eraser, remote, wall mount |
