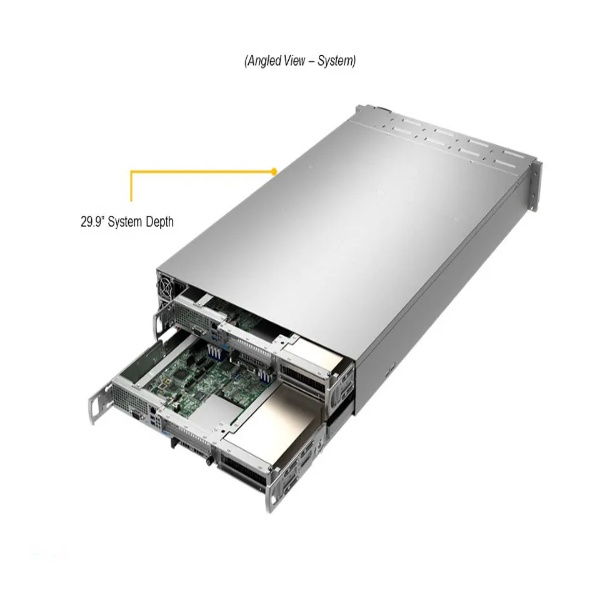

Supermicro SYS-210GP-DNR 2U GPU Server
Contact us for pricing
Product Details
Key Features
High-Performance CPU Platform: Equipped with up to 40 cores and 80 threads on a single LGA-4189 socket, the 3rd Gen Intel Xeon Scalable processors deliver 60MB cache and support 270W TDP for demanding workloads.
Scalable GPU Configurations: Supports up to three double-width or single-width NVIDIA GPUs such as A100, A40, or RTX A4500, with PCIe 4.0 x16 CPU-to-GPU interconnect for low-latency compute.
Massive Memory Capacity: 8 DIMM slots per node allow up to 1TB of ECC DDR4 3200MT/s memory, ensuring data integrity and high bandwidth for memory-intensive tasks.
Robust Networking: Integrated AIOM network connectivity provides high-speed, low-latency data transfer essential for AI and HPC clusters.
Secure Firmware and Boot: Trusted Platform Module 2.0 and cryptographically signed firmware guarantee secure boot and automatic firmware recovery.
Advanced Thermal Management: 7+1 phase-switching voltage regulator and PWM fan connectors with tachometer monitoring maintain optimal temperatures under load.
Comprehensive Management Suite: SuperCloud Composer, SSM, SUM, SD5, SDO, TAS, and SAA enable full lifecycle management from deployment to monitoring.
Certified Operating System Support: Pre-tested on Hypervisor 8.2.1, Oracle Linux 8.3, RHEL 8.4, Windows Server 2019, and 2022 for versatile deployment.
Flexible Power Recovery: ACPI power management and power-on mode for AC recovery ensure minimal downtime during power interruptions.
Enterprise-Grade Security: NIST 800-193 compliant Root of Trust and TPM 2.0 provide tamper-proof security for critical workloads.
High-Availability Design: Dual fan paths, redundant power supplies, and system lockdown features support continuous operation in data centers.
Future-Proof Expandability: PCIe 4.0 slots and up to 3 GPUs allow scaling as AI models grow without redesigning the chassis.
Product SKUs | SYS-210GP-DNR |
Motherboard | Super X12SPG-NF |
Processor (per Node) | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors |
Core Count | Up to 40C/80T; Up to 60MB Cache |
Supports up to 270W TDP CPUs (Air Cooled) | |
GPU (per Node) | Max GPU Count Up to 3 double-width or 3 single-width GPUs |
Supported GPU | NVIDIA PCIe: A10, A100, A30, A40, RTX A4000, RTX A4500 |
View GPU Options | |
CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
GPU-GPU Interconnect | PCIe Certification |
System Memory (per Node) | Memory Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
View Memory Options | Memory Voltage 1.2V |
On-Board Devices (per Node) | Network Connectivity Via AIOM |
View AIOM Options | |
View AOC Options | |
Input / Output (per Node) | Video1 VGA port |
System BIOS | BIOS Type AMI 32MB SPI Flash EEPROM |
Management Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) |
Power configurations | Power-on mode for AC power recovery ACPI Power Management |
SecurityHardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown PC Health Monitoring CPU 7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Certifications | Operating Systems Hypervisor 8.2.1, Oracle Linux 8.3, RHEL 8.4, Windows Server 2019, Windows Server 2022 |
Description
Supermicro SYS-210GP-DNR 2U GPU Server
Key Features & Benefits:
- High-Performance CPU Platform: Equipped with up to 40 cores and 80 threads on a single LGA-4189 socket, the 3rd Gen Intel Xeon Scalable processors deliver 60MB cache and support 270W TDP for demanding workloads.
- Scalable GPU Configurations: Supports up to three double-width or single-width NVIDIA GPUs such as A100, A40, or RTX A4500, with PCIe 4.0 x16 CPU-to-GPU interconnect for low-latency compute.
- Massive Memory Capacity: 8 DIMM slots per node allow up to 1TB of ECC DDR4 3200MT/s memory, ensuring data integrity and high bandwidth for memory-intensive tasks.
- Robust Networking: Integrated AIOM network connectivity provides high-speed, low-latency data transfer essential for AI and HPC clusters.
- Secure Firmware and Boot: Trusted Platform Module 2.0 and cryptographically signed firmware guarantee secure boot and automatic firmware recovery.
- Advanced Thermal Management: 7+1 phase-switching voltage regulator and PWM fan connectors with tachometer monitoring maintain optimal temperatures under load.
- Comprehensive Management Suite: SuperCloud Composer, SSM, SUM, SD5, SDO, TAS, and SAA enable full lifecycle management from deployment to monitoring.
- Certified Operating System Support: Pre-tested on Hypervisor 8.2.1, Oracle Linux 8.3, RHEL 8.4, Windows Server 2019, and 2022 for versatile deployment.
- Flexible Power Recovery: ACPI power management and power-on mode for AC recovery ensure minimal downtime during power interruptions.
- Enterprise-Grade Security: NIST 800-193 compliant Root of Trust and TPM 2.0 provide tamper-proof security for critical workloads.
- High-Availability Design: Dual fan paths, redundant power supplies, and system lockdown features support continuous operation in data centers.
- Future-Proof Expandability: PCIe 4.0 slots and up to 3 GPUs allow scaling as AI models grow without redesigning the chassis.
Ideal For:
- AI research clusters
- High-performance computing labs
- Machine learning model training
- Deep learning inference servers
- Enterprise data analytics
- GPU-accelerated simulations
- Hybrid cloud edge deployments
Summary:
The Supermicro SYS-210GP-DNR 2U GPU Server delivers a powerful single-socket Intel Xeon platform with up to 40 cores, 80 threads, and 60MB cache, paired with support for three high-end NVIDIA GPUs. With 1TB of ECC DDR4 memory, advanced thermal management, and secure firmware, it is ideal for AI research, HPC, and enterprise analytics. Revolution Technology BD stocks this robust, future-proof server ready for deployment in demanding data center environments.
