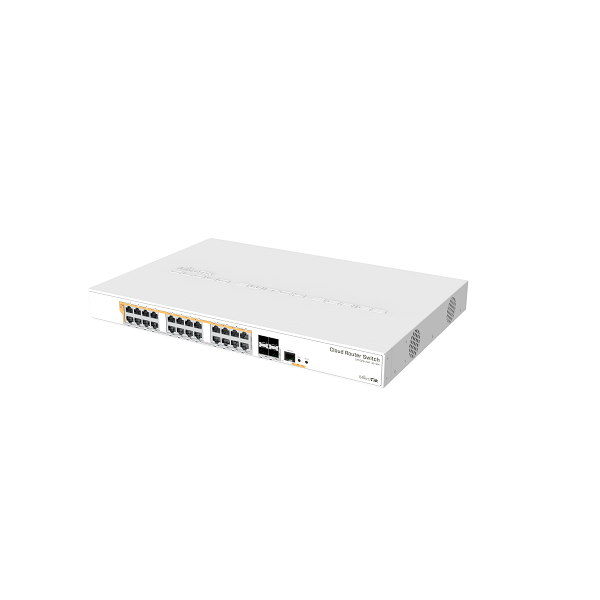

MIKROTIK CRS328-24P-4S+RM 24 PoE 10/100/1000 4 SFP+ Ports Case Router Switch
Contact us for pricing
Product Details
Key Features
High Performance ARM CPU: Powered by a 98DX3236 ARM 32bit CPU running at 800 MHz, ensuring smooth routing and switching tasks.
Robust PoE Capability: 24 PoE+ ports deliver up to 1000 mA at 18‑30 V or 450 mA at 30‑57 V, totaling 20 A of power for devices.
Scalable Fiber Connectivity: Four SFP+ ports support 10/100/1000 Mbps, ideal for uplinks and inter‑switch links.
Large Memory Footprint: 512 MB RAM and 16 MB flash provide ample space for RouterOS and custom scripts.
Dual Fan Cooling: Two fans maintain optimal temperature even under full load, enhancing reliability.
Wide Power Input Range: Accepts 100‑240 V AC, making it suitable for global deployments.
Long MTBF: Approximately 200,000 hours at 25 °C guarantees extended uptime.
Comprehensive Monitoring: Built‑in CPU, PCB, voltage, and current monitors enable proactive maintenance.
Compact Form Factor: Dimensions of 443 × 300 × 44 mm fit easily in standard rack or wall mounts.
Certified for Safety: CE, EAC, and ROHS certifications ensure compliance with international safety standards.
Product code | CRS328-24P-4S+RM |
Architecture | ARM 32bit |
CPU | 98DX3236 |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
Switch chip model | 98DX3236 |
Dimensions | 443 x 300 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS / SwitchOS |
Size of RAM | 512 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200,000 hours at 25°C |
Tested ambient temperature | -20°C to 60°C |
Number of AC inputs | 1 |
AC input range | 100-240 |
Max power consumption | 494 W |
Max power consumption without attachments | 44 W |
Cooling type | 2 fans |
PoE-out ports | Ether1-Ether24 |
PoE out | 802.3af/at |
Max out per port output (input 18-30 V) | 1000 mA |
Max out per port output (input 30-57 V) | 450 mA |
Max total out (A) | 20 |
10/100/1000 Ethernet ports | 24 |
SFP+ ports | 4 |
Serial console port | RJ45 |
CPU temperature monitor | Yes |
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Mode button | Yes |
Certification | CE, EAC, ROHS |
IP | IP00 |
Description
MIKROTIK CRS328-24P-4S+RM 24 PoE 10/100/1000 4 SFP+ Ports Case Router Switch
Key Features & Benefits:
- High Performance ARM CPU: Powered by a 98DX3236 ARM 32bit CPU running at 800 MHz, ensuring smooth routing and switching tasks.
- Robust PoE Capability: 24 PoE+ ports deliver up to 1000 mA at 18‑30 V or 450 mA at 30‑57 V, totaling 20 A of power for devices.
- Scalable Fiber Connectivity: Four SFP+ ports support 10/100/1000 Mbps, ideal for uplinks and inter‑switch links.
- Large Memory Footprint: 512 MB RAM and 16 MB flash provide ample space for RouterOS and custom scripts.
- Dual Fan Cooling: Two fans maintain optimal temperature even under full load, enhancing reliability.
- Wide Power Input Range: Accepts 100‑240 V AC, making it suitable for global deployments.
- Long MTBF: Approximately 200,000 hours at 25 °C guarantees extended uptime.
- Comprehensive Monitoring: Built‑in CPU, PCB, voltage, and current monitors enable proactive maintenance.
- Compact Form Factor: Dimensions of 443 × 300 × 44 mm fit easily in standard rack or wall mounts.
- Certified for Safety: CE, EAC, and ROHS certifications ensure compliance with international safety standards.
Ideal For:
- Enterprise network core switches
- Data center aggregation points
- Campus LAN deployments
- Industrial control networks
- High‑density PoE installations
- Telecom infrastructure
- Managed service providers
Summary:
The MIKROTIK CRS328‑24P‑4S+RM is a high‑performance 24‑port PoE+ router‑switch with four SFP+ uplinks, powered by an ARM 32bit CPU at 800 MHz. It offers 512 MB RAM, 16 MB flash, dual‑fan cooling, and extensive monitoring, making it ideal for enterprise, data center, and telecom applications. With CE, EAC, and ROHS certifications and a 200,000‑hour MTBF, it delivers reliability and compliance. Available now at Revolution Technology BD.
