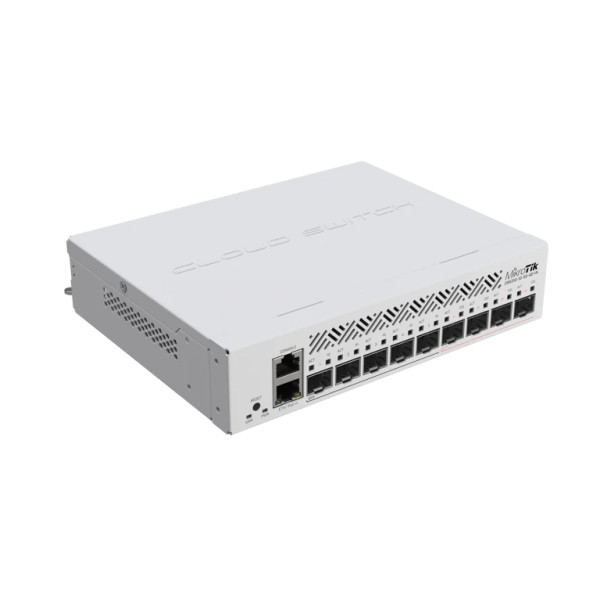

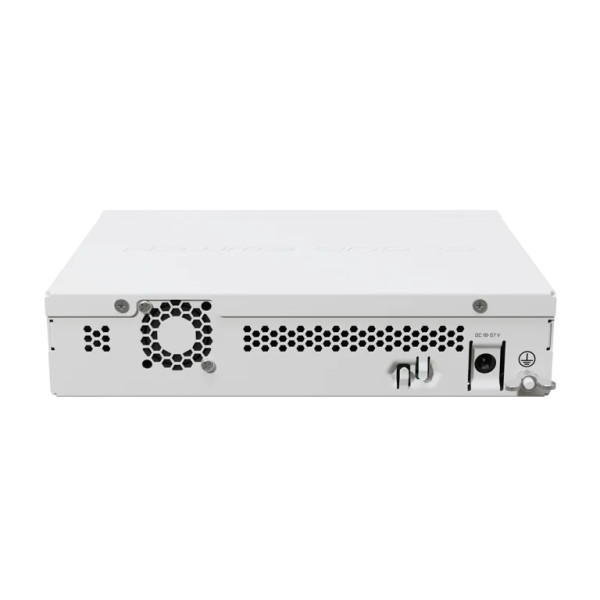

MikroTik Cloud Core Router Switch CRS310-1G-5S-4S+IN

Genuine Product Fast Delivery Easy Returns

Key Features

High-performance networking: The MikroTik Cloud Core Router Switch CRS310-1G-5S-4S+IN features a 2-core CPU with a nominal frequency of 800 MHz, making it ideal for demanding network applications.

Advanced switch capabilities: With 5 SFP ports and 4 SFP+ ports, this device offers a wide range of connectivity options for your network infrastructure.

Powerful routing capabilities: The CRS310-1G-5S-4S+IN supports RouterOS v7 and SwitchOS, providing advanced routing features and flexibility.

Compact design: Measuring 200 x 166 x 44 mm, this device is perfect for small or medium-sized networks where space is limited.

Robust temperature monitoring: The CRS310-1G-5S-4S+IN features CPU temperature monitoring, PCB temperature monitoring, and voltage monitoring for optimal performance and reliability.

PoE support: This device supports PoE (Power over Ethernet) with a maximum power consumption of 20 W, making it ideal for powering devices over a network cable.

High MTBF: With an MTBF of approximately 200,000 hours at 25°C, this device is designed to provide reliable operation over an extended period.

Wide operating temperature range: The CRS310-1G-5S-4S+IN operates within a wide temperature range of -40°C to 70°C, making it suitable for deployment in various environments.

Certified for safety and compliance: This device meets CE, EAC, and ROHS certification standards, ensuring compliance with regulatory requirements and safety standards.

Flexible power options: The CRS310-1G-5S-4S+IN supports two DC inputs with a voltage range of 18-57 V, providing flexibility in power supply options.

Compact design with fan cooling: The device features a compact design with a single fan for cooling, making it ideal for small or medium-sized networks where space is limited.

Advanced switch chip model: The CRS310-1G-5S-4S+IN features a 98DX226S switch chip model, providing advanced switch capabilities and performance.

Specification

Product code	CRS310-1G-5S-4S+IN
Architecture	ARM 32bit
CPU	98DX226S
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX226S
Dimensions	200 x 166 x 44 mm
RouterOS license	5
Operating System	RouterOS v7 / SwitchOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Powering	Number of DC inputs
Number of DC inputs	2
DC jack input Voltage	18-57 V
Max power consumption	20 W
Max power consumption without attachments	8 W
PoE in	Yes
PoE in input Voltage	18-57 V
Cooling type	1 fan
PoE in input Voltage	18-57 V
Ethernet	10/100/1000 Ethernet ports
Number of Ethernet ports	1
Fiber	SFP ports
Number of SFP ports	5
SFP+ ports	4
Peripherals	Serial console port
Serial console port	RJ45
Other	CPU temperature monitor
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals	Certification
Certification	CE, EAC, ROHS
IP	20

Description

MikroTik Cloud Core Router Switch CRS310-1G-5S-4S+IN

Key Features & Benefits:

High-performance networking: The MikroTik Cloud Core Router Switch CRS310-1G-5S-4S+IN features a 2-core CPU with a nominal frequency of 800 MHz, making it ideal for demanding network applications.
Advanced switch capabilities: With 5 SFP ports and 4 SFP+ ports, this device offers a wide range of connectivity options for your network infrastructure.
Powerful routing capabilities: The CRS310-1G-5S-4S+IN supports RouterOS v7 and SwitchOS, providing advanced routing features and flexibility.
Compact design: Measuring 200 x 166 x 44 mm, this device is perfect for small or medium-sized networks where space is limited.
Robust temperature monitoring: The CRS310-1G-5S-4S+IN features CPU temperature monitoring, PCB temperature monitoring, and voltage monitoring for optimal performance and reliability.
PoE support: This device supports PoE (Power over Ethernet) with a maximum power consumption of 20 W, making it ideal for powering devices over a network cable.
High MTBF: With an MTBF of approximately 200,000 hours at 25°C, this device is designed to provide reliable operation over an extended period.
Wide operating temperature range: The CRS310-1G-5S-4S+IN operates within a wide temperature range of -40°C to 70°C, making it suitable for deployment in various environments.
Certified for safety and compliance: This device meets CE, EAC, and ROHS certification standards, ensuring compliance with regulatory requirements and safety standards.
Flexible power options: The CRS310-1G-5S-4S+IN supports two DC inputs with a voltage range of 18-57 V, providing flexibility in power supply options.
Compact design with fan cooling: The device features a compact design with a single fan for cooling, making it ideal for small or medium-sized networks where space is limited.
Advanced switch chip model: The CRS310-1G-5S-4S+IN features a 98DX226S switch chip model, providing advanced switch capabilities and performance.

Ideal For:

Small to medium-sized businesses
Home networks
Enterprise networks
Data centers
Cloud infrastructure
Network administrators
IT professionals

Summary:

The MikroTik Cloud Core Router Switch CRS310-1G-5S-4S+IN is a high-performance networking device designed for demanding network applications. With its 2-core CPU, advanced switch capabilities, and powerful routing features, this device is ideal for small to medium-sized businesses, home networks, and enterprise networks. Its compact design, robust temperature monitoring, and PoE support make it a reliable choice for various network environments. Available at Revolution Technology BD.
