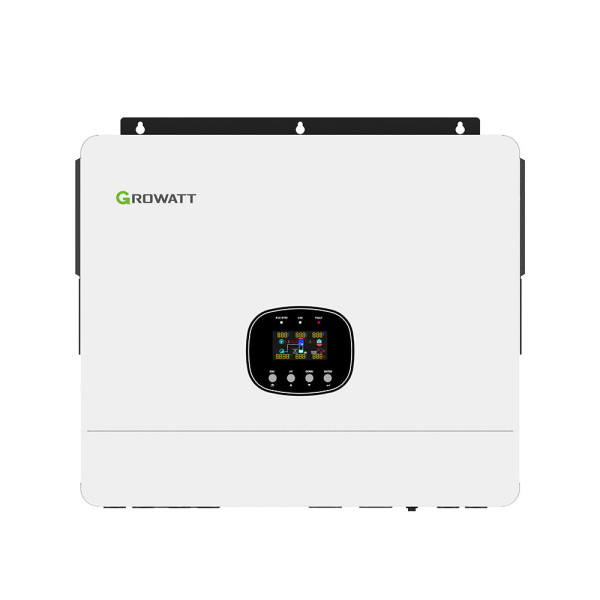

Growatt 12kW Off Grid Hybrid Solar Inverter

Genuine Product Fast Delivery Easy Returns

Key Features

High Power Output: Delivers a robust 12kW output, ideal for large-scale off-grid applications.

Dual MPPT Trackers: Two MPPT trackers optimize solar harvesting across a 60V–480V range.

Wide PV Input Capacity: Handles up to 15kW PV input, ensuring flexibility with larger arrays.

Efficient Power Conversion: Up to 97.5% efficiency reduces energy loss and maximizes savings.

Battery Versatility: Supports Lithium, Lead‑acid, and GEL batteries at 48V for diverse storage needs.

High Current Handling: Supports 190A–280A charge/discharge, accommodating fast battery cycling.

Robust Communication: CAN, RS485, WiFi, and 4G options for seamless monitoring and control.

Parallel Scalability: Can be paralleled with up to 9 units, scaling to 108kW for larger projects.

Compact Design: Dimensions of 550mm x 465mm x 150mm keep installation footprint minimal.

Durable Build: IP20 rating protects against dust and splashes in typical outdoor settings.

Wide Temperature Range: Operates reliably from -25°C to +60°C, suitable for varied climates.

Lightweight Construction: Weighs only 22kg, simplifying transport and mounting.

Specification

Rated Output Power	12,000W (12kW)
Maximum PV Input Power	15,000W
Maximum PV Input Voltage	550VDC
MPPT Voltage Range	60V – 480V
Number of MPPT Trackers	2
AC Output Voltage	230V ± 5%
AC Output Frequency	50Hz / 60Hz
AC Output Current	52.2A
Battery Voltage	48V
Battery Compatibility	Lithium / Lead-acid / GEL
Maximum Battery Charge/Discharge Current	190A – 280A
Efficiency	Up to 97.5%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP20
Parallel Capability	Up to 9 units (108kW)
Communication	CAN / RS485 / WiFi / 4G
Dimensions (W x H x D)	550mm x 465mm x 150mm
Weight	Approximately 22kg

Description

Growatt 12kW Off Grid Hybrid Solar Inverter

Key Features & Benefits:

High Power Output: Delivers a robust 12kW output, ideal for large-scale off-grid applications.
Dual MPPT Trackers: Two MPPT trackers optimize solar harvesting across a 60V–480V range.
Wide PV Input Capacity: Handles up to 15kW PV input, ensuring flexibility with larger arrays.
Efficient Power Conversion: Up to 97.5% efficiency reduces energy loss and maximizes savings.
Battery Versatility: Supports Lithium, Lead‑acid, and GEL batteries at 48V for diverse storage needs.
High Current Handling: Supports 190A–280A charge/discharge, accommodating fast battery cycling.
Robust Communication: CAN, RS485, WiFi, and 4G options for seamless monitoring and control.
Parallel Scalability: Can be paralleled with up to 9 units, scaling to 108kW for larger projects.
Compact Design: Dimensions of 550mm x 465mm x 150mm keep installation footprint minimal.
Durable Build: IP20 rating protects against dust and splashes in typical outdoor settings.
Wide Temperature Range: Operates reliably from -25°C to +60°C, suitable for varied climates.
Lightweight Construction: Weighs only 22kg, simplifying transport and mounting.

Ideal For:

Off-grid residential homes
Remote village electrification
Solar farms with battery storage
Industrial backup power
Agricultural irrigation systems
Emergency power stations
Renewable energy projects in Bangladesh

Summary:

The Growatt 12kW Off Grid Hybrid Solar Inverter offers a powerful 12kW output with dual MPPT trackers and up to 97.5% efficiency, making it ideal for large-scale off-grid and backup power solutions. Its 48V battery compatibility, high current handling, and robust communication options provide flexibility and ease of integration. With a compact footprint and IP20 protection, it is well suited for Bangladesh’s diverse climates and installation environments. Available now at Revolution Technology BD for customers seeking reliable, high-performance solar solutions.
