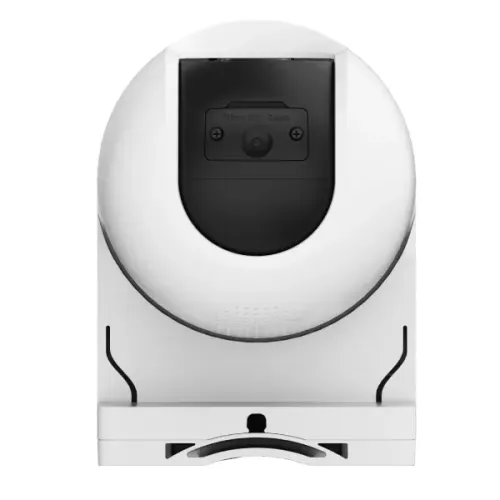

EZVIZ CS-H8c Pro 5MP 3K Pan & Tilt Wi-Fi IP Camera
Contact us for pricing
Product Details
Key Features
High-Resolution 5MP Sensor: The 5MP 1/2.7" progressive scan CMOS sensor captures clear 2880*1620 images, delivering detailed video for precise monitoring.
Smooth 30fps Video: With a maximum frame rate of 30fps and self‑adaptive streaming, the camera provides fluid playback even on variable network conditions.
Wide Pan & Tilt Coverage: Pan range of 350° and tilt range of 80° let you monitor large areas without blind spots, ideal for both indoor and outdoor spaces.
Long‑Range IR Night Vision: Infrared LEDs illuminate up to 30 m (98 ft) in total darkness, ensuring clear visibility at night.
Versatile Field of View Options: Choose between a 4mm lens (48° V / 91° H / 108° D) or a 6mm lens (30° V / 56° H / 66° D) to suit different surveillance angles.
Low Light Performance: Minimum illumination of 0.5 Lux (F1.6, AGC ON) and 0 Lux with IR means the camera works well in dim environments.
Efficient Video Compression: H.265 and H.264 codecs reduce bandwidth and storage needs while preserving video quality.
Two‑Way Audio Communication: Built‑in microphone and speaker enable real‑time two‑way audio for alerts or visitor interaction.
AI‑Powered Smart Alarm: Advanced AI detects human and vehicle shapes, triggering instant alerts to reduce false alarms.
Flexible Storage Options: Supports up to 512 GB microSD cards and optional EZVIZ CloudPlay subscription for cloud backup.
Robust Connectivity: Dual connectivity with IEEE 802.11b/g/n Wi‑Fi (2.4 GHz) and a 10/100 Mbps Ethernet port ensures reliable network access.
Weatherproof Design: IP‑rated housing withstands -30°C to 50°C and up to 95% non‑condensing humidity, perfect for outdoor deployment.
Image Sensor | 1/2.7" Progressive Scan CMOS |
Effective Pixels | 5MP |
Max. Resolution | 2880*1620 |
Frame Rate | Max:30fps; Self-Adaptive during network transmission |
Lens | 4mm@ F1.6, M12 Mount |
Pan & Tilt | Pan: 350°, Tilt: 80° |
IR Distance | 30m / 98ft |
Field of View | Viewing angle: 48° (Vertical), 91° (Horizontal), 108° (Diagonal) 6mm@ F1.6, viewing angle: 30° (Vertical), 56° (Horizontal), 66° (Diagonal) |
Min. Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR |
Video Compression | H.265 / H.264 |
Audio Input / Output | Two Way Audio |
DNR | 3D DNR |
WDR | Digital WDR |
Smart Alarm | AI-Powered Human / Vehicle Shape Detection |
Button | Reset Button |
Storage Type | Supports microSD Card (Up to 512 GB); Supports EZVIZ CloudPlay storage (Subscription required) |
Certifications | CE / UL / RoHS / WEEE / REACH |
Wireless Network | IEEE802.11b, 802.11g, 802.11n 2.4 GHz ~ 2.4835 GHz |
Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
Power Supply | DC 12V/1A |
Dimension | 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch) |
Net Weight | 539.7g; With Package: 823.6g For EU Standard Version |
Operating Temperature | -30°C to 50°C ( -22 °F to 122 °F ) |
Humidity | 95% or less (non-condensing) |
Others | Weatherproof Design |
Warranty | 01 Year Warranty |
Description
EZVIZ CS-H8c Pro 5MP 3K Pan & Tilt Wi-Fi IP Camera
Key Features & Benefits:
- High-Resolution 5MP Sensor: The 5MP 1/2.7" progressive scan CMOS sensor captures clear 2880*1620 images, delivering detailed video for precise monitoring.
- Smooth 30fps Video: With a maximum frame rate of 30fps and self‑adaptive streaming, the camera provides fluid playback even on variable network conditions.
- Wide Pan & Tilt Coverage: Pan range of 350° and tilt range of 80° let you monitor large areas without blind spots, ideal for both indoor and outdoor spaces.
- Long‑Range IR Night Vision: Infrared LEDs illuminate up to 30 m (98 ft) in total darkness, ensuring clear visibility at night.
- Versatile Field of View Options: Choose between a 4mm lens (48° V / 91° H / 108° D) or a 6mm lens (30° V / 56° H / 66° D) to suit different surveillance angles.
- Low Light Performance: Minimum illumination of 0.5 Lux (F1.6, AGC ON) and 0 Lux with IR means the camera works well in dim environments.
- Efficient Video Compression: H.265 and H.264 codecs reduce bandwidth and storage needs while preserving video quality.
- Two‑Way Audio Communication: Built‑in microphone and speaker enable real‑time two‑way audio for alerts or visitor interaction.
- AI‑Powered Smart Alarm: Advanced AI detects human and vehicle shapes, triggering instant alerts to reduce false alarms.
- Flexible Storage Options: Supports up to 512 GB microSD cards and optional EZVIZ CloudPlay subscription for cloud backup.
- Robust Connectivity: Dual connectivity with IEEE 802.11b/g/n Wi‑Fi (2.4 GHz) and a 10/100 Mbps Ethernet port ensures reliable network access.
- Weatherproof Design: IP‑rated housing withstands -30°C to 50°C and up to 95% non‑condensing humidity, perfect for outdoor deployment.
Ideal For:
- Homeowners seeking comprehensive indoor/outdoor security
- Small business owners needing affordable surveillance
- Retail store managers monitoring shop floors and entrances
- Office administrators protecting workspaces and parking areas
- Property managers overseeing multiple rental units
- Warehouse supervisors requiring weather‑proof monitoring
- Tech enthusiasts who value AI detection and high‑resolution video
Summary:
The EZVIZ CS-H8c Pro 5MP 3K Pan & Tilt Wi‑Fi IP Camera offers 5MP resolution, 30fps smooth video, and a 350° pan with 80° tilt for expansive coverage. Its dual‑lens field of view, up to 30 m IR night vision, and AI‑powered human/vehicle detection make it ideal for both home and commercial security. Flexible storage via microSD or EZVIZ Cloud, combined with robust Wi‑Fi and Ethernet connectivity, ensures reliable operation in any environment. Available now at Revolution Technology BD with a 1‑year warranty.
