Dell PowerEdge R750xs Intel Xeon Silver 4310 Rack Server

Genuine Product Fast Delivery Easy Returns

Specification

Model	PowerEdge R750xs Xeon Silver 4310
Processor	Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
No of processors	1 X 12 = 12 Cores
RAM	1 x 32GB=32GB, RDIMM 3200MT/s, Dual Rank Up to 1 TB (16 DIMM slots)
Hard Drive	1 X 1.2TB 10K RPM SAS 12Gbps 512e 2.5in Hot-plug Hard Drive
RAID Controller	PERC H755 RAID Controller, 8GB NV Cache (Supports RAID 0,1,5,6,10,50 & 60)
Monitor	No Monitor
Optical Drive	No Internal Optical Drive
Font I/O Ports	1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
Rear I/O Ports	1 x USB 2.0, 1 x USB 3.0, 2 x Ethernet, 1 x VGA
Expansion Slot	Riser options with up to 6 PCIe Gen 3 slots.
Number of Bays	Chassis with up to (8 x 2.5") SAS/SATA Hard Drives for 2CPU Configuration
LAN /NIC	LOM Dual Port 1 GbE BASE-T, rNDC
Video Graphics	2D Matrox G200 with 16MB Cache
Power Supply	High-efficiency, hot-plug, redundant power supplies (1+1), 800W
Remote Management	iDRAC9 Enterprise 15G, integrated Dell Remote Access Controller, Enterprise 15G
Power Cord	2 x Jumper Cord - C13/C14, 4M, 250V, 10A (US, EU, TW, APCC countries except ANZ)
Operating System	No Operating System
TPM	Trusted Platform Module 2.0 V3
Other Accessories	Ready Rails Sliding Rails Without Cable Management Arm

Description

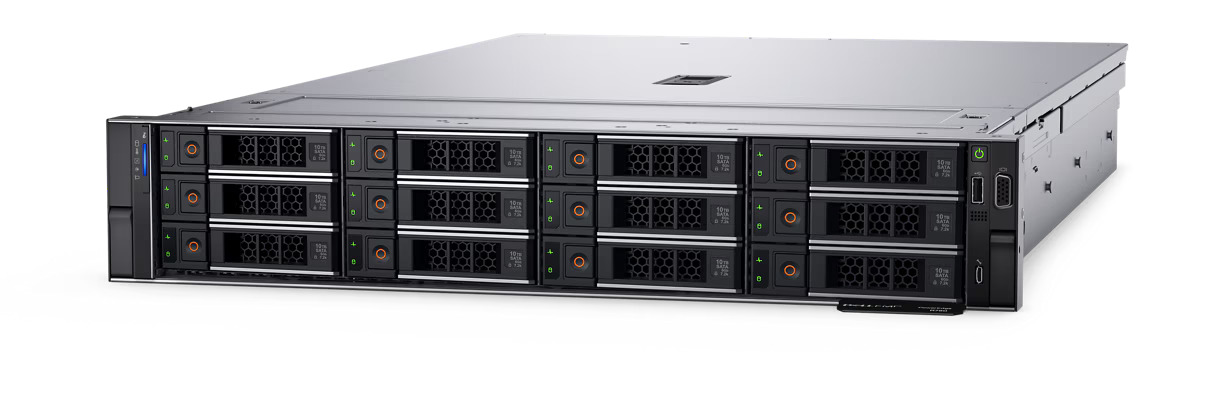

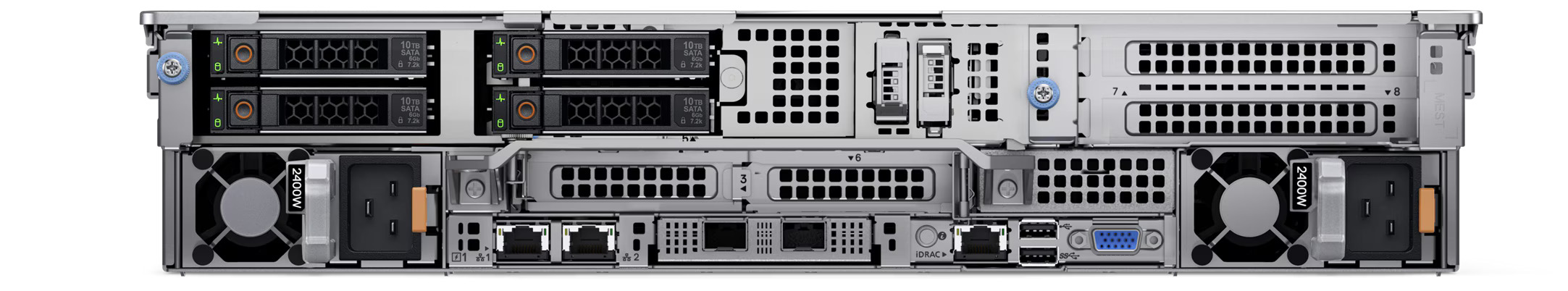

Dell PowerEdge R750xs Intel Xeon Silver 4310 Rack Server

Dell PowerEdge R750xs Intel Xeon Silver 4310 Rack Server is optimal for usage in a variety of business applications with increased productivity and efficiency. This 2-U chassis server is equipped with 2 processors Intel Xeon Silver 4310 working at a frequency of 2.1GHz with 12 cores. It sits on an Intel C620 chipset and has 64GB DDR4 (2×32GB RDIMM, 3200MT) that enables the processing of data at a very high speed. Storage is also available and get, In terms of built-in storage, the server gets 2 x 2.4TB 10K RPM SAS 12Gbps 512e 2.5in hard drives, which ensures enough storage space and rather fast data access rates. PERC H755 RAID Controller with 8GB NV Cache supports RAID 0, 1, 5, 6, 10, 50, and 60 for data protection and configuration. This model supports up to 8X2.5 SAS/SATA hard drives for 2 CPU arrangement.

The connectivity is provided through a dual port 1GbE LAN/NIC that allows stable and fast networking. The server is connected to a 2 x 800W redundant power supply to reduce on time that the server takes to start and also to reduce on time when the power supply is faulty as there is a backup. It also consists of iDRAC9 Enterprise 15G for enhanced remote control and a Trusted Platform Module 2.0 V3 to make it highly secured, unlike the prior version of the application. The server is designed with ready rails sliding rails without a cable management arm. The Blackmagic Pocket Cinema Camera also comes with a 3-year warranty for that extra measure of protection. It has all that a business organization requires in a rack server; performance, scalability, and security, and these attributes make Dell PowerEdge R750xs a unique rack server.
