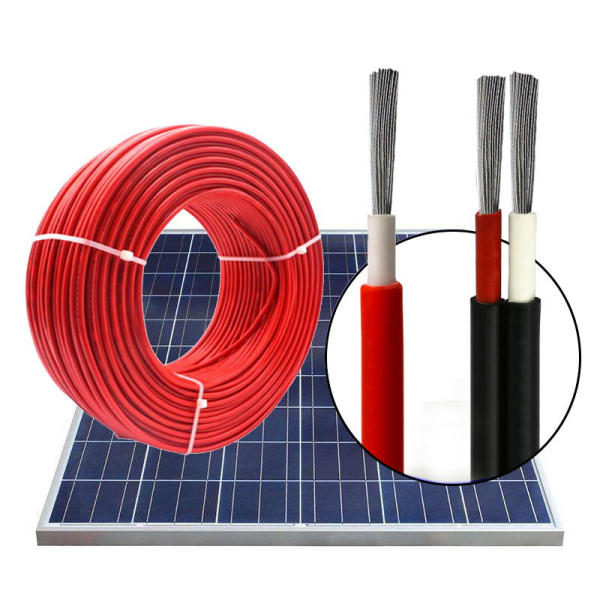

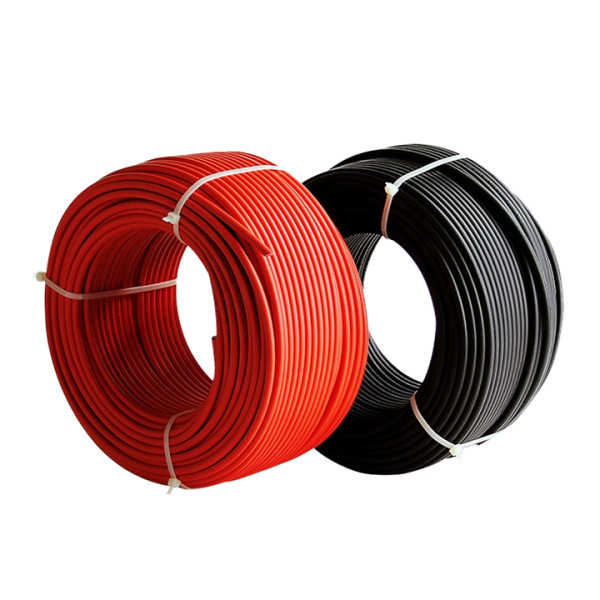

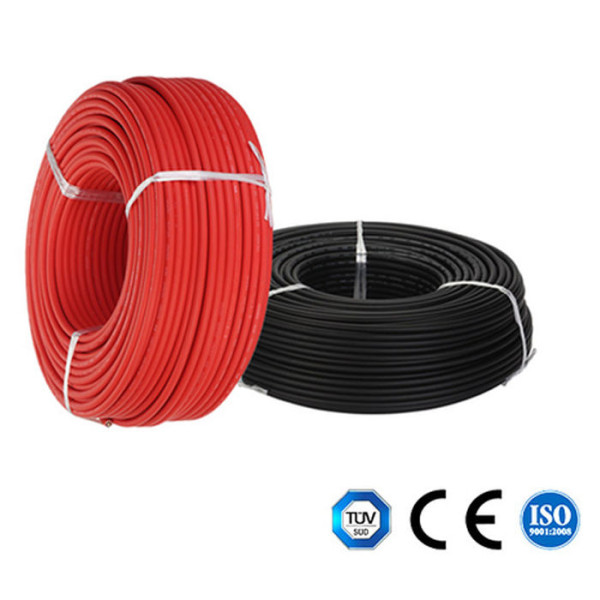

6mm² Solar PV Cable H1Z2Z2-K Flexible Photovoltaic Cable DC 1500V TÜV 2PfG 1169/08.2007 EN 50618 Pure Copper Wire (Red or Black)
Contact us for pricing
Product Details
Key Features
High Current Capacity: Supports 70 A single cable in air and 67 A on surface, ideal for large PV arrays.
Low DC Resistance: Only 3.390 Ω/km at 20°C, minimizing power loss over long runs.
Robust Construction: 84 fine‑stranded copper strands with 0.7 mm insulation and 0.9 mm sheath for durability.
Versatile Voltage Ratings: Handles 600/1000 VDC and 1500/1500 VA, meeting most commercial PV requirements.
Water‑Proof Design: AD8 submersible rating allows direct burial even in wet conditions.
Impact Resistant: Certified per EN 60068‑2‑78, suitable for harsh outdoor environments.
Fire Safe: Halogen‑free, low smoke, low toxicity for safer installations.
Standard Compliant: Meets EN 50618, TÜV 2 PfG, EN 50288‑3‑7, EN 60068‑2‑78, EN 50395 for quality assurance.
Flexible Installation: Red or black colors and flexible cable make it easy to route in conduits or open spaces.
Temperature Resilience: Rated for 35 °C ambient, ensuring reliable performance in tropical climates.
Product Type | Solar/Photovoltaic DC Cable, Single-Core |
Designation | H1Z2Z2-K (also known as PV1-F) |
Nominal Cross-Sectional Area | 6.0 mm² |
Conductor | Fine-stranded pure copper, flexible |
No. of Strands & Diameter | 84 strands / 0.30 mm |
Insulation Thickness (nominal) | 0.7 mm |
Sheath Thickness (nominal) | 0.9 mm |
Overall Diameter (approx.) | 6.5 mm |
Max. DC Resistance @ 20°C | 3.390 Ω/km |
Current Rating — Single cable in air | 70 A |
Current Rating — Single cable on surface | 67 A |
Current Rating — 2 adjacent cables on surface | 57 A |
Voltage Rating | 600/1000 VDC |
Voltage Rating | 1500/1500 VA |
Ambient Temp. Rating (current ratings basis) | 35 °C |
Standards Compliance | EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7, EN 60068-2-78, EN 50395 |
Water Resistance | AD8 (submersible) |
Impact Resistance | Tested per EN 60068-2-78 — suitable for direct burial |
Fire Performance | Halogen-free, low smoke, low toxicity |
Application | PV array interconnection — fixed installation, indoor/outdoor, in conduit or open, direct burial capable |
Colors Available | Red / Black |
Description
6mm² Solar PV Cable H1Z2Z2-K Flexible Photovoltaic Cable DC 1500V TÜV 2PfG 1169/08.2007 EN 50618 Pure Copper Wire (Red or Black)
Key Features & Benefits:
- High Current Capacity: Supports 70 A single cable in air and 67 A on surface, ideal for large PV arrays.
- Low DC Resistance: Only 3.390 Ω/km at 20°C, minimizing power loss over long runs.
- Robust Construction: 84 fine‑stranded copper strands with 0.7 mm insulation and 0.9 mm sheath for durability.
- Versatile Voltage Ratings: Handles 600/1000 VDC and 1500/1500 VA, meeting most commercial PV requirements.
- Water‑Proof Design: AD8 submersible rating allows direct burial even in wet conditions.
- Impact Resistant: Certified per EN 60068‑2‑78, suitable for harsh outdoor environments.
- Fire Safe: Halogen‑free, low smoke, low toxicity for safer installations.
- Standard Compliant: Meets EN 50618, TÜV 2 PfG, EN 50288‑3‑7, EN 60068‑2‑78, EN 50395 for quality assurance.
- Flexible Installation: Red or black colors and flexible cable make it easy to route in conduits or open spaces.
- Temperature Resilience: Rated for 35 °C ambient, ensuring reliable performance in tropical climates.
Ideal For:
- Large commercial solar farms
- Residential rooftop PV systems
- Industrial solar installations
- Off‑grid solar power setups
- Solar battery backup systems
- Utility‑scale PV projects
- Renewable energy contractors
Summary:
The 6mm² Solar PV Cable H1Z2Z2‑K is a high‑performance, flexible photovoltaic cable designed for both indoor and outdoor PV array interconnections. With a 70 A single‑cable rating, 3.390 Ω/km resistance, and AD8 water‑proofing, it delivers reliable power transfer even in harsh environments. Its compliance with EN 50618, TÜV 2 PfG, and other standards ensures safety and durability for commercial and residential solar projects. Available in red or black, this cable is stocked at Revolution Technology BD for quick delivery.
