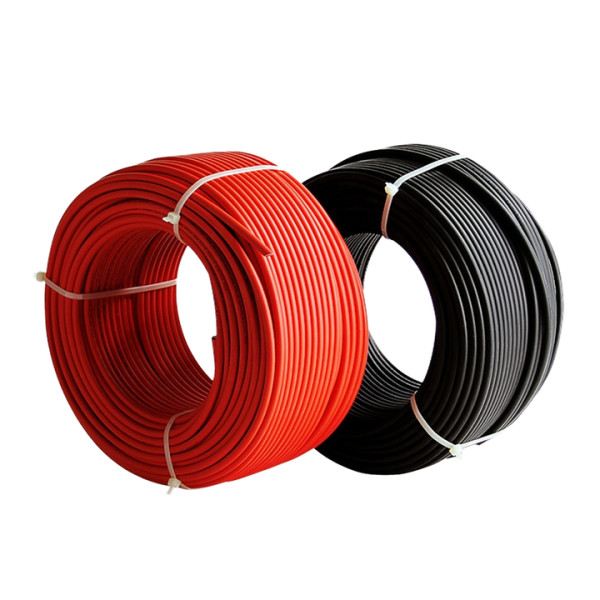

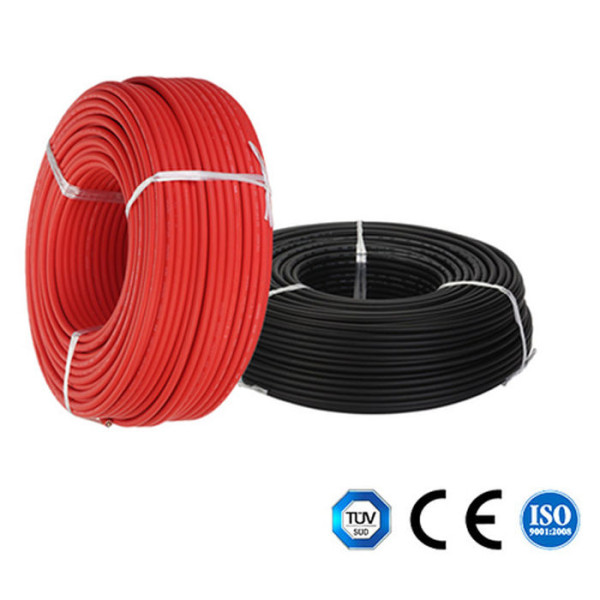

4mm² Solar PV Cable H1Z2Z2-K Flexible Photovoltaic Cable DC 1500V TÜV 2PfG 1169/08.2007 EN 50618 Pure Copper Wire (Red or Black)
Contact us for pricing
Product Details
Key Features
High Current Capacity: Handles up to 55 A in air and 52 A on surface, ideal for large PV arrays.
Robust Construction: 56 fine‑stranded copper strands provide flexibility while maintaining 4.0 mm² cross‑section.
Low Resistance: Only 5.090 Ω/km at 20 °C, minimizing power loss over long runs.
Wide Voltage Range: Supports 600/1000 VDC and 1500 VDC, meeting most commercial PV standards.
Temperature Resilience: Rated for 35 °C ambient, ensuring reliable performance in hot climates.
Waterproof Design: AD8 submersible rating allows safe use in wet or submerged environments.
Impact Resistant: Certified per EN 60068‑2‑78, suitable for direct burial and harsh conditions.
Fire Safe: Halogen‑free, low smoke, low toxicity construction for safer installations.
Compliance with International Standards: Meets EN 50618, TÜV 2 PfG, EN 50288‑3‑7, EN 60068‑2‑78, EN 50395 for quality assurance.
Color Options: Available in Red or Black to match system aesthetics.
Versatile Installation: Suitable for fixed indoor/outdoor setups, conduit, open runs, or direct burial.
Pure Copper Wire: Ensures high conductivity and longevity for solar power applications.
Product Type | Solar/Photovoltaic DC Cable, Single-Core |
Designation | H1Z2Z2-K (also known as PV1-F) |
Nominal Cross-Sectional Area | 4.0 mm² |
Conductor | Fine-stranded pure copper, flexible |
No. of Strands & Diameter | 56 strands / 0.30 mm |
Insulation Thickness (nominal) | 0.7 mm |
Sheath Thickness (nominal) | 0.9 mm |
Overall Diameter (approx.) | 6.0 mm |
Max. DC Resistance @ 20°C | 5.090 Ω/km |
Current Rating — Single cable in air | 55 A |
Current Rating — Single cable on surface | 52 A |
Current Rating — 2 adjacent cables on surface | 44 A |
AAC Voltage Rating | 600/1000 VDC |
Voltage Rating | 1500/1500 V |
Ambient Temp. Rating (current ratings basis) | 35 °C |
Standards Compliance | EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7, EN 60068-2-78, EN 50395 |
Water Resistance | AD8 (submersible) |
Impact Resistance | Tested per EN 60068-2-78 — suitable for direct burial |
Fire Performance | Halogen-free, low smoke, low toxicity |
Application | PV array interconnection — fixed installation, indoor/outdoor, in conduit or open, direct burial capable |
Colors Available | Red / Black |
Description
4mm² Solar PV Cable H1Z2Z2-K Flexible Photovoltaic Cable DC 1500V TÜV 2PfG 1169/08.2007 EN 50618 Pure Copper Wire (Red or Black)
Key Features & Benefits:
- High Current Capacity: Handles up to 55 A in air and 52 A on surface, ideal for large PV arrays.
- Robust Construction: 56 fine‑stranded copper strands provide flexibility while maintaining 4.0 mm² cross‑section.
- Low Resistance: Only 5.090 Ω/km at 20 °C, minimizing power loss over long runs.
- Wide Voltage Range: Supports 600/1000 VDC and 1500 VDC, meeting most commercial PV standards.
- Temperature Resilience: Rated for 35 °C ambient, ensuring reliable performance in hot climates.
- Waterproof Design: AD8 submersible rating allows safe use in wet or submerged environments.
- Impact Resistant: Certified per EN 60068‑2‑78, suitable for direct burial and harsh conditions.
- Fire Safe: Halogen‑free, low smoke, low toxicity construction for safer installations.
- Compliance with International Standards: Meets EN 50618, TÜV 2 PfG, EN 50288‑3‑7, EN 60068‑2‑78, EN 50395 for quality assurance.
- Color Options: Available in Red or Black to match system aesthetics.
- Versatile Installation: Suitable for fixed indoor/outdoor setups, conduit, open runs, or direct burial.
- Pure Copper Wire: Ensures high conductivity and longevity for solar power applications.
Ideal For:
- Large-scale solar farms requiring high current cables
- Commercial rooftop PV installations
- Residential solar systems with direct burial needs
- Off-grid solar setups in humid regions
- Industrial PV arrays needing fire‑safe cabling
- Utility‑grade solar projects
- Renewable energy contractors seeking compliant cables
Summary:
The 4mm² Solar PV Cable H1Z2Z2‑K is a flexible, pure copper cable designed for high‑current photovoltaic applications. With a 55 A air rating, 5.090 Ω/km resistance, and AD8 waterproofing, it meets international standards for safety and performance. Ideal for large farms, commercial roofs, and off‑grid systems, it is available in red or black at Revolution Technology BD.
