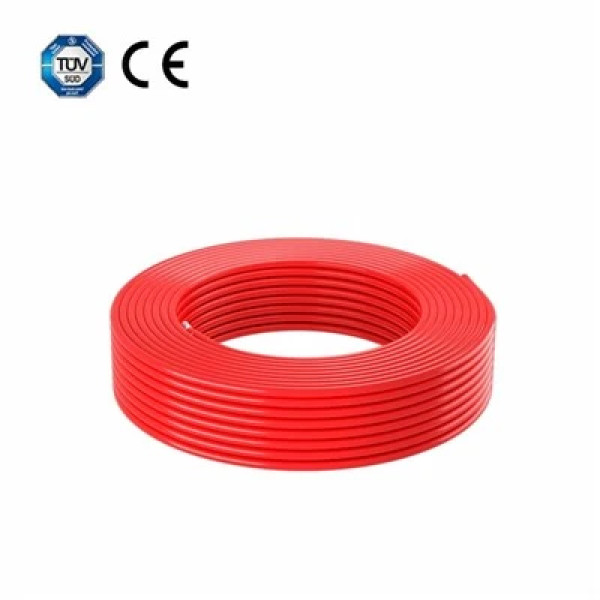

10mm² Solar PV Cable H1Z2Z2-K Flexible Photovoltaic Cable DC 1500V TÜV 2PfG EN 50618 Pure Copper Wire Cable
Contact us for pricing
Product Details
Key Features
High Current Capacity: Supports up to 98 A in air and 93 A on surface, ideal for large PV arrays.
Low DC Resistance: Only 1.950 Ω/km, ensuring minimal power loss over long runs.
Robust Insulation: 0.7 mm nominal insulation protects against moisture and electrical faults.
Flexible Conductor: 80 strands of 0.40 mm pure copper allow easy routing in tight spaces.
Direct Burial Ready: Certified per EN 60068-2-78, it can be buried without additional protection.
High Voltage Rating: Handles 600/1000 VDC, suitable for most commercial solar installations.
Halogen-Free Design: Low smoke, low toxicity fire performance meets strict safety standards.
Compact Diameter: Overall diameter of 7.5 mm keeps conduit sizes small and installation costs low.
Standard Compliance: Meets EN 50618, TÜV 2 PfG, and other European standards for reliability.
Color Coding: Available in red or black for easy identification in complex systems.
Product Type | Solar/Photovoltaic DC Cable, Single-Core |
Designation | H1Z2Z2-K (also known as PV1-F) |
Nominal Cross-Sectional Area | 10.0 mm² |
Conductor | Fine-stranded pure copper, flexible |
No. of Strands & Diameter | 80 strands / 0.40 mm |
Insulation Thickness (nominal) | 0.7 mm |
Sheath Thickness (nominal) | 0.9 mm |
Overall Diameter (approx.) | 7.5 mm |
Max. DC Resistance @ 20°C | 1.950 Ω/km |
Current Rating — Single cable in air | 98 A |
Current Rating — Single cable on surface | 93 A |
Current Rating — 2 adjacent cables on surface | 79 A |
Voltage Rating | 600/1000 VDC |
Ambient Temp. Rating (current ratings basis) | 35 °C |
Standards Compliance | EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7, EN 60068-2-78, EN 50395 |
Water Resistance | AD8 (submersible) |
Impact Resistance | Tested per EN 60068-2-78 — suitable for direct burial |
Fire Performance | Halogen-free, low smoke, low toxicity |
Application | PV array interconnection — fixed installation, indoor/outdoor, in conduit or open, direct burial capable |
Colors Available | Red / Black |
Description
10mm² Solar PV Cable H1Z2Z2-K Flexible Photovoltaic Cable DC 1500V TÜV 2PfG EN 50618 Pure Copper Wire Cable
Key Features & Benefits:
- High Current Capacity: Supports up to 98 A in air and 93 A on surface, ideal for large PV arrays.
- Low DC Resistance: Only 1.950 Ω/km, ensuring minimal power loss over long runs.
- Robust Insulation: 0.7 mm nominal insulation protects against moisture and electrical faults.
- Flexible Conductor: 80 strands of 0.40 mm pure copper allow easy routing in tight spaces.
- Direct Burial Ready: Certified per EN 60068-2-78, it can be buried without additional protection.
- High Voltage Rating: Handles 600/1000 VDC, suitable for most commercial solar installations.
- Halogen-Free Design: Low smoke, low toxicity fire performance meets strict safety standards.
- Compact Diameter: Overall diameter of 7.5 mm keeps conduit sizes small and installation costs low.
- Standard Compliance: Meets EN 50618, TÜV 2 PfG, and other European standards for reliability.
- Color Coding: Available in red or black for easy identification in complex systems.
Ideal For:
- Commercial solar farm installers
- Residential rooftop PV system designers
- Off-grid renewable energy projects
- Utility-scale solar plants
- DIY solar enthusiasts
Summary:
The 10mm² Solar PV Cable H1Z2Z2-K is a high‑performance, flexible cable designed for photovoltaic applications. With a 98 A current rating in air, 1.950 Ω/km resistance, and 600/1000 VDC voltage rating, it meets stringent European standards and is suitable for direct burial. Ideal for commercial, residential, and off‑grid solar installations, this cable is available in red or black at Revolution Technology BD.
