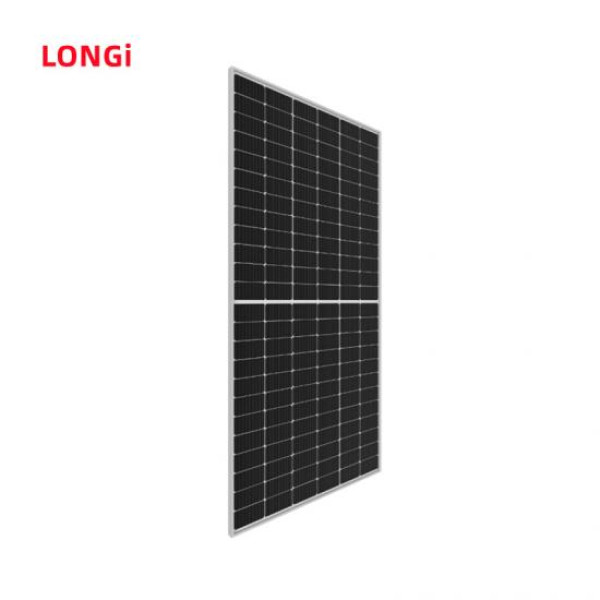

LONGi 445W Bifacial Half-Cut Mono Solar Panel
Contact us for pricing
Product Details
Key Features
High Power Output: Each panel delivers a rated maximum power of 445W, providing strong energy generation per square meter.
Superior Module Efficiency: With a module efficiency of 21.0%, the panel converts sunlight to electricity more effectively than many conventional panels.
Bifacial Design: The 70 ± 5% bifaciality captures additional sunlight from the rear side, boosting overall yield especially on reflective surfaces.
Robust Voltage Characteristics: Open circuit voltage of 49.4V and voltage at maximum power of 41.2V ensure compatibility with a wide range of inverters and system designs.
Strong Mechanical Load Capacity: Designed to withstand 5400 Pa on the front and 2400 Pa on the rear, the panel resists wind and snow loads for reliable long‑term operation.
Wide Operating Temperature Range: Operates safely from -40°C to +85°C, making it suitable for Bangladesh’s hot climate and cooler winter nights.
High System Voltage Compatibility: Supports a maximum system voltage of 1500V DC, allowing larger string configurations and reduced balance‑of‑system costs.
Safe Fuse Rating: Maximum series fuse rating of 25A provides built‑in protection against over‑current conditions.
Compact and Lightweight: Dimensions of 2094×1038×35 mm and a weight of 27.5 kg make installation easier on rooftops and mounting structures.
Long-Term Reliability: The panel’s robust construction and high-quality cells ensure stable performance over decades of operation.
Model | LR4-72HBD-445M |
Rated Maximum Power (Pmax) | 445W |
Module Efficiency | 21.0% |
Open Circuit Voltage (Voc) | 49.4V |
Short Circuit Current (Isc) | 11.72A |
Voltage at Maximum Power (Vmp) | 41.2V |
Current at Maximum Power (Imp) | 10.80A |
Dimensions | 2094 × 1038 × 35 mm |
Weight | 27.5 kg |
Operating Temperature | -40°C ~ +85°C |
Maximum System Voltage | 1500V DC |
Maximum Series Fuse Rating | 25A |
Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
Bifaciality | 70 ± 5% |
Description
LONGi 445W Bifacial Half-Cut Mono Solar Panel
Key Features & Benefits:
- High Power Output: Each panel delivers a rated maximum power of 445W, providing strong energy generation per square meter.
- Superior Module Efficiency: With a module efficiency of 21.0%, the panel converts sunlight to electricity more effectively than many conventional panels.
- Bifacial Design: The 70 ± 5% bifaciality captures additional sunlight from the rear side, boosting overall yield especially on reflective surfaces.
- Robust Voltage Characteristics: Open circuit voltage of 49.4V and voltage at maximum power of 41.2V ensure compatibility with a wide range of inverters and system designs.
- Strong Mechanical Load Capacity: Designed to withstand 5400 Pa on the front and 2400 Pa on the rear, the panel resists wind and snow loads for reliable long‑term operation.
- Wide Operating Temperature Range: Operates safely from -40°C to +85°C, making it suitable for Bangladesh’s hot climate and cooler winter nights.
- High System Voltage Compatibility: Supports a maximum system voltage of 1500V DC, allowing larger string configurations and reduced balance‑of‑system costs.
- Safe Fuse Rating: Maximum series fuse rating of 25A provides built‑in protection against over‑current conditions.
- Compact and Lightweight: Dimensions of 2094×1038×35 mm and a weight of 27.5 kg make installation easier on rooftops and mounting structures.
- Long-Term Reliability: The panel’s robust construction and high-quality cells ensure stable performance over decades of operation.
Ideal For:
- Large commercial solar farms seeking high energy density
- Industrial rooftop installations requiring robust mechanical strength
- Residential homeowners looking for high‑efficiency panels on limited roof space
- Off‑grid remote sites that benefit from bifacial gain and temperature resilience
- Agricultural farms using solar for irrigation and processing equipment
- Government renewable energy projects aiming for high‑performance PV modules
- NGOs and community projects needing reliable, low‑maintenance solar solutions
Summary:
The LONGi 445W Bifacial Half‑Cut Mono Solar Panel offers a powerful 445W output with 21.0% efficiency and 70% bifaciality, delivering superior energy yield in diverse conditions. Its robust mechanical load capacity, wide operating temperature range, and high system voltage compatibility make it ideal for both commercial and residential installations across Bangladesh. Available at Revolution Technology BD, this panel is perfect for large solar farms, industrial rooftops, and off‑grid applications seeking reliable, high‑performance solar solutions.
