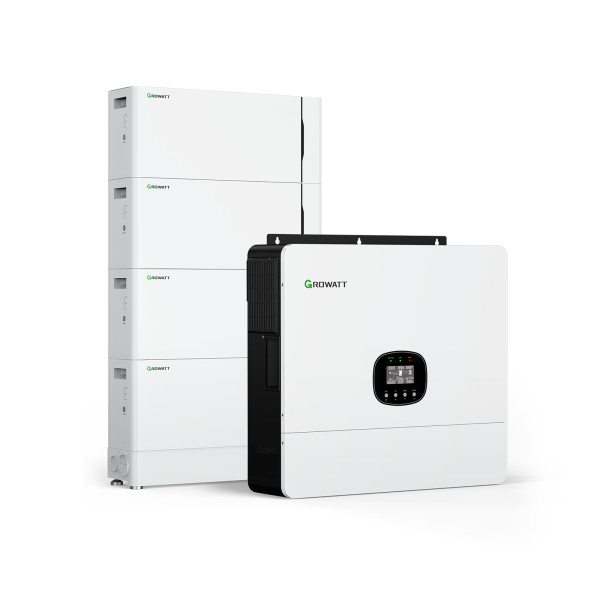

Growatt 6kW Off-Grid Hybrid Inverter

Genuine Product Fast Delivery Easy Returns

Key Features

High Power Output: Delivers 6000W of continuous power, suitable for demanding appliances and tools.

Robust Parallel Capability: Can connect up to six units in parallel, scaling power for larger installations.

Pure Sine Wave Technology: Provides clean, stable power for sensitive electronics and medical devices.

Fast Transfer Time: 10ms typical transfer time ensures instant power availability during outages.

Large MPPT Solar Input: Handles up to 8000W PV array with 120-450VDC MPPT range for efficient solar harvesting.

High Surge Capacity: 12000VA surge power protects connected devices from voltage spikes.

Wide AC Input Range: Accepts 170–280VAC for PCs and 90–280VAC for appliances, offering flexibility in different regions.

Compact Design: Dimensions 460×395×132mm and 13.5kg weight make it easy to install in tight spaces.

Durable Build: IP20 rating and operating temperature 0°C to 55°C ensure reliable performance in varied climates.

Efficient Operation: Peak efficiency of 93% reduces energy loss and lowers operating costs.

Specification

Battery Voltage	48VDC
Battery Type	Lithium / Lead-acid
Inverter Output Rated Power	6000VA / 6000W
Parallel Capability	Yes, up to 6 units
AC Voltage Regulation	230VAC ± 5% @ 50/60Hz
Surge Power	12000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms max
Solar Charger Max. PV Array Power	8000W
MPPT Range	120VDC ~ 450VDC
MPPT Trackers / Strings	2
Max. Input Current / Tracker	16A
Max. PV Open Circuit Voltage	500VDC
Max. Solar Charge Current	100A
AC Charger AC Charge Current	80A
Input Voltage	230VAC
Selectable Voltage Range	170–280VAC (PCs); 90–280VAC (Appliances)
Frequency Range	50Hz / 60Hz (Auto sensing)
Physical Protection Degree	IP20
Dimensions (W × H × D)	460 × 395 × 132 mm
Net Weight	13.5 kg
Operating Environment Humidity	5% to 95% RH (non-condensing)
Altitude	< 2000 m
Operating Temperature	0°C to 55°C
Storage Temperature	-15°C to 60°C

Description

Growatt 6kW Off-Grid Hybrid Inverter

Key Features & Benefits:

High Power Output: Delivers 6000W of continuous power, suitable for demanding appliances and tools.
Robust Parallel Capability: Can connect up to six units in parallel, scaling power for larger installations.
Pure Sine Wave Technology: Provides clean, stable power for sensitive electronics and medical devices.
Fast Transfer Time: 10ms typical transfer time ensures instant power availability during outages.
Large MPPT Solar Input: Handles up to 8000W PV array with 120-450VDC MPPT range for efficient solar harvesting.
High Surge Capacity: 12000VA surge power protects connected devices from voltage spikes.
Wide AC Input Range: Accepts 170–280VAC for PCs and 90–280VAC for appliances, offering flexibility in different regions.
Compact Design: Dimensions 460×395×132mm and 13.5kg weight make it easy to install in tight spaces.
Durable Build: IP20 rating and operating temperature 0°C to 55°C ensure reliable performance in varied climates.
Efficient Operation: Peak efficiency of 93% reduces energy loss and lowers operating costs.

Ideal For:

Off-grid residential homes needing reliable backup power
Remote agricultural operations requiring solar and battery backup
Small businesses with critical equipment that cannot afford downtime
RV and mobile home owners looking for portable power solutions
Offshore or island communities with limited grid access
Emergency shelters and disaster relief centers
Home office setups demanding clean power for sensitive electronics

Summary:

The Growatt 6kW Off-Grid Hybrid Inverter delivers 6000W of pure sine wave power with a 93% peak efficiency, making it ideal for homes, businesses, and remote sites that need reliable backup and solar integration. Its 12000VA surge capacity, 10ms transfer time, and ability to parallel up to six units provide flexibility and scalability for growing power needs. Compact and robust, it operates from 0°C to 55°C and accepts a wide AC input range, ensuring dependable performance in diverse environments. Available now at Revolution Technology BD for customers seeking high‑performance off‑grid solutions.
