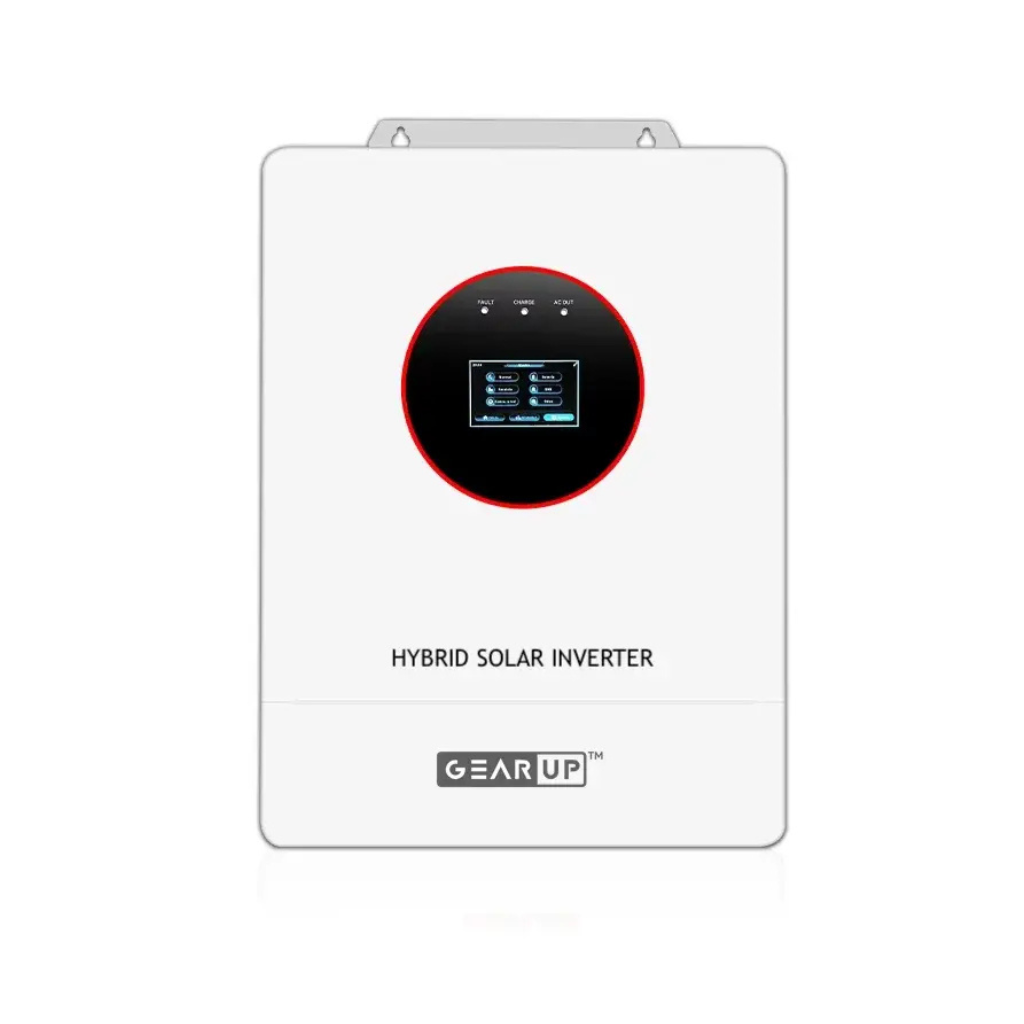

GearUP 2KW Hybrid Solar Power Package | GearUP 2KW Hybrid Inverter & 4 Jinko 620W Solar Panel
Contact us for pricing
Product Details
Key Features
High Power Output: The 2KW hybrid inverter delivers a continuous 2000W and a peak 4000W for short bursts, handling demanding appliances.
Efficient Energy Conversion: With a peak efficiency exceeding 90%, the system maximizes solar harvest and minimizes losses.
Robust Solar Input: Accepts up to 145VDC solar input and 80A charge current, allowing rapid battery charging from three 620W panels.
Pure Sine Wave Output: Provides clean 230VAC ±5% pure sine wave, safe for sensitive electronics and home appliances.
Versatile Grid Compatibility: AC input range of 170‑280VAC makes it suitable for Bangladesh’s grid fluctuations.
Compact Inverter Design: Measures only 120 x 295 x 468 mm and weighs ~11 kg, fitting easily in residential rooftops or garages.
High‑Efficiency Panels: Each Jinko N‑Type panel offers ~21.8% efficiency, delivering 620W at 37.6V and 16.5A.
Durable Panel Construction: 120 half‑cut cells (6x20) provide better shade tolerance and a max system voltage of 1500V DC.
Scalable Solar Array: Three panels give a total capacity of 1860W, with power tolerance of 0~+3W for reliable output.
Future‑Ready Battery Option: Recommended 2×12V 200Ah deep‑cycle batteries support both lead‑acid and lithium chemistries for long‑term storage.
Auto‑Sensing Frequency: Inverter automatically senses 50Hz or 60Hz, ensuring stable operation across different regions.
Lightweight Panels: Each panel weighs 31.4 kg, simplifying installation and handling on rooftops.
Inverter Rated Power | 2000W / 2000VA |
Inverter Peak Power | 4000W (5 seconds) |
Battery Voltage | 24VDC |
Max Solar Charge Current | 80AMP |
PPT Voltage Range | 30VDC - 120VDC |
Max Solar Input Voltage | 145VDC |
AC Input Voltage | 230VAC (170-280VAC selectable range) |
AC Output Voltage | 230VAC ± 5% (50Hz/60Hz auto sensing) |
Waveform | Pure Sine Wave |
Efficiency (Peak) | >90% |
Inverter Dimensions (D x W x H) | 120 x 295 x 468 mm |
Inverter Weight | ~11 kg |
Solar Panel Rated Power (Pmax) | 620W |
Solar Panel Module Efficiency | ~21.8% |
Solar Panel Cell Type | N-Type Mono-crystalline |
Solar Panel Number of Cells | 120 (6x20 Half-Cut) |
Solar Panel Voltage at Pmax (Vmpp) | 37.6V |
Solar Panel Current at Pmax (Impp) | 16.5A |
Solar Panel Open Circuit Voltage (Voc) | 45.2V |
Solar Panel Short Circuit Current (Isc) | 17.5A |
Solar Panel Max System Voltage | 1500V DC (IEC) |
Solar Panel Dimensions (L x W x H) | 2470 x 1134 x 30 mm |
Solar Panel Weight | 31.4 kg |
Solar Panel Power Tolerance | 0~+3W |
Total Solar Capacity | 1860W (3 x 620W) |
Max Continuous AC Output | 2000W |
Recommended Battery Bank (not included) | 2x 12V 200Ah Deep Cycle Batteries (e.g., Lead-Acid/Lithium) |
Description
GearUP 2KW Hybrid Solar Power Package | GearUP 2KW Hybrid Inverter & 4 Jinko 620W Solar Panel
Key Features & Benefits:
- High Power Output: The 2KW hybrid inverter delivers a continuous 2000W and a peak 4000W for short bursts, handling demanding appliances.
- Efficient Energy Conversion: With a peak efficiency exceeding 90%, the system maximizes solar harvest and minimizes losses.
- Robust Solar Input: Accepts up to 145VDC solar input and 80A charge current, allowing rapid battery charging from three 620W panels.
- Pure Sine Wave Output: Provides clean 230VAC ±5% pure sine wave, safe for sensitive electronics and home appliances.
- Versatile Grid Compatibility: AC input range of 170‑280VAC makes it suitable for Bangladesh’s grid fluctuations.
- Compact Inverter Design: Measures only 120 x 295 x 468 mm and weighs ~11 kg, fitting easily in residential rooftops or garages.
- High‑Efficiency Panels: Each Jinko N‑Type panel offers ~21.8% efficiency, delivering 620W at 37.6V and 16.5A.
- Durable Panel Construction: 120 half‑cut cells (6x20) provide better shade tolerance and a max system voltage of 1500V DC.
- Scalable Solar Array: Three panels give a total capacity of 1860W, with power tolerance of 0~+3W for reliable output.
- Future‑Ready Battery Option: Recommended 2×12V 200Ah deep‑cycle batteries support both lead‑acid and lithium chemistries for long‑term storage.
- Auto‑Sensing Frequency: Inverter automatically senses 50Hz or 60Hz, ensuring stable operation across different regions.
- Lightweight Panels: Each panel weighs 31.4 kg, simplifying installation and handling on rooftops.
Ideal For:
- Homeowners seeking reliable off‑grid backup power
- Small businesses requiring stable 230VAC supply
- Rural households with limited grid access
- Eco‑conscious users wanting high‑efficiency solar panels
- DIY solar enthusiasts planning a modular system
- Farmers needing power for irrigation pumps and lighting
- Remote cabins or holiday homes needing autonomous energy
Summary:
The GearUP 2KW Hybrid Solar Power Package combines a 2000W continuous inverter with three high‑efficiency 620W Jinko N‑Type panels, delivering up to 4000W peak power and >90% conversion efficiency. Its pure sine wave output, wide AC input range, and compact design make it ideal for homes, small businesses, and off‑grid locations across Bangladesh. Paired with a recommended 2×12V 200Ah battery bank, the system offers reliable backup and sustainable energy. Available now at Revolution Technology BD.
