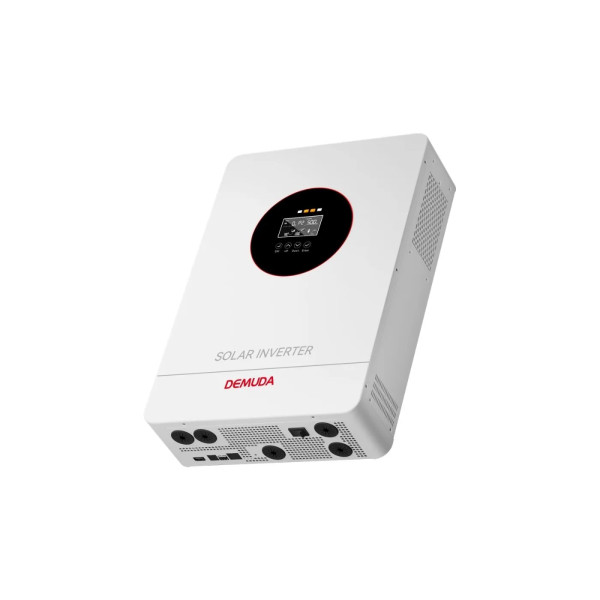

Demuda 2.2KVA Hybrid Solar Inverter
Contact us for pricing
Product Details
Key Features
High Power Output: Delivers a continuous 2000W (2000VA) rated power and 4000VA surge capacity for demanding loads.
Wide Input Voltage Range: Accepts 90–280VAC in normal mode and 170–280VAC in UPS mode, ensuring stable operation even with fluctuating grid voltage.
Fast Transfer Time: Switches to battery within 10ms in both normal and UPS modes, providing seamless backup without interruption.
Pure Sine Wave Output: Supplies clean 208/220/230/240VAC pure sine wave with >0.99 power factor for sensitive electronics.
Efficient Battery Mode: Achieves 90% efficiency in battery mode, maximizing stored energy usage.
Advanced MPPT Solar Charging: MPPT charger handles up to 3000W PV input, 18A current, and a voltage range of 30–400V for optimal solar harvest.
Robust Battery Compatibility: Supports both lithium and lead‑acid batteries with 12V system, 100A max charging current, and protective float/overcharge voltages.
User‑Friendly Interface: LCD display combined with RS485/USB connectivity allows easy monitoring and remote management.
Durable Build: IP20 rating, operating from -10°C to 50°C, humidity 5%–95%, and altitude up to 4000m ensures reliable performance in diverse Bangladeshi environments.
Compact and Lightweight: Weighs only 4.1 kg with dimensions 360×265×100 mm, making installation in homes or small businesses straightforward.
Model | DFHY2.2KVA-EU |
Rated Power | 2000W / 2000VA |
Surge Power | 4000VA |
AC Input Voltage | 230V (default) |
Voltage Range | 90–280VAC (Normal), 170–280VAC (UPS) |
Frequency | 50/60Hz (Auto Adaptive) |
AC Output Voltage | 208/220/230/240VAC |
Power Factor | >0.99 |
Transfer Time | 10ms (Normal), 10ms (UPS) |
Waveform | Pure Sine Wave |
Efficiency (Battery Mode) | 90% |
Solar Charger Type | MPPT |
Max PV Input Power | 3000W |
Max PV Input Current | 18A |
MPPT Voltage Range | 30–400V |
Max PV Open Circuit Voltage | 450V |
Max Charging Current | 100A |
Battery Voltage | 12V |
Float Voltage | 13.5V |
Overcharge Protection | 15V |
Battery Type | Lithium / Lead-acid |
Interface | LCD, RS485/USB |
IP Rating | IP20 |
Operating Temperature | -10°C to 50°C |
Humidity | 5%–95% |
Weight | 4.1 kg |
Dimensions | 360 × 265 × 100 mm |
Max Altitude | 4000m (derating above 1000m) |
Description
Demuda 2.2KVA Hybrid Solar Inverter
Key Features & Benefits:
- High Power Output: Delivers a continuous 2000W (2000VA) rated power and 4000VA surge capacity for demanding loads.
- Wide Input Voltage Range: Accepts 90–280VAC in normal mode and 170–280VAC in UPS mode, ensuring stable operation even with fluctuating grid voltage.
- Fast Transfer Time: Switches to battery within 10ms in both normal and UPS modes, providing seamless backup without interruption.
- Pure Sine Wave Output: Supplies clean 208/220/230/240VAC pure sine wave with >0.99 power factor for sensitive electronics.
- Efficient Battery Mode: Achieves 90% efficiency in battery mode, maximizing stored energy usage.
- Advanced MPPT Solar Charging: MPPT charger handles up to 3000W PV input, 18A current, and a voltage range of 30–400V for optimal solar harvest.
- Robust Battery Compatibility: Supports both lithium and lead‑acid batteries with 12V system, 100A max charging current, and protective float/overcharge voltages.
- User‑Friendly Interface: LCD display combined with RS485/USB connectivity allows easy monitoring and remote management.
- Durable Build: IP20 rating, operating from -10°C to 50°C, humidity 5%–95%, and altitude up to 4000m ensures reliable performance in diverse Bangladeshi environments.
- Compact and Lightweight: Weighs only 4.1 kg with dimensions 360×265×100 mm, making installation in homes or small businesses straightforward.
Ideal For:
- Homeowners seeking reliable backup power for essential appliances
- Small office owners needing uninterrupted UPS for computers and networking equipment
- Solar enthusiasts looking to integrate PV panels with battery storage
- Rural clinics requiring stable power for medical devices
- Educational institutions that want clean energy for labs and classrooms
- Remote construction sites needing portable, high‑capacity power
- Entrepreneurs setting up micro‑businesses with mixed grid and solar power
Summary:
The Demuda 2.2KVA Hybrid Solar Inverter offers 2000W continuous power, 4000VA surge capacity, and a pure sine wave output, making it ideal for homes and small businesses in Bangladesh. Its wide input voltage range, fast 10ms transfer time, and 90% battery efficiency ensure reliable backup and efficient solar charging up to 3000W. Built with a robust LCD interface, RS485/USB connectivity, and durable IP20 housing, it performs well across temperature and altitude variations. Available now at Revolution Technology BD, it caters to a broad range of users from homeowners to remote enterprises.
