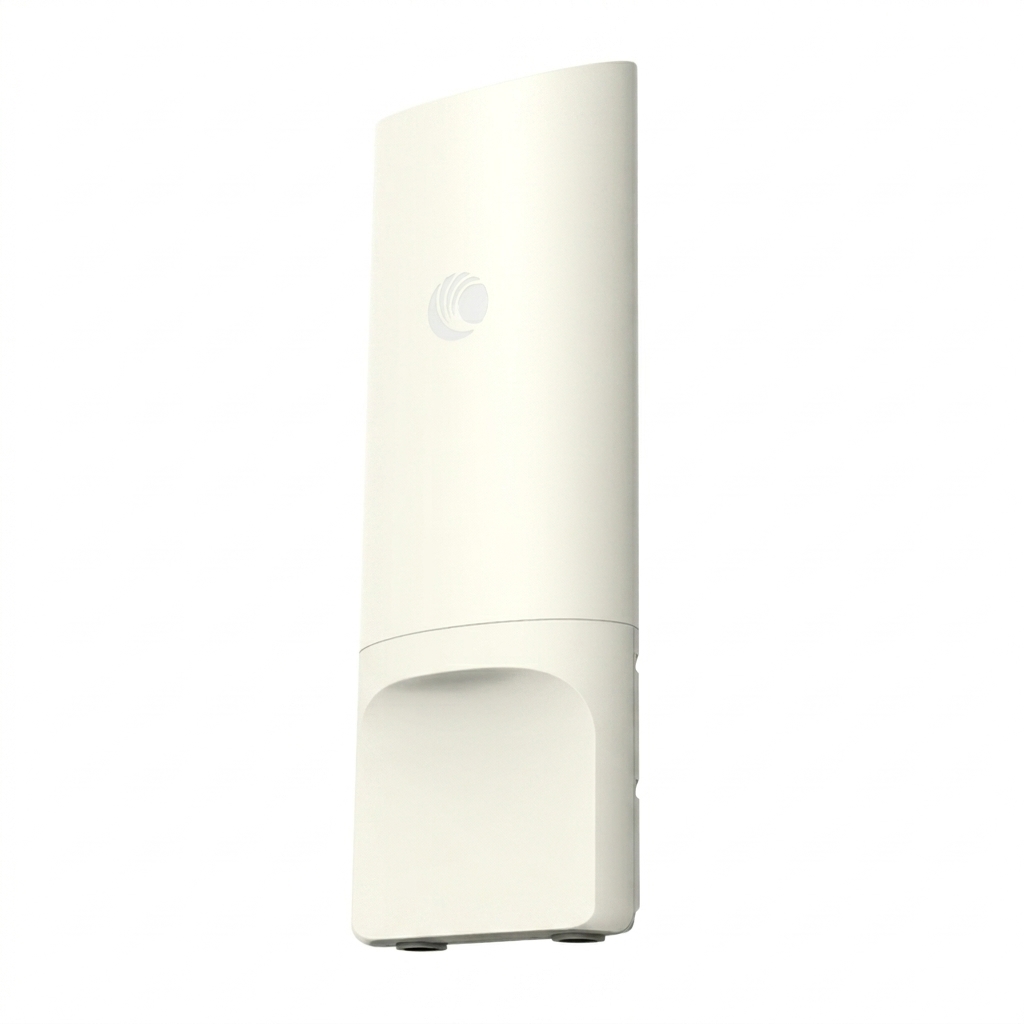

Cambium XV2-2T0 Wi-Fi 6 Outdoor Wireless Access Point
Contact us for pricing
Product Details
Key Features
Dual-Band Wi-Fi 6: Supports 5 GHz 802.11 a/n/ac/ax 2x2 and 2.4 GHz 802.11 b/g/n/ax 2x2 for high throughput and coverage.
Enterprise-Grade Security: Offers WPA3-SAE, WPA3-Enterprise, WPA2-PSK with CCMP, AES, and 802.1x/EAP for secure networks.
Robust Power Options: Max 20W power with 802.3at PoE, up to 50W auxiliary power, and 30V/48V passive PoE output up to 30W.
Weather‑Proof Design: Operates from -40ºC to 65ºC, 95% RH non‑condensing, with MTBF of 669,174 hours at 25ºC.
High‑Gain Antennas: 5 GHz 9.3 dBi omni and 2.4 GHz 5.3 dBi omni antennas for extended range.
Flexible Mounting: Pole or wall mounting with pole diameter 30–75 mm for versatile deployment.
Comprehensive Certifications: FCC, ISED, ETSI, ROW, Wi‑Fi Alliance, CE, EN 60601‑1‑2, IEC 62368‑1, and more for global compliance.
Advanced Wi‑Fi Features: Supports VHT MCS, 256/1024‑QAM, TWT, beamforming, LDPC, MU‑MIMO, and more for future‑proof performance.
Multi‑Color Status LEDs: Dimmable LEDs indicate status, power, and connectivity for easy monitoring.
Kensington Lock Slot: Adds physical security to prevent tampering or theft.
Radios 5 GHz | 802.11 a/n/ac/ax, 2x2 |
Radios 2.4 GHz | 802.11 b/g/n/ax, 2x2 |
BLE | 4.1 |
Power Max power | 20W, 802.3at powered device |
Auxiliary device power | Up to 50W |
Wi-Fi 802.11 a/b/g/n/ac/ax | Supported |
Dimensions | 582 mm x 200 mm x 80 mm (22.91 in x 7.87 in x 3.15 in) |
SSID Security | WPA3-SAE, WPA3-Enterprise, WPA2-PSK (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), OSEN, OWE, Open |
Weight | 2,700 g (5.95 lb) |
Security Kensington lock slot | Present |
Ports | 1 x IEEE 100/1000/2500 Mbps, 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 watts |
Mount Options | Pole or wall mounting, Pole diameter: Min 30 mm/max 75 mm |
Ambient Operation Temperature | -40ºC to 65ºC (-40ºF to 149ºF) |
Antenna Gain 5 GHz | 9.3 dBi, omni |
Antenna Gain 2.4 GHz | 5.3 dBi, omni |
Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
Max EIRP 5 GHz | 36 dBm |
Max EIRP 2.4 GHz | 33 dBm |
Humidity | 95% RH non-condensing |
MTBF 25ºC | 669,174 hours |
MTBF 65ºC | 206,739 hours |
Filter LTE Band | 38, 40 |
LEDs | Multi-color status LEDs, dimmable, on/off |
FCC Channels | Ch 1–11, 36–48, 52-64, 100–144, 149–165 |
ISED Channels | Ch 1–11, 36–48, 52-64, 100–116, 149–165 |
ETSI Channels | Ch 1–13, 36–64, 52-64, 100–140, 149-173 |
ROW Channels | Ch 1–14, 36–48, 52-64, 100–144, 149–177 |
Certifications | Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1, Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, EN 62311 Human Safety/RF Exposure, WEEE & RoHS |
Wi-Fi Protocols | VHT MCS rates, 16/64/256/1024-QAM, channel width support in 5 GHz: 20/40/80 MHz, TWT, Long OFDM Symbol, transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO |
Power Save | MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO |
IEEE 802.11 | a/ac/ax/b/d/e/g/h/i/k/n/r/u/v/w |
Description
Cambium XV2-2T0 Wi-Fi 6 Outdoor Wireless Access Point
Key Features & Benefits:
- Dual-Band Wi-Fi 6: Supports 5 GHz 802.11 a/n/ac/ax 2x2 and 2.4 GHz 802.11 b/g/n/ax 2x2 for high throughput and coverage.
- Enterprise-Grade Security: Offers WPA3-SAE, WPA3-Enterprise, WPA2-PSK with CCMP, AES, and 802.1x/EAP for secure networks.
- Robust Power Options: Max 20W power with 802.3at PoE, up to 50W auxiliary power, and 30V/48V passive PoE output up to 30W.
- Weather‑Proof Design: Operates from -40ºC to 65ºC, 95% RH non‑condensing, with MTBF of 669,174 hours at 25ºC.
- High‑Gain Antennas: 5 GHz 9.3 dBi omni and 2.4 GHz 5.3 dBi omni antennas for extended range.
- Flexible Mounting: Pole or wall mounting with pole diameter 30–75 mm for versatile deployment.
- Comprehensive Certifications: FCC, ISED, ETSI, ROW, Wi‑Fi Alliance, CE, EN 60601‑1‑2, IEC 62368‑1, and more for global compliance.
- Advanced Wi‑Fi Features: Supports VHT MCS, 256/1024‑QAM, TWT, beamforming, LDPC, MU‑MIMO, and more for future‑proof performance.
- Multi‑Color Status LEDs: Dimmable LEDs indicate status, power, and connectivity for easy monitoring.
- Kensington Lock Slot: Adds physical security to prevent tampering or theft.
Ideal For:
- Large enterprise outdoor Wi‑Fi deployments
- Municipal Wi‑Fi networks
- Campus and university campuses
- Retail chain outdoor coverage
- Public safety and emergency services
- Industrial facilities with harsh environments
- Event venues requiring high‑capacity wireless
