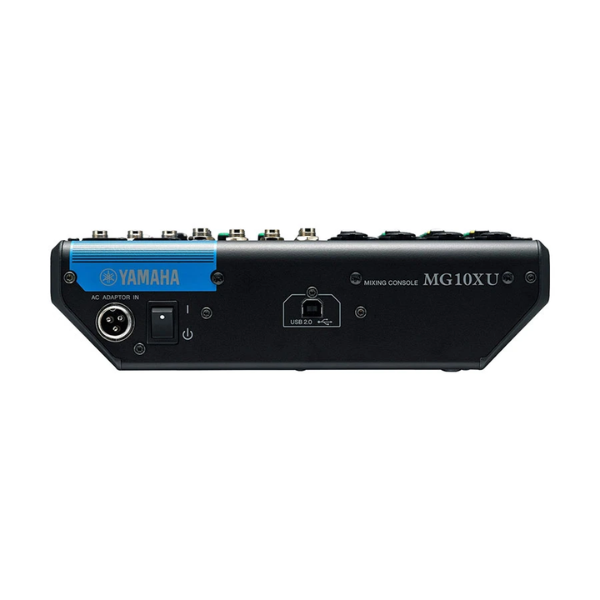

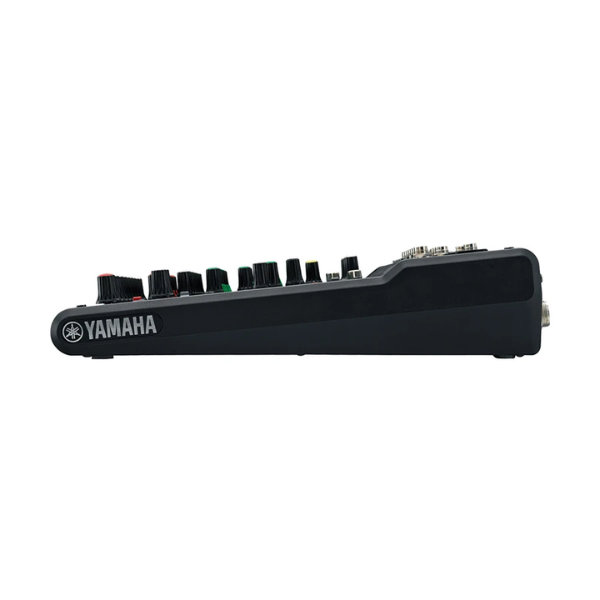

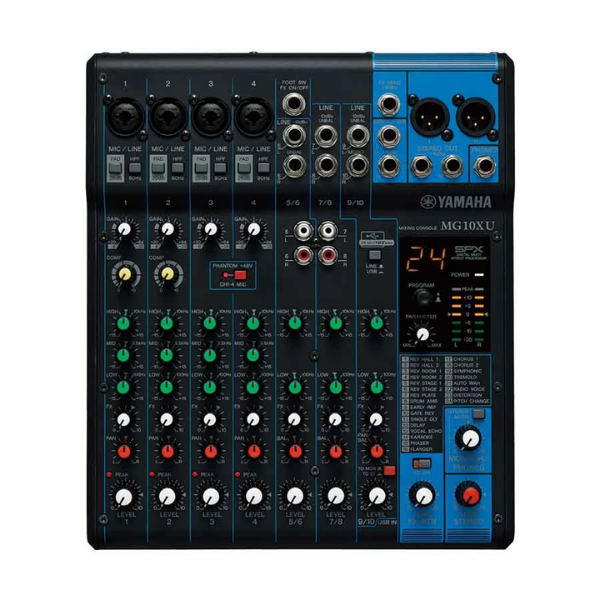

Yamaha MG10XU 10-Input Mixer with Built-In FX and USB

৳ 44,000

Exclusive of all taxes

Genuine Product Fast Delivery Easy Returns

KEY FEATURES

Channels: 10-Input Mixing Console (4 mono + 3 stereo)

Preamps: "D-PRE" mic preamps with inverted Darlington circuit for transparent sound

Effects: Built-in SPX digital effects with 24 high-grade programs (reverb, delay, chorus, flanger, phaser, etc.)

USB Audio: 24-bit / 192kHz 2-in / 2-out USB audio interface

Compression: 1-Knob compressors on mono inputs for easy dynamics control

EQ: 3-band EQ on mono channels (HIGH: 10kHz shelving, MID: 2.5kHz peaking, LOW: 100Hz shelving)

Phantom Power: +48V switchable phantom power for condenser microphones

PAD Switch: 26dB attenuation switch on mono inputs for handling high-level sources

Inputs: 4x Combo mic/line inputs, 6x 1/4" line inputs (3 stereo pairs)

Outputs: XLR balanced stereo out, TRS monitor out, 1/4" headphone out with level control

Bus: 1 Stereo Bus, 1 AUX (incl. FX)

High-Pass Filter: 80Hz, 12dB/octave on mono inputs

iPad Compatible: Works with iPad (2 or later) via Camera Connection Kit

Software: Includes Cubase AI DAW download version

Construction: Durable metal chassis

Dimensions: 244 mm x 71 mm x 294 mm (9.6" x 2.8" x 11.6")

Weight: 2.1 kg (4.63 lbs)

SPECIFICATION

Feature	Specification
Brand	Yamaha
Model	MG10XU
Type	10-Channel Analog Mixing Console with Built-in USB Interface
Input Channels	Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
Mono Inputs	4x Combo XLR-1/4" (Mic/Line) with PAD switch
Stereo Inputs	3x Stereo Line inputs (6x 1/4" TRS)
Bus System	1 Stereo Bus, 1 AUX (incl. FX)
Mic Preamps	"D-PRE" with inverted Darlington circuit
Phantom Power	+48V switchable
PAD Switch	26dB attenuation on mono inputs
High-Pass Filter	80Hz, 12dB/octave on mono inputs
EQ (Mono Channels)	3-band EQ: • HIGH: +15dB/-15dB, 10kHz shelving • MID: +15dB/-15dB, 2.5kHz peaking • LOW: +15dB/-15dB, 100Hz shelving
Compressors	1-Knob compressors on mono inputs (Threshold: +22dBu to -8dBu, Ratio: 1:1 to 4:1)
Built-in Effects	SPX digital effects with 24 programs (reverb, delay, chorus, flanger, phaser, tremolo, auto-wah, distortion)
On-board Processor	SPX algorithm, PARAMETER control, FOOT SW: 1 (FX RTN CH on/off)
USB Audio	2-in / 2-out, 24-bit / 192kHz, USB Class 2.0 compliant
Outputs	• STEREO OUT: 2x XLR balanced • MONITOR OUT: 2x TRS 1/4" • AUX SEND: 1x TRS 1/4" • PHONES: 1x 1/4" stereo
PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter	2x 7-segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
Total Harmonic Distortion	0.02% @ +14dBu (20Hz-20kHz), GAIN knob: Min
Frequency Response	+0.5dB/-0.5dB (20Hz-20kHz), refer to nominal output level @ 1kHz, GAIN knob: Min
Equivalent Input Noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual Output Noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk	-83 dB
Power Supply	PA-10 AC adapter (AC 38 VCT, 0.62A, Cable length 3.6m) or equivalent recommended by Yamaha
Power Consumption	22.9 W
Dimensions (W×H×D)	244 mm × 71 mm × 294 mm (9.6" × 2.8" × 11.6")
Net Weight	2.1 kg (4.63 lbs.)
Chassis Material	Metal chassis
Country of Origin	Malaysia
Included Accessories	AC Adapter (PA-10), Owner's Manual, Cubase AI DAW software download version
Compatibility	iPad (2 or later) via Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter (not included)
Warranty	No Warranty (As per Star Tech Bangladesh)

DESCRIPTION

Yamaha MG10XU 10-Input Mixer with Built-In FX and USB

The Yamaha MG10XU is a premium 10-channel analog mixing console that combines studio-grade components with an intuitive interface, delivering transparent, high-fidelity sound for live performance and recording applications . As part of Yamaha's renowned MG Series, this mixer embodies superior craftsmanship and incorporates technologies developed for high-end professional consoles .

Superior Preamplifiers: At the heart of the MG10XU are four "D-PRE" mic preamps featuring an inverted Darlington circuit design . These studio-quality preamps deliver natural, rich bass and smooth, non-aggressive highs, extracting every detail from your microphones . The preamps are complemented by switchable +48V phantom power, making them compatible with both dynamic and condenser microphones .

Professional Audio Quality: The MG10XU utilizes high-quality operational amplifiers that ensure your mix sounds transparent and articulate . With a frequency response of +0.5dB/-0.5dB from 20Hz to 20kHz and extremely low distortion (0.02% THD), this mixer delivers exceptional audio fidelity suitable for critical recording and live sound applications .

Built-In Digital Effects: The mixer features a built-in SPX digital effects processor with 24 high-grade programs, including reverbs, delays, choruses, flangers, phasers, tremolo, auto-wah, and distortion . Each channel has a dedicated FX bus send level, and the overall effect level is controlled by a master FX return control, allowing you to enhance vocals and instruments with professional-quality processing .

Channel Features: Each of the four mono input channels is equipped with a 26dB PAD switch for handling high-level sources like guitar amplifiers, a 3-band EQ with carefully selected frequency centers (HIGH: 10kHz shelving, MID: 2.5kHz peaking, LOW: 100Hz shelving), and an 80Hz high-pass filter to eliminate unwanted low-frequency rumble . A 1-knob compressor on each mono channel provides easy, one-touch dynamics control, automatically setting optimal compression parameters .

USB Connectivity: The MG10XU functions as a 2-in/2-out USB audio interface operating at up to 24-bit/192kHz resolution, allowing direct connection to your computer for recording and playback . It is compatible with iPad (2 or later) through the Apple iPad Camera Connection Kit or Lightning to USB Camera Adapter, making it a versatile solution for mobile recording . The mixer includes a downloadable version of Cubase AI DAW software to start recording immediately .

Versatile Connectivity: The mixer provides extensive I/O options including 4 combo mic/line inputs, 6 line inputs (configured as 3 stereo pairs), stereo XLR balanced outputs, TRS monitor outputs, an AUX send, and a dedicated headphone output with level control . This flexibility makes it suitable for connecting to PA systems, powered speakers, amplifiers, or digital recorders .

Rugged Construction: Housed in a durable metal chassis, the MG10XU is built to withstand the rigors of both studio and stage use . Its compact dimensions (244mm x 71mm x 294mm) and lightweight design (2.1kg) make it highly portable for on-the-go applications .

Applications: Whether you're a musician, podcaster, content creator, or live sound engineer, the Yamaha MG10XU delivers exceptional performance for diverse applications including live performances, lectures, recordings, home studios, and installed sound systems .

Price in Bangladesh: The Yamaha MG10XU 10-Input Mixer with Built-In FX and USB is available at Star Tech in Bangladesh at a price of ৳42,500 .
