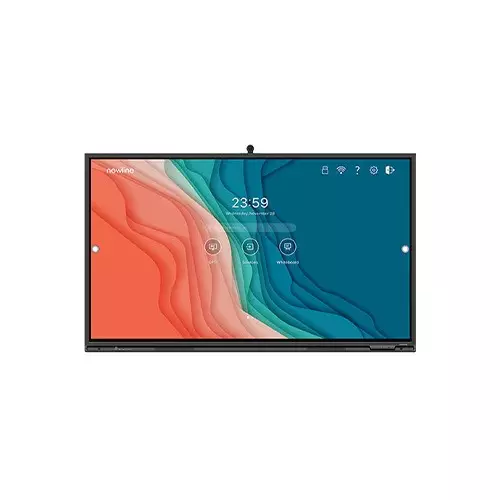

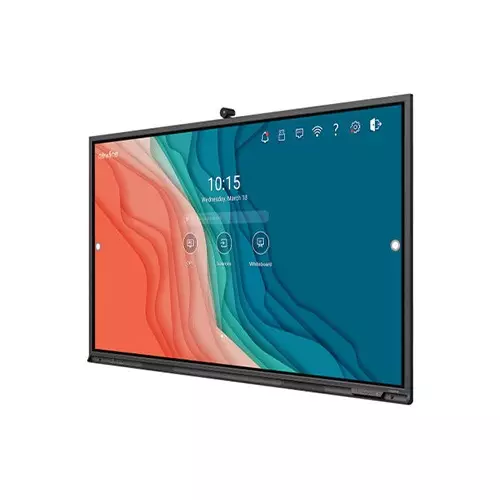

Newline TT-8623QCA+ 86-inch Education Interactive Flat Panel

Genuine Product Fast Delivery Easy Returns

Key Features

AI-powered Whiteboard: The Newline TT-8623QCA+ comes with an AI-powered whiteboard that supports handwriting recognition in English and Bengali, making it easy to create and share content.

4K UHD Display: The 86-inch 4K UHD display offers a resolution of 3840 x 2160 with 10-bit color, 550 cd/m² brightness, 15000:1 contrast ratio, and a 178° wide viewing angle.

20-point Touch: The display supports up to 20-point touch with fast 4ms response time and 7H hardness for smooth writing and collaboration.

Integrated 4K AI Camera: The Newline TT-8623QCA+ comes with an integrated 4K AI camera with 120° FOV, e-PTZ, and an 8-array microphone with beamforming and noise cancellation.

Smart Cast and Collaboration: The display allows up to four devices to connect at once, supporting Windows, Mac, iOS, and Android.

Display Join: Teachers can create their own profile (5 User, 1 Admin & 1 guest) and students can connect from anywhere in the world with Display Join, supporting up to 70 participants.

Google Play EDLA Certified: The display is Google Play EDLA certified, ensuring a seamless user experience.

TÜV Rheinland Certified: The Newline TT-8623QCA+ is TÜV Rheinland certified for low blue light and flicker-free viewing.

Android System: The display comes with a built-in Android system that includes an AI-powered whiteboard, 3D simulation models, and direct access to Google search, YouTube, and Google Classroom.

Connectivity Options: The Newline TT-8623QCA+ comes with a range of connectivity options, including HDMI, USB-C, USB 3.0, RJ45, RS232, SPDIF, OPS slot, and more.

Wall Mount and Accessories: The display comes with a wall mount, stylus, remote, and a 3-year brand warranty.

Multiple Profiles: Teachers can create their own profile (5 User, 1 Admin & 1 guest) and students can connect from anywhere in the world with Display Join, supporting up to 70 participants.

Specification

Model Name	TT-8623QCA+
Brand	Newline
Active Screen Size (inch)	86
Display Area	1894 x 1065 mm
Display Resolution	3840*2160
Display Ratio	16:9
Display Colors	10-bit
LCD Brightness	550cd/m2
Contrast Ratio (Typical)	15000:1
Response Time (Typical)	4ms
Viewing Angle	178°
Lifetime (working hours)	50,000 hours
Touch Sensor	IR/PCAP
Surface material of touch surface	Anti-Glare+Anti-Fingerprint + Antimicrobial Tempered Glass
TOUCH Response time	4ms
Surface Hardness	7H
Touch Points	20 points
Speaker Output	2x20 Watts + Subwoofer 18W x1
Storage Temperature/Humidity	-20~60°C 0~90%RH (non-condensing)
Working Temperature/Humidity	0~40°C 20~80%RH (nons-condensing)
Android Version	Minimum Android 15 EDLA
CPU	OCTA Core
GPU	OCTA Core G610 MC4
RAM	16GB DDR4
ROM	256GB
Inbuilt Camera FOV	120°
Working Voltage	AC100-240V
Power Consumption	550W (ECO Mode) & Standby mode <0.5W

Description

Newline TT-8623QCA+ 86-inch Education Interactive Flat Panel

Key Features & Benefits:

AI-powered Whiteboard: The Newline TT-8623QCA+ comes with an AI-powered whiteboard that supports handwriting recognition in English and Bengali, making it easy to create and share content.
4K UHD Display: The 86-inch 4K UHD display offers a resolution of 3840 x 2160 with 10-bit color, 550 cd/m² brightness, 15000:1 contrast ratio, and a 178° wide viewing angle.
20-point Touch: The display supports up to 20-point touch with fast 4ms response time and 7H hardness for smooth writing and collaboration.
Integrated 4K AI Camera: The Newline TT-8623QCA+ comes with an integrated 4K AI camera with 120° FOV, e-PTZ, and an 8-array microphone with beamforming and noise cancellation.
Smart Cast and Collaboration: The display allows up to four devices to connect at once, supporting Windows, Mac, iOS, and Android.
Display Join: Teachers can create their own profile (5 User, 1 Admin & 1 guest) and students can connect from anywhere in the world with Display Join, supporting up to 70 participants.
Google Play EDLA Certified: The display is Google Play EDLA certified, ensuring a seamless user experience.
TÜV Rheinland Certified: The Newline TT-8623QCA+ is TÜV Rheinland certified for low blue light and flicker-free viewing.
Android System: The display comes with a built-in Android system that includes an AI-powered whiteboard, 3D simulation models, and direct access to Google search, YouTube, and Google Classroom.
Connectivity Options: The Newline TT-8623QCA+ comes with a range of connectivity options, including HDMI, USB-C, USB 3.0, RJ45, RS232, SPDIF, OPS slot, and more.
Wall Mount and Accessories: The display comes with a wall mount, stylus, remote, and a 3-year brand warranty.
Multiple Profiles: Teachers can create their own profile (5 User, 1 Admin & 1 guest) and students can connect from anywhere in the world with Display Join, supporting up to 70 participants.

Ideal For:

Educational institutions
Corporate training sessions
Meetings and presentations
Collaborative projects
Online classes and webinars
Digital signage
Interactive learning experiences

Summary:

The Newline TT-8623QCA+ 86-inch Education Interactive Flat Panel is designed to deliver a powerful classroom and meeting experience. With its AI-powered whiteboard, 4K UHD display, and integrated 4K AI camera, this display is ideal for educational institutions, corporate training sessions, and collaborative projects. The display comes with a range of connectivity options, including HDMI, USB-C, USB 3.0, RJ45, RS232, SPDIF, OPS slot, and more. The Newline TT-8623QCA+ is available at Revolution Technology BD and comes with a 3-year brand warranty.
